The Hager internal corner for LF/LFF 60x57 mm trunking provides neat, halogen-free cable routing at inside corners. Its 83-97° adjustable angle and overlapping design absorb wall tolerances for a clean finish. Click mounting speeds installation. ABS, traffic white RAL9016, IK07 impact rated, -5 to 60 °C. Compatible with LFF 60x60 series.
EAN
4012740013277
Packaging
1 Piece
Internal corner halogen-free LF/LFF 40x110 Click mounting IK07 RAL9016 LFF6006049016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range83 - 97
Dimensions
-
Height60 mm
-
Width57 mm
-
Measurement a135 mm
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
Connectivity
-
Mounting typeClick mounting
-
Related SeriesLFF 60x60
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

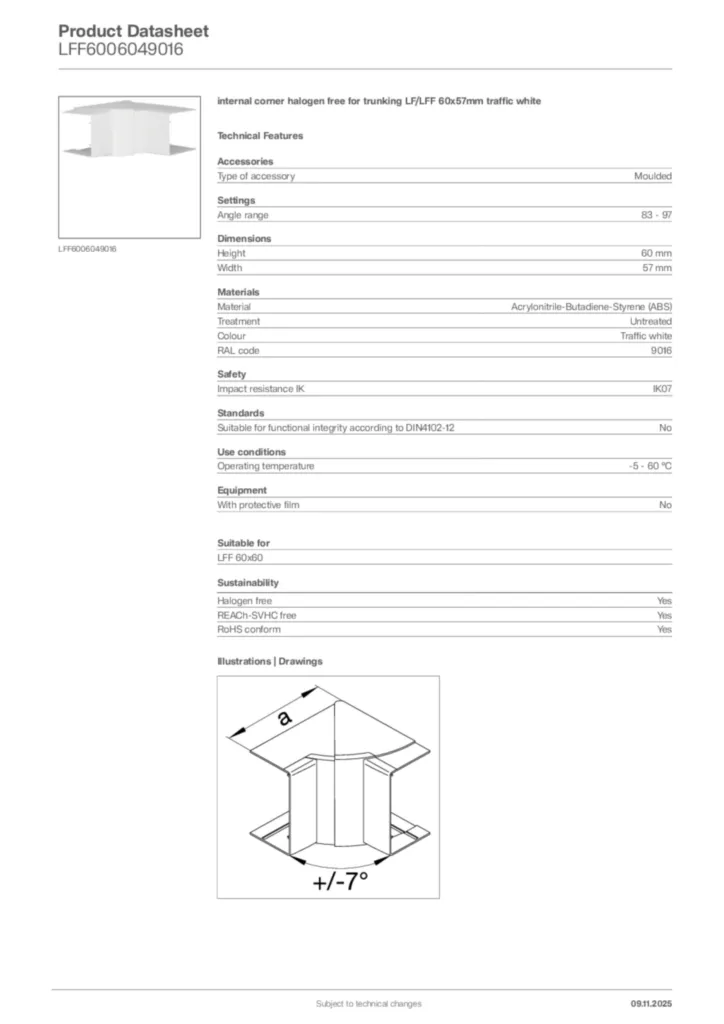

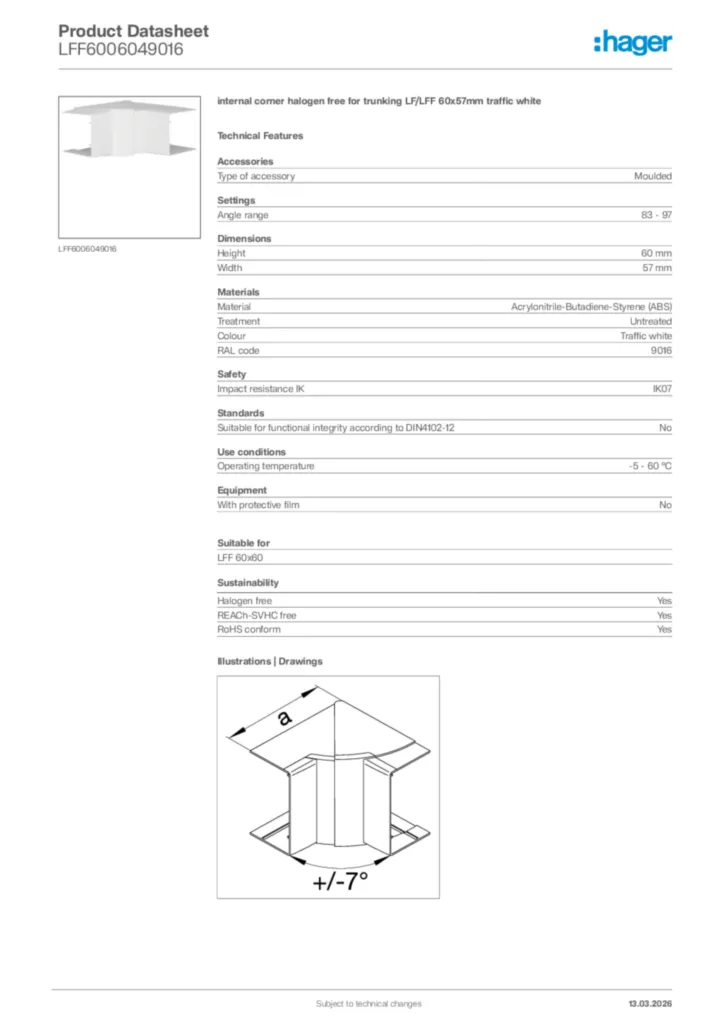

Product datasheet
Hager Product data sheet LFF6006049016
internal corner halogen free for trunking LF/LFF 60x57mm traffic white
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
Declaration of conformity International 2022-03-10
PDF530,67 kB
Declaration of conformity en-GB 2026-08-07
PDF334,89 kB
Declaration of conformity en-GB 2026-09-30
PDF438,98 kB
