The Hager external corner, halogen‑free, for LF/LFF 60x57 mm trunking in traffic white (RAL 9016), provides a neat, safe outside corner finish and cable protection. Moulded ABS with IK07 impact resistance, operating −5 to 60 °C. Adjustable 83-97° with overlapping design to hide cuts and tolerances. Quick click mounting speeds installation. Fits LFF 60x60 series. Measurement a: 38 mm.

EAN

4012740013260

Packaging

1 Piece

Trunking LFF 60x60mm PVC 2m Pre-coupled IK07 IP40 Traffic White +2 clips LFF6006039016

Technical properties
Environmental value
Documentations
More products

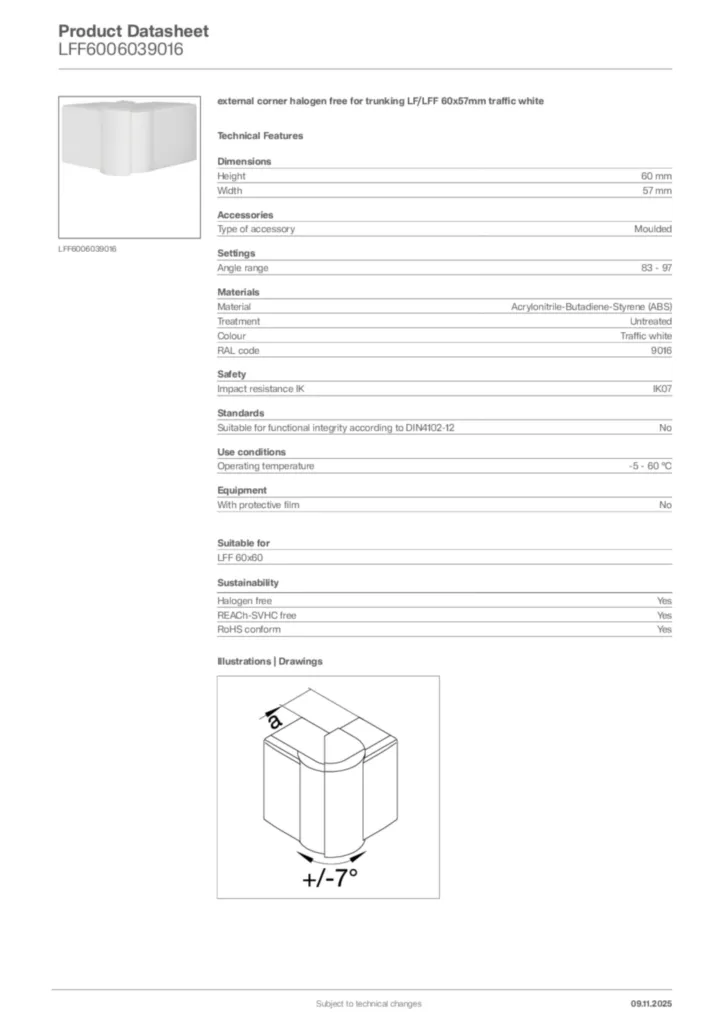

Download the data sheet

Technical properties

Height

60 mm
Width

57 mm
Measurement a

38 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 60x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
