The Hager internal corner, halogen‑free, for LF/LFF 40x110 trunking in stone grey (RAL7030) delivers neat, safe cable transitions at inside corners. Click mounting and overlapping design enable fast, seamless fitting; angle adjustable 83-97° to suit uneven walls. ABS construction with IK07 impact resistance. Dimensions 40×110 mm (A=115). Operating -5 to 60°C. Ideal for residential and commercial trunking runs.

EAN

4012740022644

Packaging

1 Piece

Internal corner halogen-free LF/LFF 30x57mm click-mount Stone Grey IK07 LFF4011047030

Technical properties
Environmental value
Documentations
More products

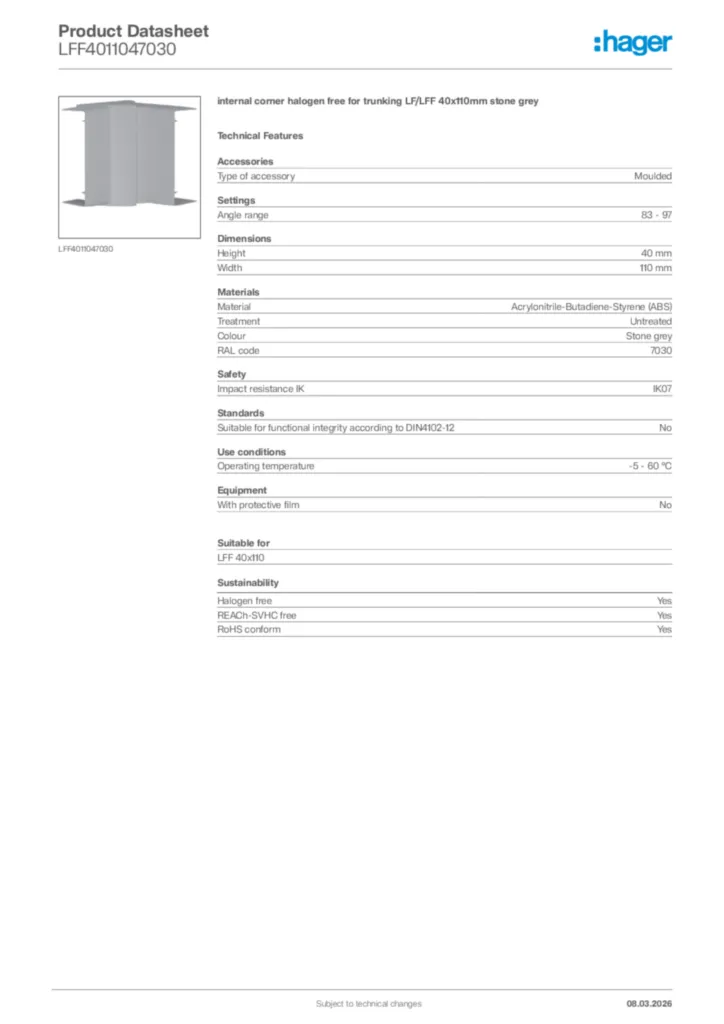

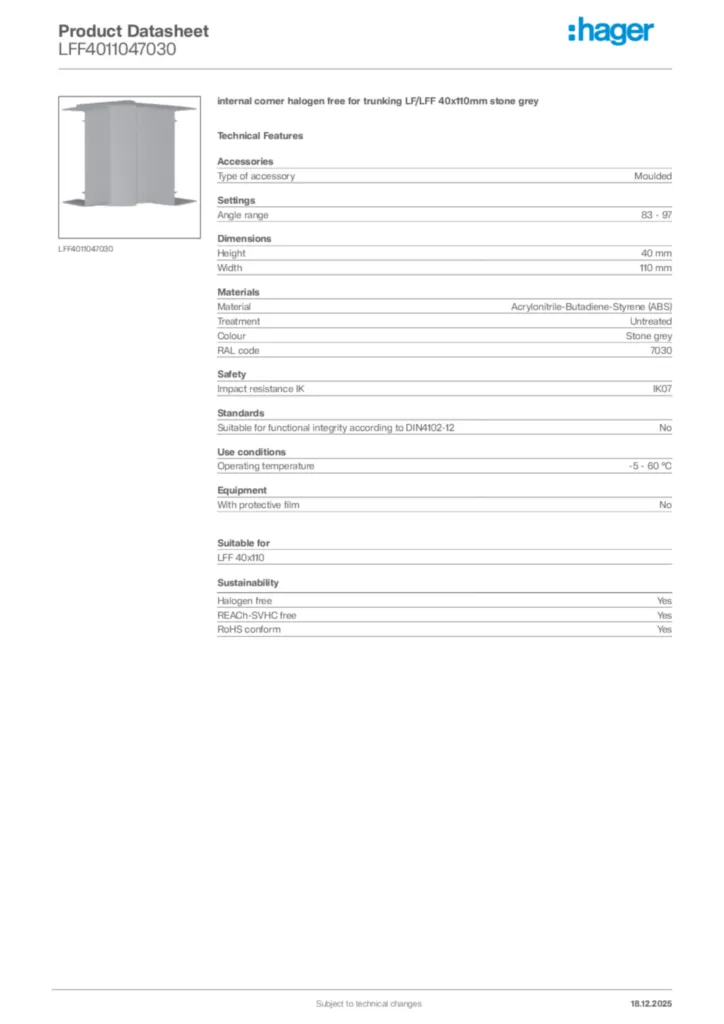

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

83 - 97

Height

40 mm
Width

110 mm
Measurement a

115 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 40x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
