Hager external corner, halogen-free, for LF/LFF 40×110 mm trunking in stone grey (RAL7030), ensures neat, safe cable routing at external angles. Moulded ABS with IK07 impact resistance and -5…60°C rating. Adjustable 83-97° with overlapping design for a clean finish. Quick click mounting speeds installation. Dimensions 40×110 mm (a=68 mm). Ideal for coordinated LFF 40×110 runs.

EAN

4012740022620

Packaging

1 Piece

90° external corner halogen-free trunking 30x45mm Stone Grey RAL7030 IK07 LFF4011037030

Technical properties
Environmental value
Documentations
More products

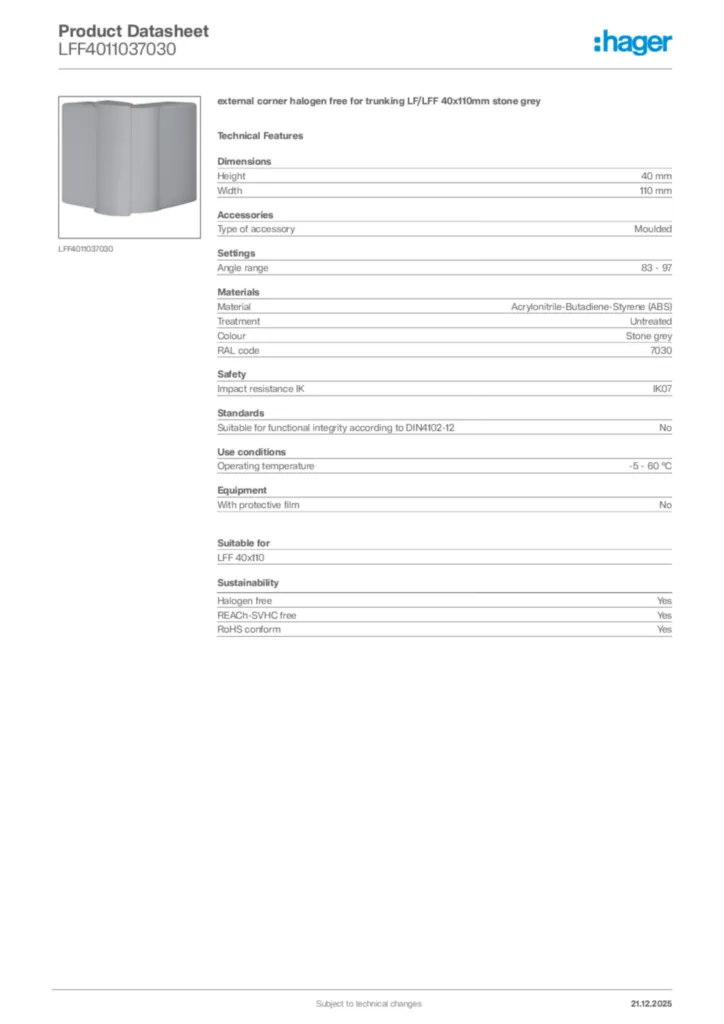

Download the data sheet

Technical properties

Height

40 mm
Width

110 mm
Measurement a

68 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 40x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
