The Hager flat angle, overlapping, halogen‑free fitting for LF/LFF 40x90 mm trunking (stone grey RAL7030) ensures neat, secure corner transitions. Moulded ABS with IK07 impact resistance, adjustable angle 83-97°, measurement a=128 mm. Operating -5 to 60°C. The overlap design maintains continuity and cable protection, delivering a clean finish for residential and commercial installations.

EAN

4012740022606

Packaging

1 Piece

Flat angle overlapping halogen-free LF/LFF 60x110mm 83-97° Stone Grey LFF4009057030

Technical properties
Environmental value
Documentations
More products

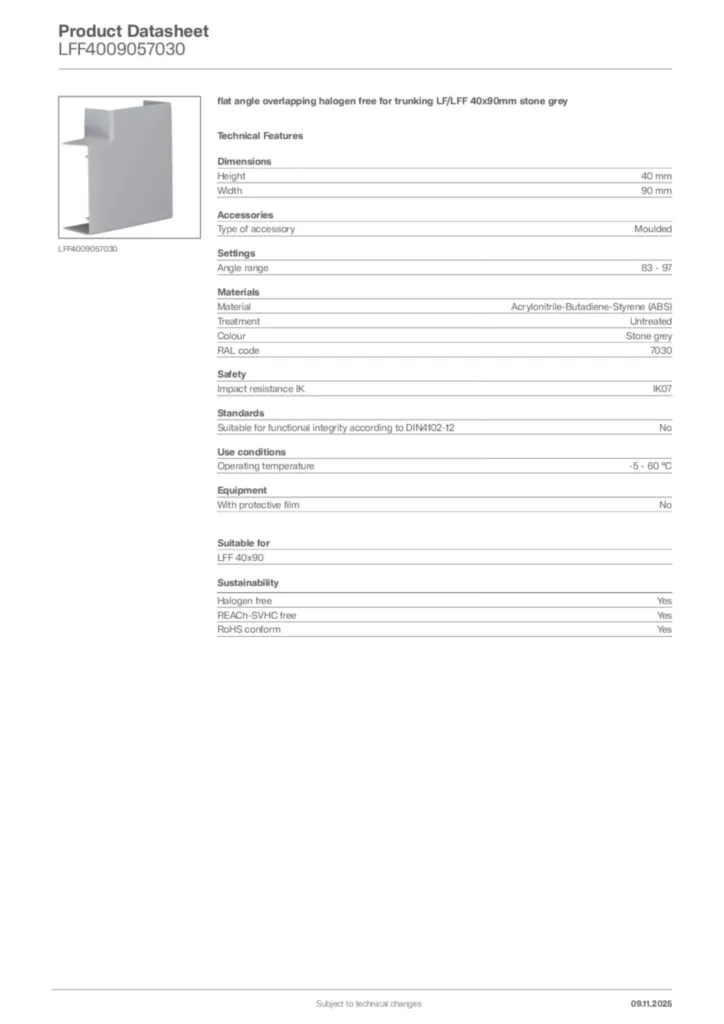

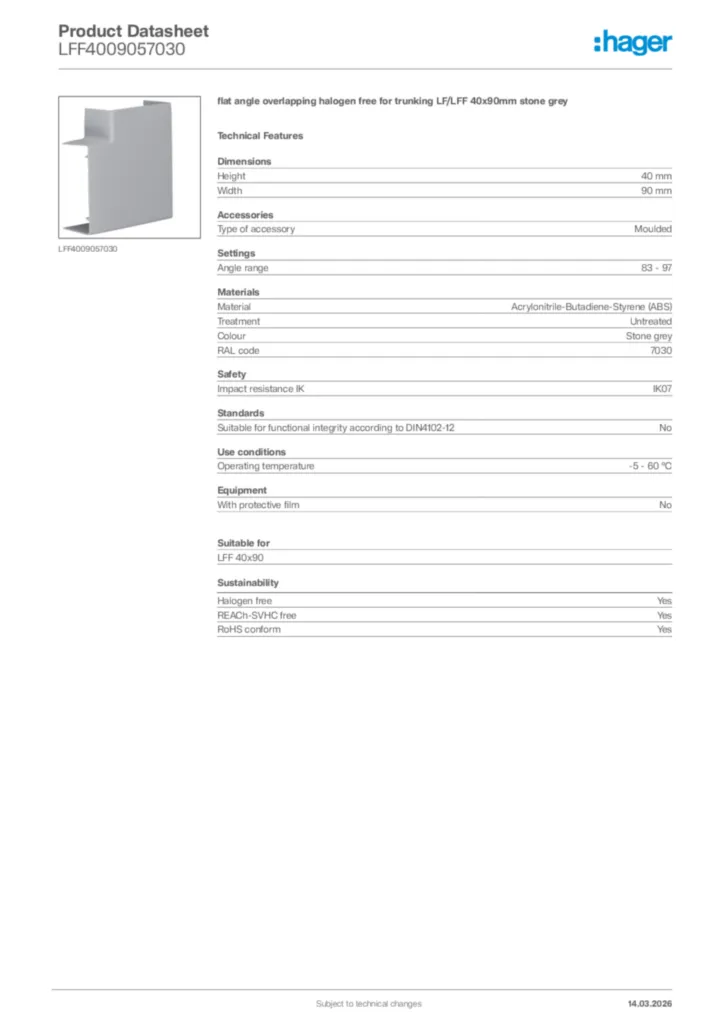

Download the data sheet

Technical properties

Height

40 mm
Width

90 mm
Measurement a

128 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 40x90

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
