The Hager internal corner, halogen free, for LF/LFF 40x90 trunking in traffic white (RAL9016) provides a neat, safe inside bend for cable runs. Moulded PC-ABS with IK07 impact resistance, adjustable 83-97° angle and overlapping design hide cuts and tolerances. Click mounting speeds installation. Size 40x90 mm, measure “a” 115 mm. Operating -5 to 60°C. Ideal for residential and commercial trunking.
EAN
4012740013185
Packaging
1 Piece
Internal corner Halogen Free 40x57mm for LF/LFH trunking, Click Mount, RAL9016 LFF4009049016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range83 - 97
Dimensions
-
Height40 mm
-
Width90 mm
-
Measurement a115 mm
Materials
-
MaterialPC-ABS
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
Connectivity
-
Mounting typeClick mounting
-
Related SeriesLFF 40x90
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

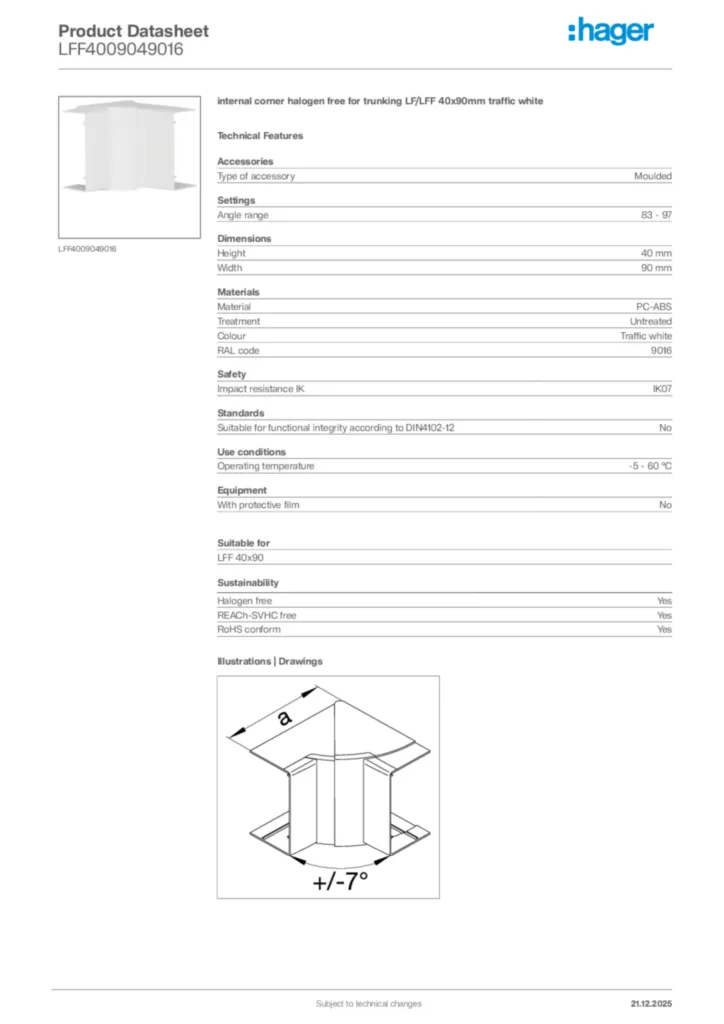

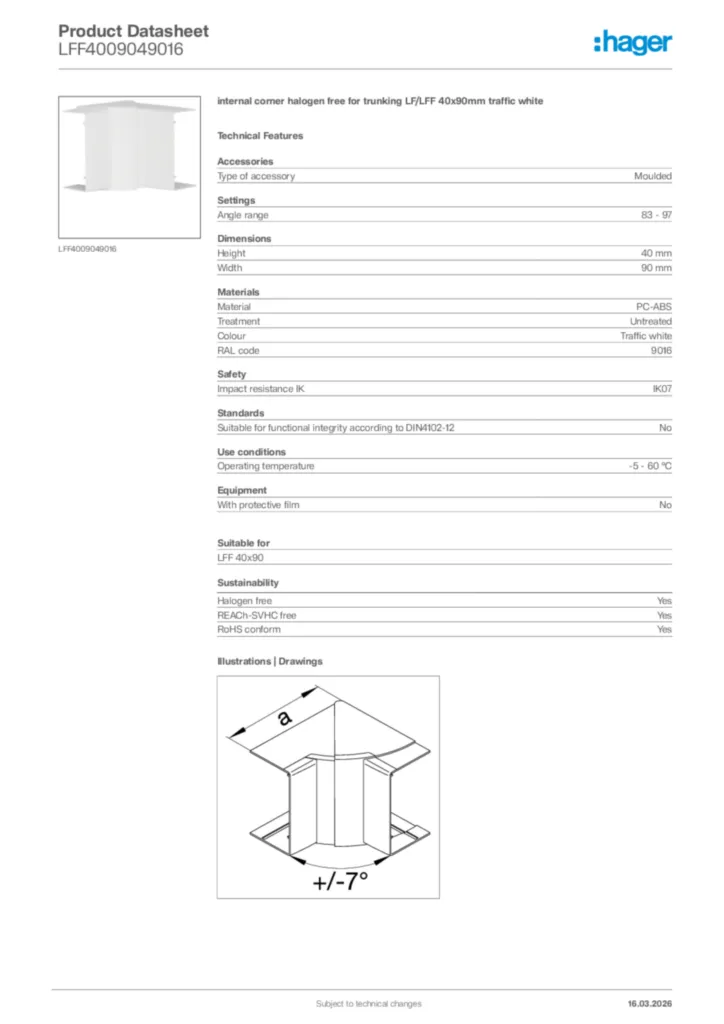

Product datasheet
