    • Home
    • Catalog
    • Cable routing and room connec­tion systems
    • Cable trunking systems
    • Cable trunking systems - LF
    • LFF4009037030
    The Hager external corner for LF/LFF 40x90 halogen-free trunking enables neat, safe 90° transitions on cable runs. Made of ABS in stone grey (RAL 7030), it offers IK07 impact resistance and an adjustable 83-97° angle for alignment. Overlapping design hides cuts; click mounting speeds installation. Operates from -5 to 60°C. Ideal for LFF 40x90 trunking in commercial and residential layouts.
    EAN
    4012740022569
    Packaging
    1 Piece
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    External corner halogen-free for trunking LF/FB 60x150mm stone grey RAL7030 IK07 LFF4009037030

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    External corner halogen-free for trunking LF/FB 60x150mm stone grey RAL7030 IK07

    LFF4009037030

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimen­sions
    • Height
      40 mm
    • Width
      90 mm
    • Meas­ure­ment a
      68 mm
    Accessories
    • Type of accessory
      Moulded
    Settings
    • Angle range
      83 - 97
    Mater­ials
    • Material
      Acryloni­trile-Butadiene-Styrene (ABS)
    • Treat­ment
      Untreated
    • Colour
      Stone grey
    • RAL code
      7030
    Safety
    • Impact resist­ance IK
      IK07
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Equip­ment
    • With protective film
      No
    Config­ur­a­tion
    • Over­lap­ping
      Yes
    Connectivity
    • Mounting type
      Click mounting
    • Related Series
      LFF 40x90

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    REACH declaration LFF4009037030
    PDF
    RoHS report LFF4009037030
    PDF

    Downloads

    • Image LFF4009037030 | Hager Africa

      Product Image LFF4009037030

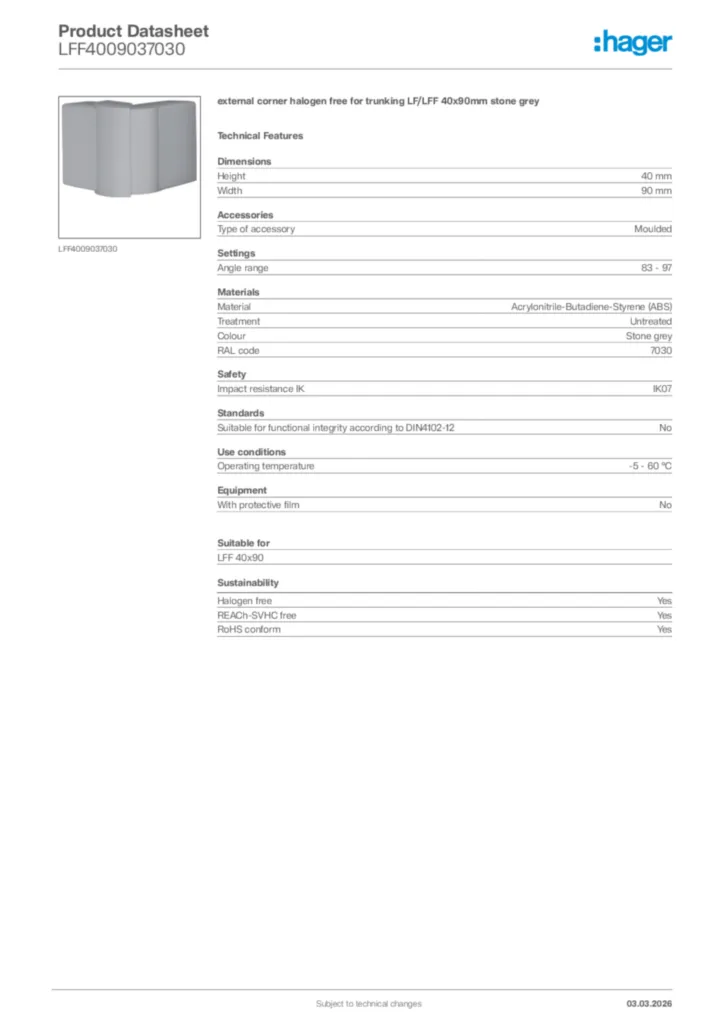

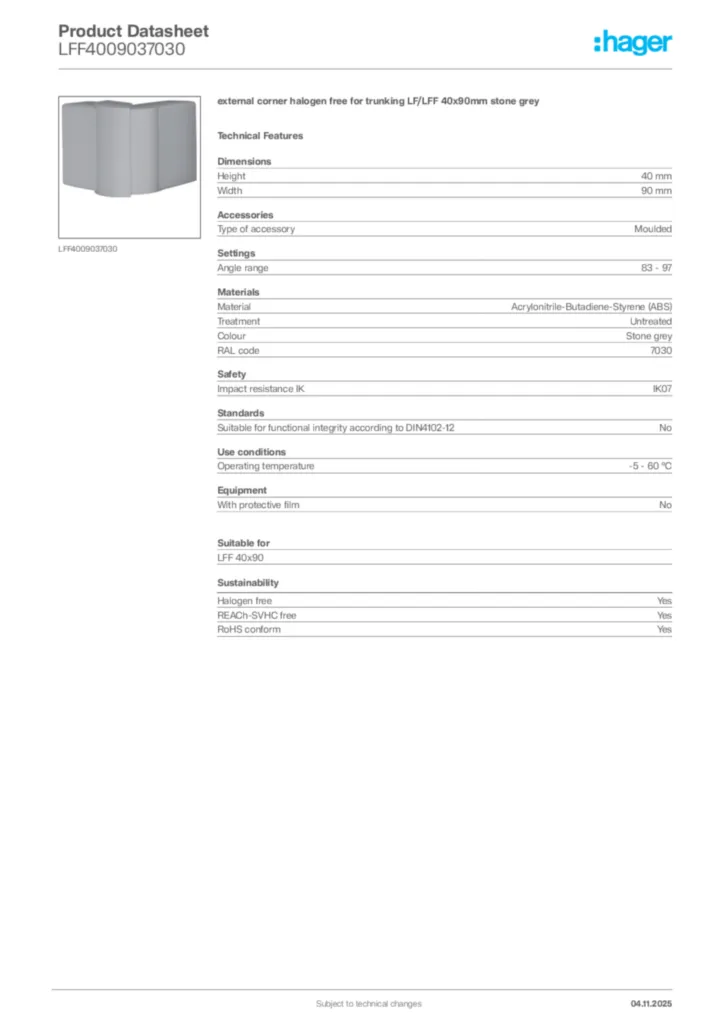

    • Product datasheet

      Image Hager Product data sheet LFF4009037030 | Hager Africa

      Hager Product data sheet LFF4009037030

      external corner halogen free for trunking LF/LFF 40x90mm stone grey

      PDF

    • Product licence

      Image Product_Licence_NF004_1074_LFF | Hager Africa

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • Declaration of conformity

      Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

      EU-Declaration LFF T045A FR_EN 26072019

      Declaration of conformity International 2020-06-25

      PDF
      48,04 kB
      Image T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE | Hager Africa

      T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE

      Declaration of conformity International 2023-02-07

      PDF
      52,28 kB
