Hager internal corner, halogen-free, for LF 40x57 mm trunking in stone grey (RAL7030), provides a neat, safe inside bend. Adjustable 83-97 deg with overlapping design to hide cuts, it installs fast via click mounting. ABS, IK07 impact resistant, 40x57x115 mm, operating -5 to 60°C. Compatible with LFF 40x60. Ideal for clean, low-smoke cable routing in residential and commercial installations.

EAN

4012740022484

Packaging

1 Piece

Internal corner for LF/FB trunking 60x190mm halogen free RAL7030 IK07 LFF4006047030

Technical properties
Environmental value
Documentations
More products

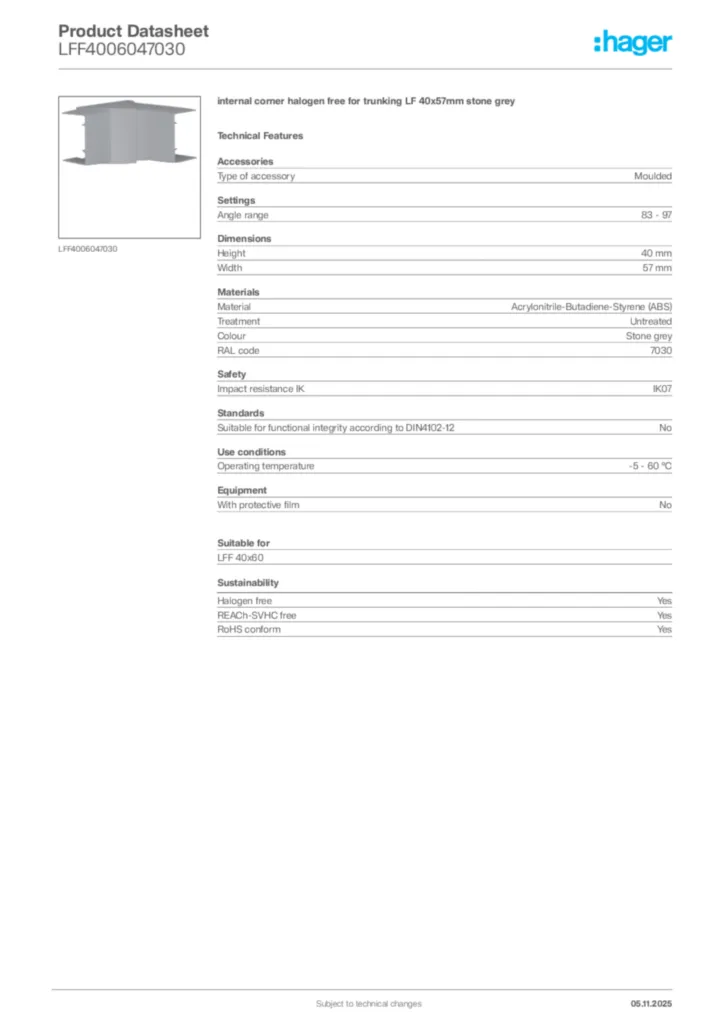

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

83 - 97

Height

40 mm
Width

57 mm
Measurement a

115 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
