The Hager external corner, halogen-free, for LF/LFF 40x57 mm trunking in stone grey (RAL7030) delivers neat, safe corner transitions and cable protection. ABS molded with click mounting and overlapping design for fast, clean installs; adjustable angle 83-97° suits irregular walls. IK07 impact resistance, -5 to 60°C operation. Size 40x57 mm (a=58 mm). Ideal for residential and commercial trunking runs.

EAN

4012740022446

Packaging

1 Piece

External corner halogen-free LF/LFF trunking 30x57mm click mount Stone Grey LFF4006037030

Technical properties
Environmental value
Documentations
More products

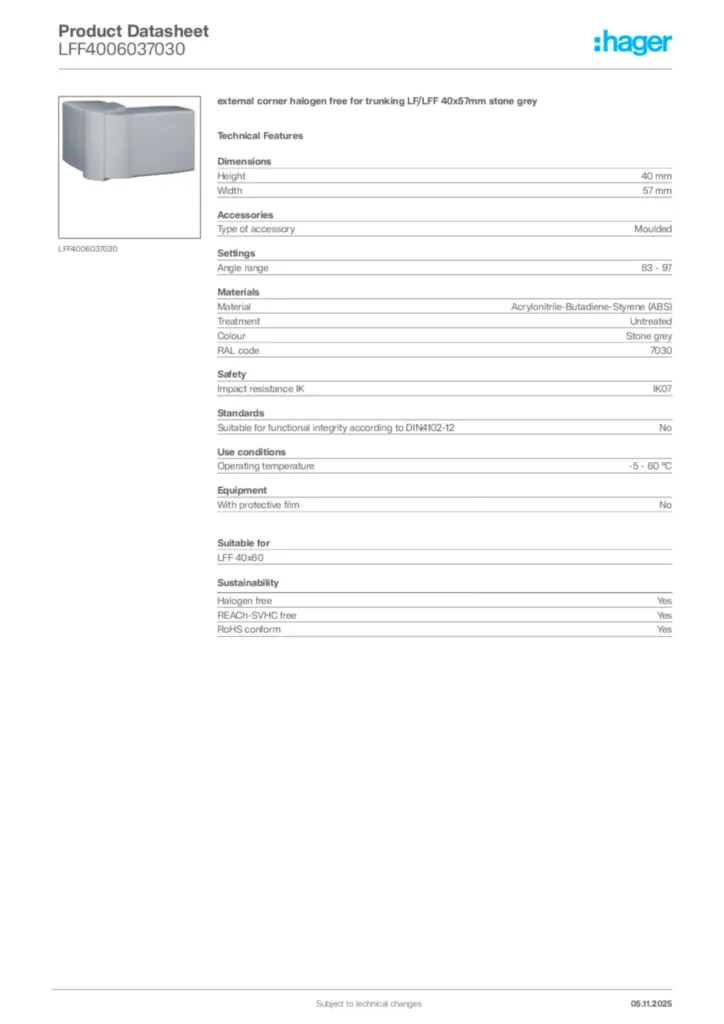

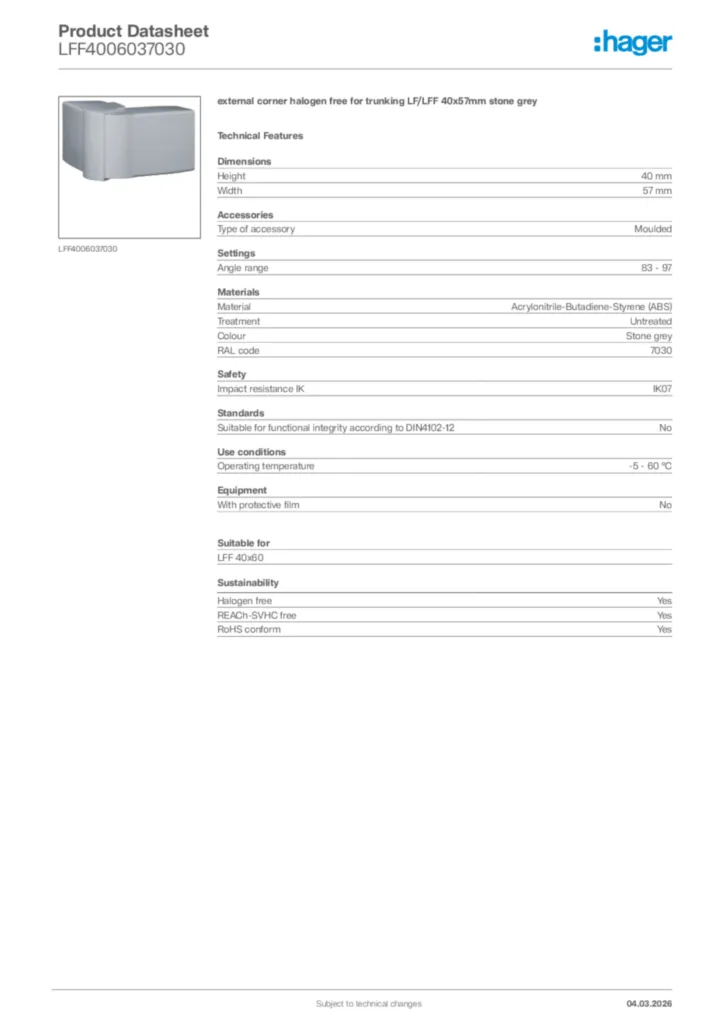

Download the data sheet

Technical properties

Height

40 mm
Width

57 mm
Measurement a

58 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
