The Hager internal corner, halogen-free, for LF/LFF 30x57 mm trunking ensures neat, safe cable transitions at inside corners. Adjustable 83-97° to fit imperfect walls, with overlapping for clean coverage. Durable ABS with IK07 impact resistance, traffic white RAL9016. Quick click mounting and -5 to 60°C operation make it ideal for residential and commercial trunking installations.
EAN
4012740013086
Packaging
1 Piece
90° internal corner for trunking LF 30x30mm halogen free IK07 RAL9016 LFF3006049016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range83 - 97
Dimensions
-
Height30 mm
-
Width57 mm
-
Measurement a105 mm
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
Connectivity
-
Mounting typeClick mounting
-
Related SeriesLFF 30x60
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

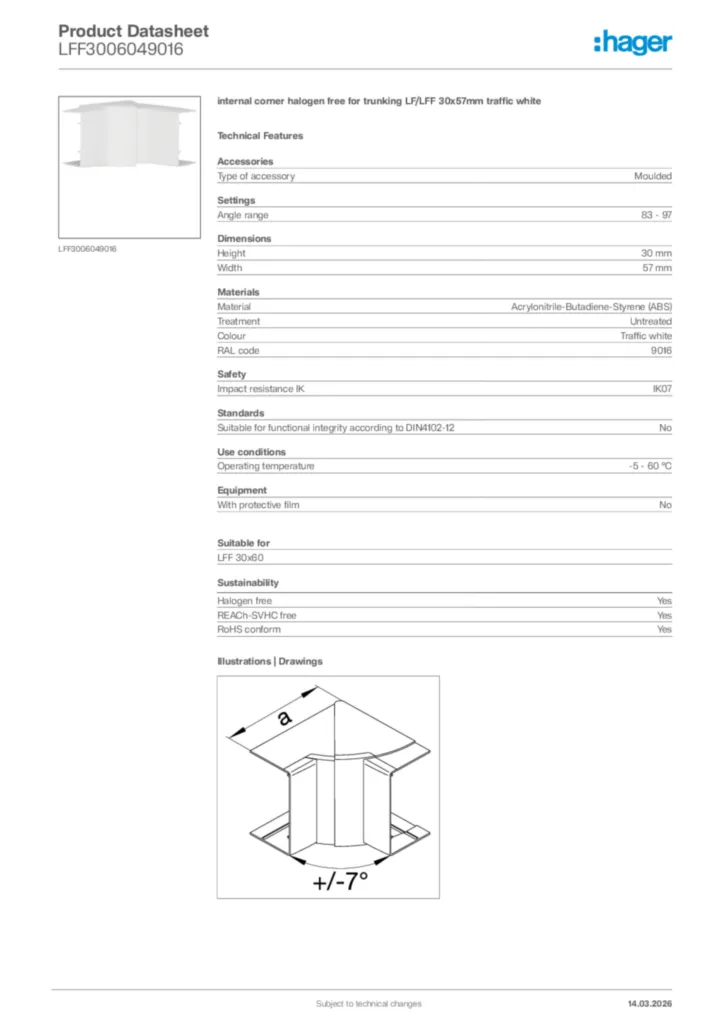

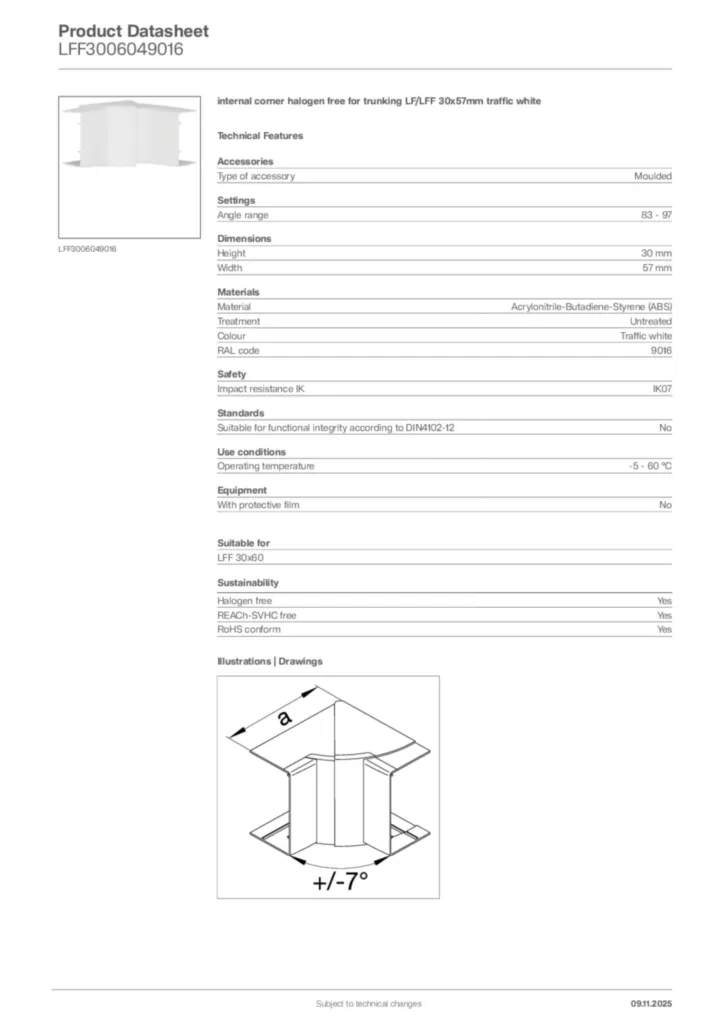

Product datasheet
