The Hager halogen-free T-piece for LF/LFF/FB trunking 60x230 mm in traffic white (RAL 9016) enables tidy 3-way branching of cable runs in residential and commercial installs. Molded ABS with IK07 impact resistance ensures durability; operating range -5 to 60 °C. Compact (H 61 mm, W 230 mm, a 290 mm) for clean alignment without overlap. Ideal for FB 60x230 and LFF 60x230 systems.
EAN
4012740012676
VPE
1 piece
T-piece Halogen-free Trunking LF 30x45mm IK07 Stone Grey RAL7030 LF6023089016
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Dimensions
-
Height61 mm
-
Width230 mm
-
Measurement a290 mm
Accessories
-
Type of accessoryMoulded
Standards
-
Suitable for functional integrity according to DIN4102-12No
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
-
Related SeriesFB 60x230, LFF 60x230
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

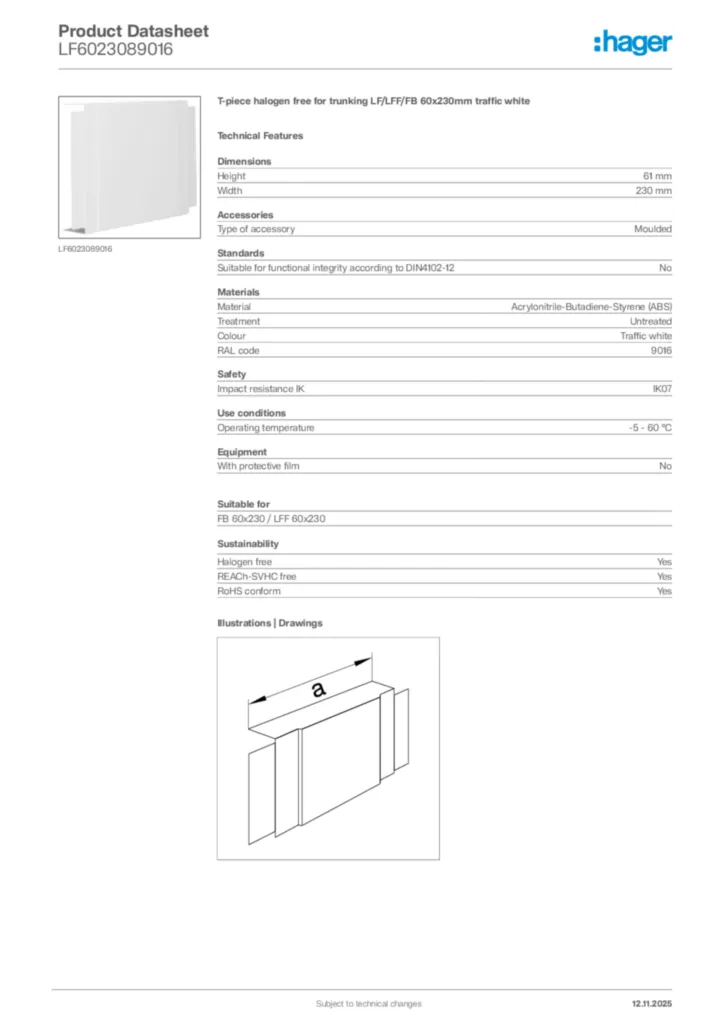

GeneratedProductDatasheet

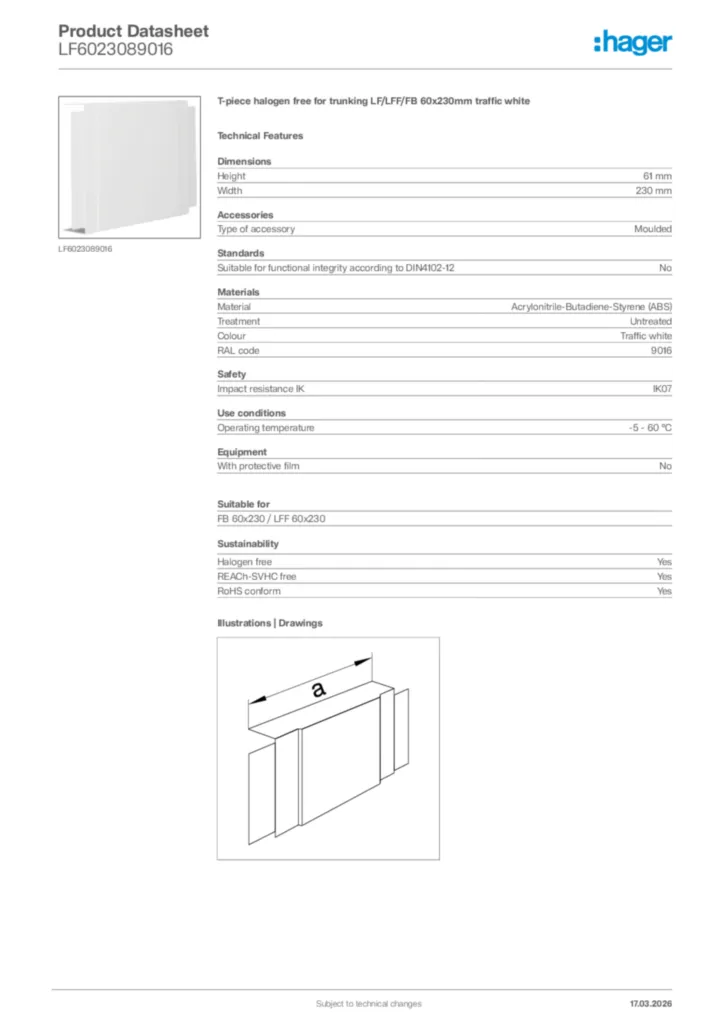

Hager Product data sheet LF6023089016
T-piece halogen free for trunking LF/LFF/FB 60x230mm traffic white
PDF -
ProductLicence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
ProductECDeclaration
Declaration of conformity en-GB 2026-08-07
PDF334,89 kB
Declaration of conformity en-GB 2026-08-07
PDF341,51 kB
Declaration of conformity en-GB 2026-09-30
PDF438,98 kB
EC declaration of conformity FB
Declaration of conformity International 2017-11-20
PDF122,39 kB
