The Hager halogen-free T-piece for LF/LFF/FB 60x230 trunking enables neat 3-way cable branching with a clean stone grey (RAL7030) finish. Moulded ABS with IK07 impact resistance offers robust, easy installation on 60x230 systems. Size: H61 x W230 mm, arm 290 mm. Operating -5 to 60°C. Ideal for low-smoke safety in residential/commercial runs; non-overlapping design ensures precise alignment.

EAN

4012740022125

Packaging

1 Piece

Cable trunking systems - LF

T-piece halogen-free for trunking LF 30x57mm ABS IK07 stone grey RAL7030 LF6023087030

Technical properties
Environmental value
Documentations
More products

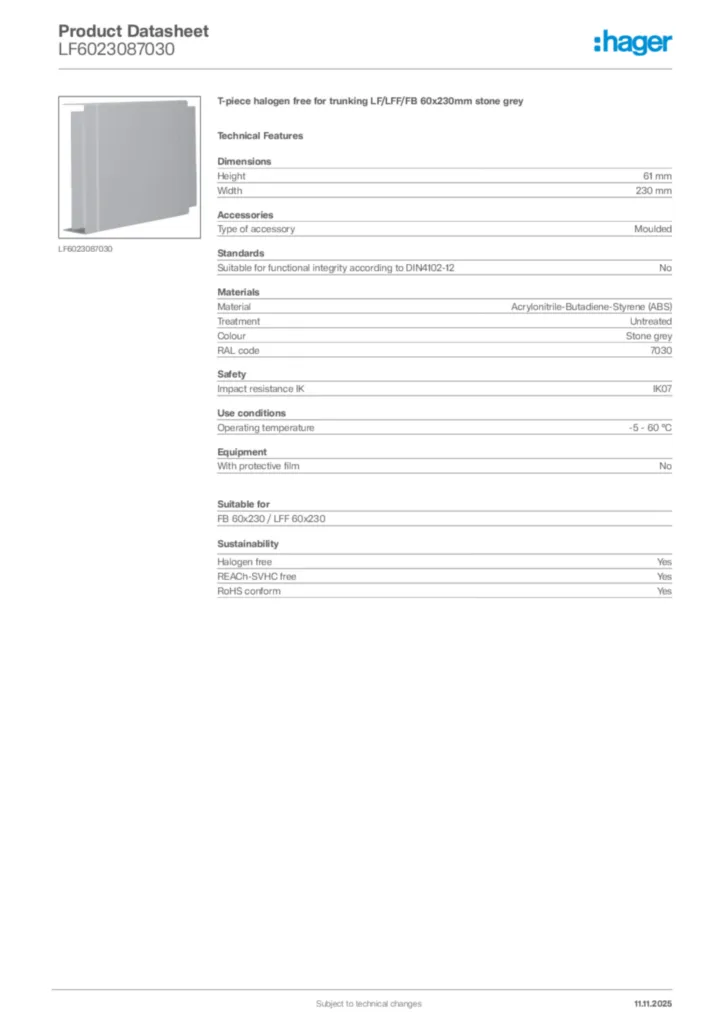

Download the data sheet

Technical properties

Height

61 mm
Width

230 mm
Measurement a

290 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

FB 60x230, LFF 60x230

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
