The Hager halogen‑free endcap for LF/LFF/FB trunking 60x230 mm provides a clean, safe termination for cable routes. Made of ABS (stone grey RAL7030), it offers IK07 impact resistance and operates from -5 to 60°C. Quick screw or snap‑on mounting speeds installation without overlap. Ideal for FB 60x230 and LFF 60x230 runs, delivering low‑smoke safety and a neat, durable finish.
EAN
4012740022101
Packaging
1 Piece
Quadro Evo vertical 2xMCCB kit H3+ P630 630A with RCB, steel, RAL9010 LF6023067030
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height61 mm
-
Width230 mm
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourStone grey
-
RAL code7030
Safety
-
Impact resistance IKIK07
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
Connectivity
-
Mounting typeScrew connection, Snap-on mounting
Standards
-
Suitable for functional integrity according to DIN4102-12No
-
Related SeriesFB 60x230, LFF 60x230
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

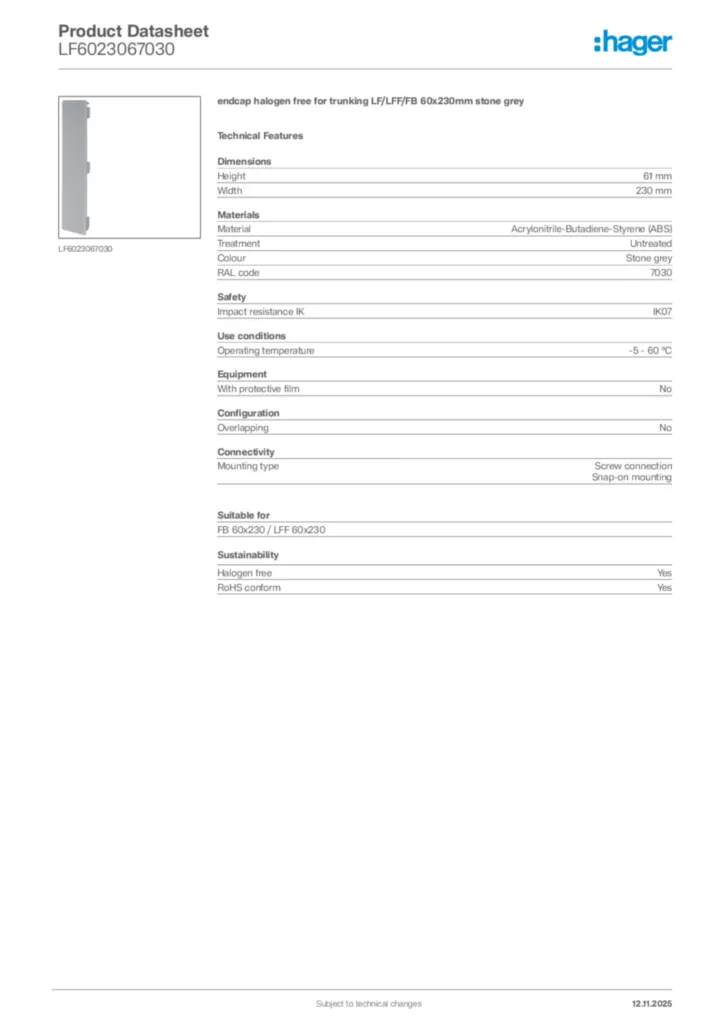

Product datasheet
Hager Product data sheet LF6023067030
endcap halogen free for trunking LF/LFF/FB 60x230mm stone grey
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF455,72 kB
Declaration of conformity en-GB 2026-08-07
PDF334,89 kB
Declaration of conformity en-GB 2026-08-07
PDF341,51 kB
EU-Declaration LFF T045A FR_EN 26072019
Declaration of conformity International 2020-06-25
PDF48,04 kB
T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE
Declaration of conformity International 2023-02-07
PDF52,28 kB
