The Hager T-piece halogen-free for LF/FB 60x190 mm trunking enables clean 90° branching with low-smoke, halogen-free safety. Moulded ABS (IK07) in stone grey RAL7030, height 61 mm, width 190 mm, measurement a 290 mm. Operates -5 to 60 °C. Non-overlapping design for quick, neat installation with FB 60x190 and LFF 60x190 trunking.

EAN

4012740022026

Packaging

1 Piece

Cable trunking systems - LF

Halogen-free T-piece for trunking 60x190 ABS IK07 RAL9016 traffic white LF6019087030

Technical properties
Environmental value
Documentations
More products

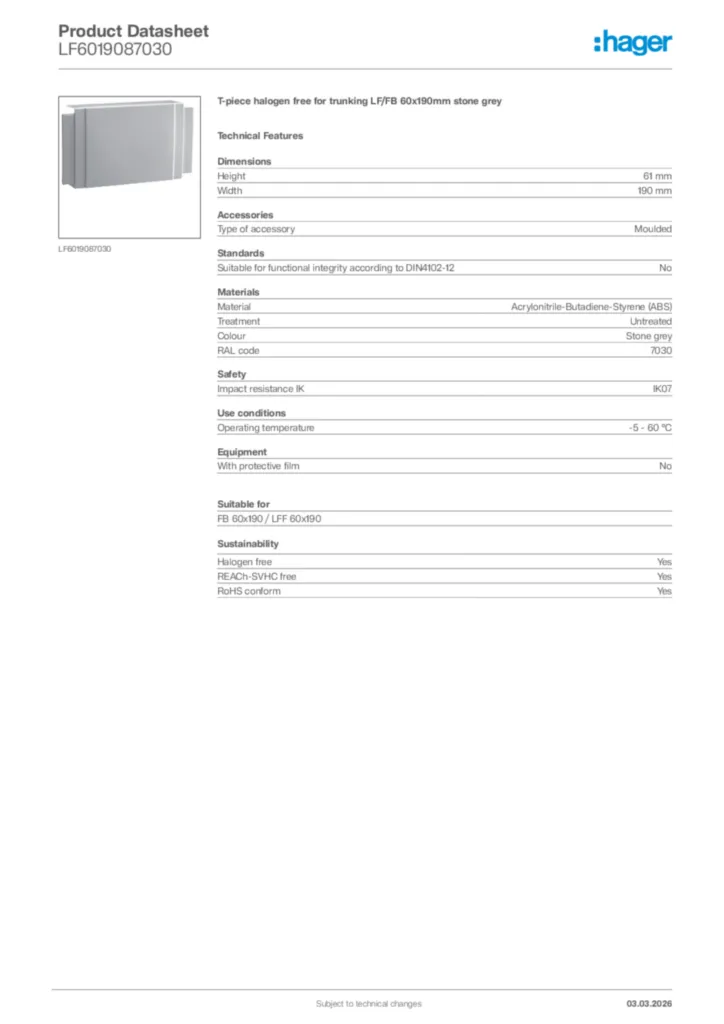

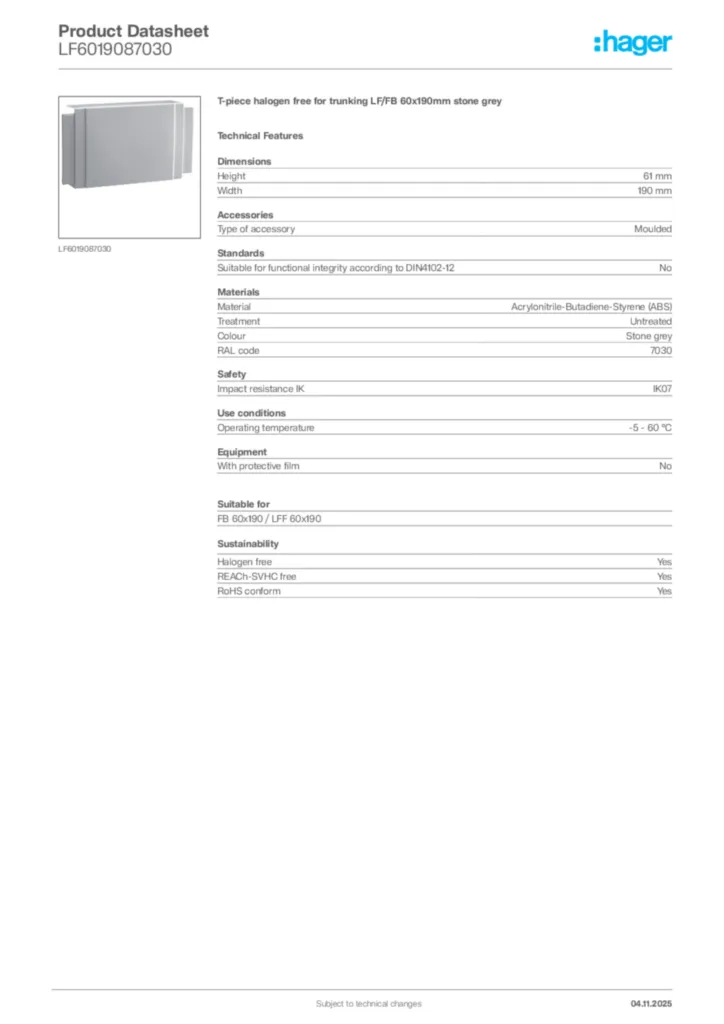

Download the data sheet

Technical properties

Height

61 mm
Width

190 mm
Measurement a

290 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

FB 60x190, LFF 60x190

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
