The Hager halogen-free T-piece for LF/LFF/LFH/FB 60x150 trunking enables a neat 90° branch for clean cable routing and low-smoke safety. Molded ABS in traffic white (RAL9016) with IK07 impact resistance for durability. Operates -5 to 90°C. Dimensions: height 61 mm, width 150 mm, measurement a 250 mm. Non-overlapping design speeds tidy installation in residential, commercial, and industrial applications.
EAN
4012740012539
Packaging
1 Piece
T-piece halogen-free for LF/LFH trunking 40x57mm IK07 RAL 9016 LF6015089016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height61 mm
-
Width150 mm
-
Measurement a250 mm
Accessories
-
Type of accessoryMoulded
Standards
-
Suitable for functional integrity according to DIN4102-12No
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Use conditions
-
Operating temperature-5 - 90 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
-
Related SeriesFB 60x150, LFF 60x150
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

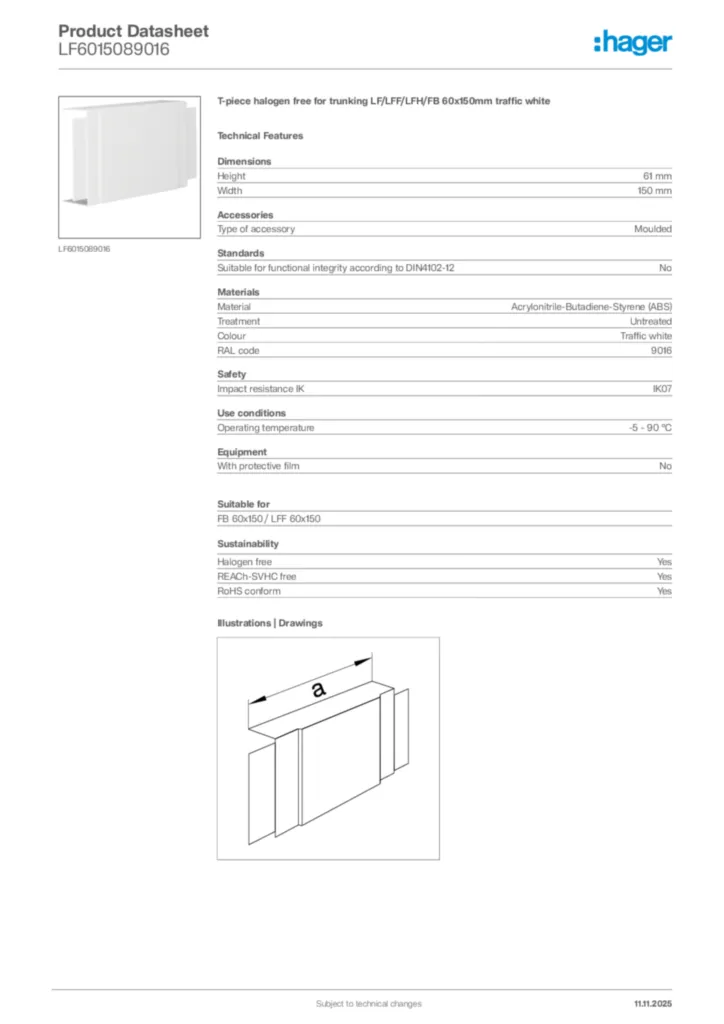

Product datasheet
Hager Product data sheet LF6015089016
T-piece halogen free for trunking LF/LFF/LFH/FB 60x150mm traffic white
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF334,89 kB
Declaration of conformity en-GB 2026-08-07
PDF332,42 kB
Declaration of conformity en-GB 2026-08-07
PDF341,51 kB
Declaration of conformity en-GB 2026-09-30
PDF438,98 kB
EC declaration of conformity FB
Declaration of conformity International 2017-11-20
PDF122,39 kB
