The Hager halogen-free endcap for LF/LFF/LFH/FB 60x150 mm trunking provides a clean, safe termination of cable runs. Made of durable ABS in traffic white (RAL 9016), it offers IK07 impact resistance and operates from -5 to 90 °C. At 61 x 150 mm, it installs quickly with snap-on or screw fixing, ensuring robust, low-emission cable management in residential, commercial, and industrial settings.
EAN
4012740012522
Packaging
1 Piece
T-piece halogen-free LF/FB trunking 60x110mm ABS IK07 Stone Grey RAL7030 LF6015069016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height61 mm
-
Width150 mm
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Use conditions
-
Operating temperature-5 - 90 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
Connectivity
-
Mounting typeScrew connection, Snap-on mounting
Standards
-
Suitable for functional integrity according to DIN4102-12No
-
Related SeriesFB 60x150, LFF 60x150
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

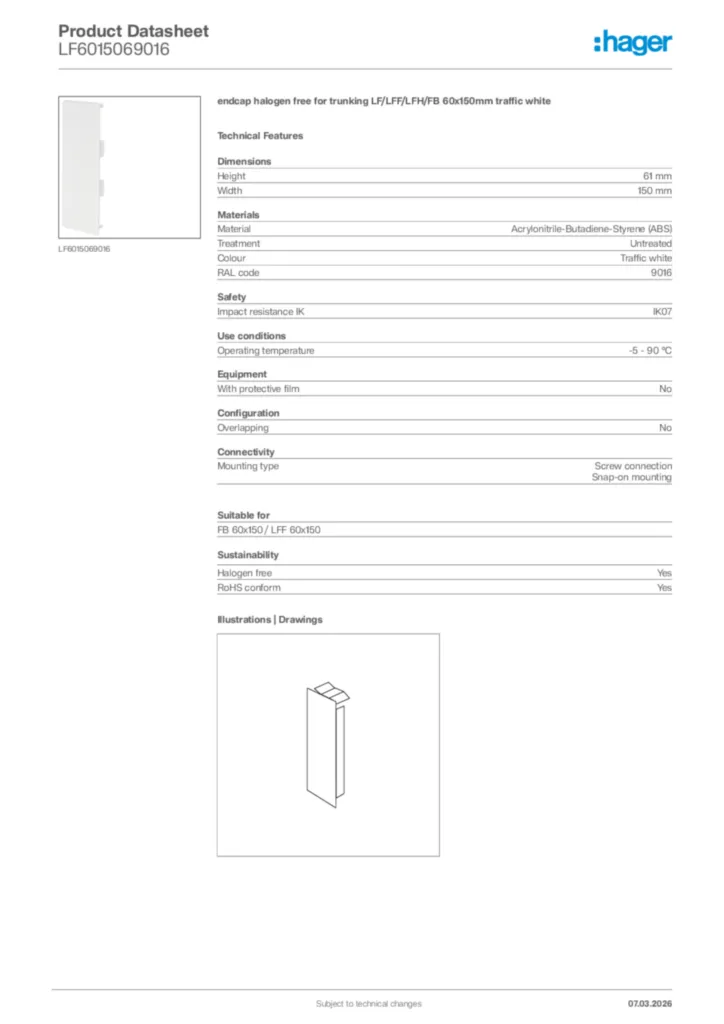

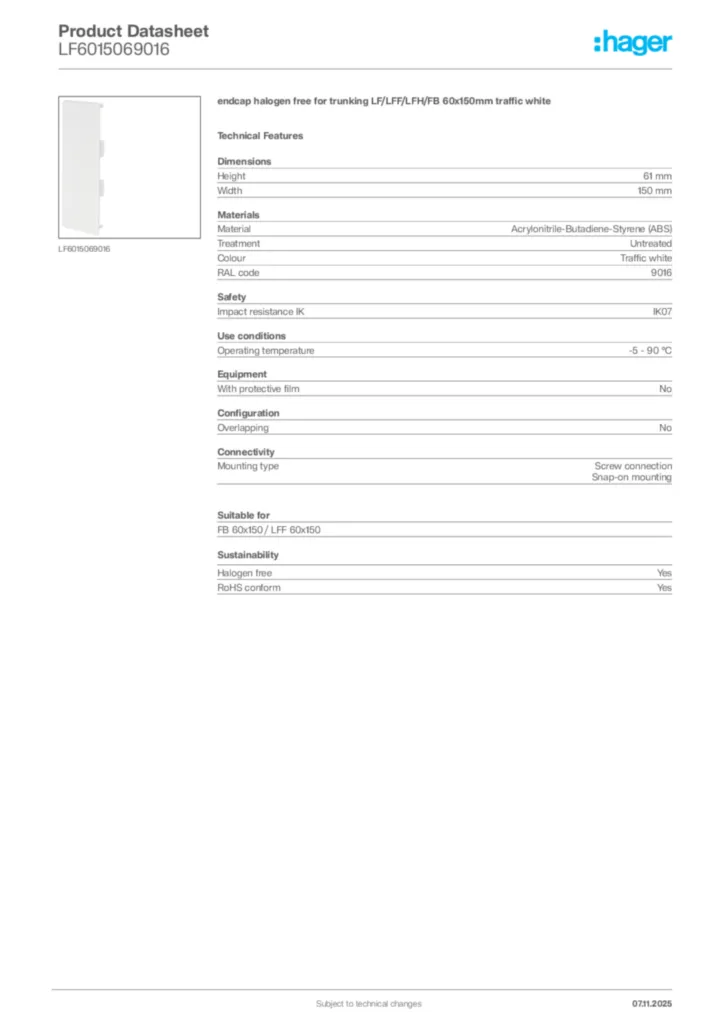

Product datasheet
Hager Product data sheet LF6015069016
endcap halogen free for trunking LF/LFF/LFH/FB 60x150mm traffic white
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
EC declaration of conformity FB
Declaration of conformity International 2017-11-20
PDF122,39 kB
EU-Declaration FB T025A DE_EN 25072019
Declaration of conformity International 2019-08-23
PDF38,99 kB
EU-Declaration LFF T045A FR_EN 26072019
Declaration of conformity International 2020-06-25
PDF48,04 kB
EU-Declaration LFH T027A DE_EN 25072019
Declaration of conformity International 2019-08-23
PDF41,84 kB
T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE
Declaration of conformity International 2023-02-07
PDF52,28 kB
