The Hager halogen‑free end cap for LF/FB 60x150 mm trunking delivers a safe, neat termination of cable routes. ABS construction in stone grey (RAL7030) offers IK07 impact resistance and -5 to 60°C operation. Fast screw or snap‑on mounting. Height 61 mm, width 150 mm. Compatible with FB 60x150 and LFF 60x150 systems—ideal where low smoke emissions and a clean finish are required.
EAN
4012740021906
Packaging
1 Piece
End cap halogen-free for LF/LFH 20x20 trunking, Traffic white RAL9016, IK07 IP30 LF6015067030
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height61 mm
-
Width150 mm
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourStone grey
-
RAL code7030
Safety
-
Impact resistance IKIK07
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
Connectivity
-
Mounting typeScrew connection, Snap-on mounting
Standards
-
Suitable for functional integrity according to DIN4102-12No
-
Related SeriesFB 60x150, LFF 60x150
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

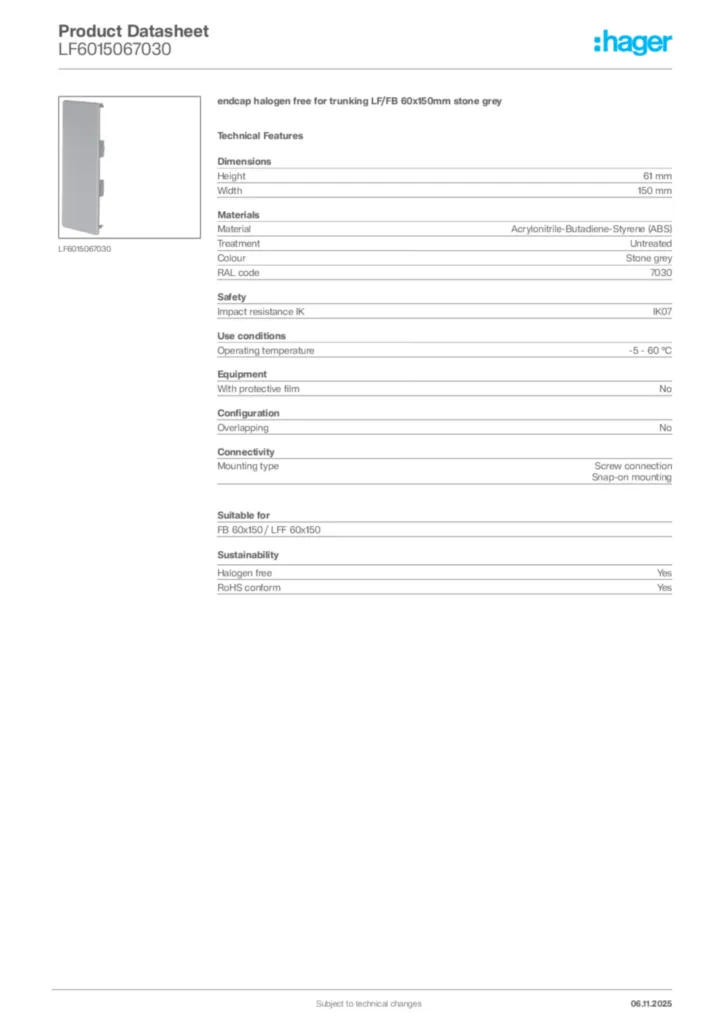

Product datasheet

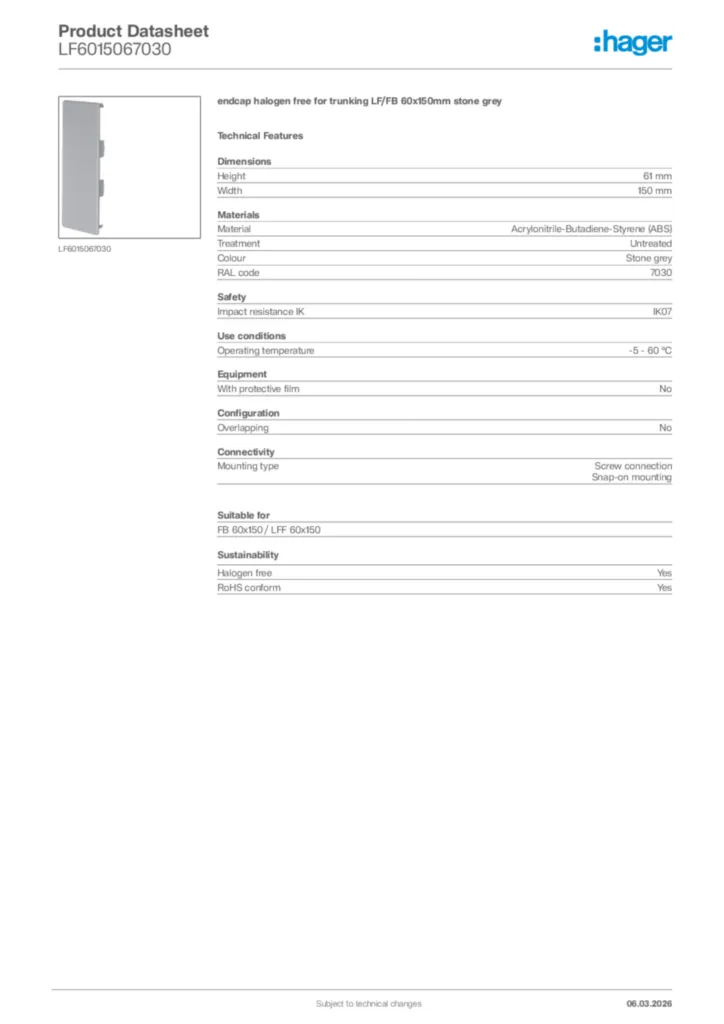

Hager Product data sheet LF6015067030
endcap halogen free for trunking LF/FB 60x150mm stone grey
PDF -
Product licence
Product_Licence_NF004_1074_LFF
Product licence International 2021-02-12
PDF1,52 MB -
Declaration of conformity
Declaration of conformity en-GB 2026-08-07
PDF455,72 kB
Declaration of conformity en-GB 2026-08-07
PDF334,89 kB
Declaration of conformity en-GB 2026-08-07
PDF341,51 kB
EU-Declaration LFF T045A FR_EN 26072019
Declaration of conformity International 2020-06-25
PDF48,04 kB
T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE
Declaration of conformity International 2023-02-07
PDF52,28 kB
