The Hager halogen-free T-piece for LF/FB 60x110 mm trunking enables clean 90° branching in cable routes. Moulded ABS (stone grey RAL7030) with IK07 impact resistance for durable installs; operates -5 to 60°C. Dimensions: H61 x W110 x 190 mm. Non-overlapping design ensures a flush fit. Compatible with FB 60x110 and LFF 60x110 systems, ideal for tidy residential and commercial cable management.

EAN

4012740021821

Packaging

1 Piece

Cable trunking systems - LF

T-piece halogen free 60x90mm ABS IK07 stone grey RAL7030 for LF trunking LF6011087030

Technical properties
Environmental value
Documentations
More products

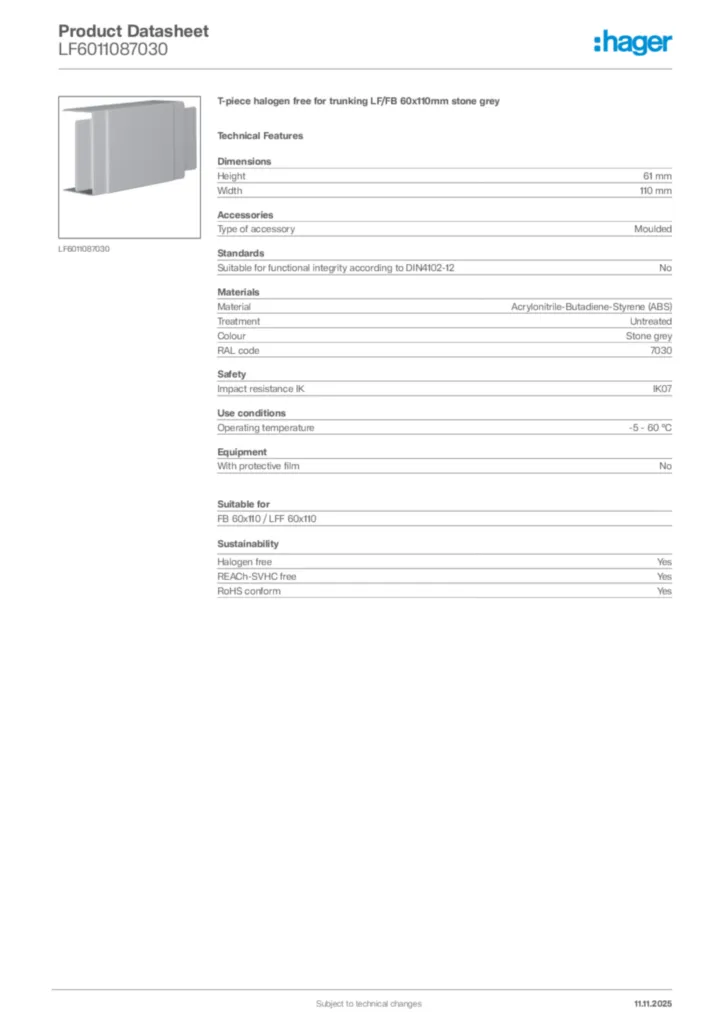

Download the data sheet

Technical properties

Height

61 mm
Width

110 mm
Measurement a

190 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

FB 60x110, LFF 60x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
