The Hager halogen-free T-piece for LF/LFF 40x110 mm trunking in stone grey (RAL7030) provides clean 90° branching for cable management. Moulded ABS with IK07 impact resistance ensures robustness; operating range -5 to 60°C. Compact 40x110 mm with 190 mm leg, non-overlapping for neat installs. Ideal for residential and commercial routing within the LFF 40x110 system.

EAN

4012740021647

Packaging

1 Piece

Cable trunking systems - LF

T-piece halogen-free trunking 60x230 ABS IK07 Traffic white RAL9016 LF/LFF/FB LF4011087030

Technical properties
Environmental value
Documentations
More products

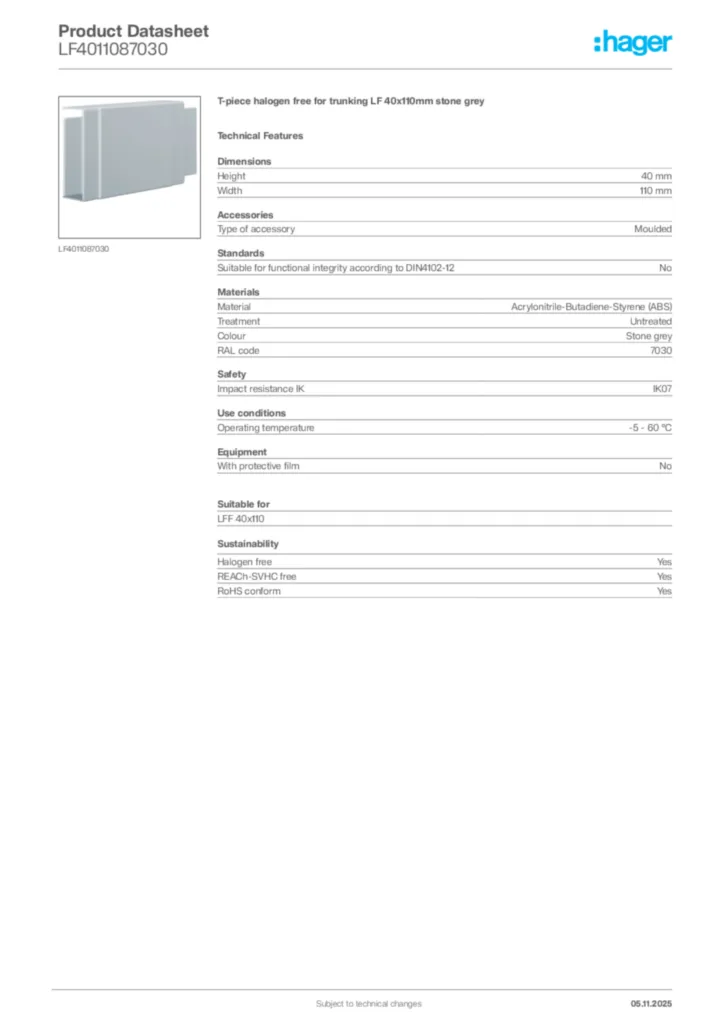

Download the data sheet

Technical properties

Height

40 mm
Width

110 mm
Measurement a

190 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

LFF 40x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
