The Hager LFF 40x40 flat angle is a halogen‑free moulded accessory for LF/LFF 40x40 mm trunking, enabling neat 90° cable runs in the same plane. Made of ABS in traffic white RAL9016, it ensures a clean, consistent finish. With 40x40 mm size, 68 mm leg, IK07 impact resistance and -5 to 60°C rating, it delivers durable, safe cable routing for residential and commercial installations.

EAN

4012740012034

Packaging

1 Piece

External corner 90° Halogen-free for LF trunking 40x40 IK07 RAL9016 LF4004059016

Technical properties
Environmental value
Documentations
More products

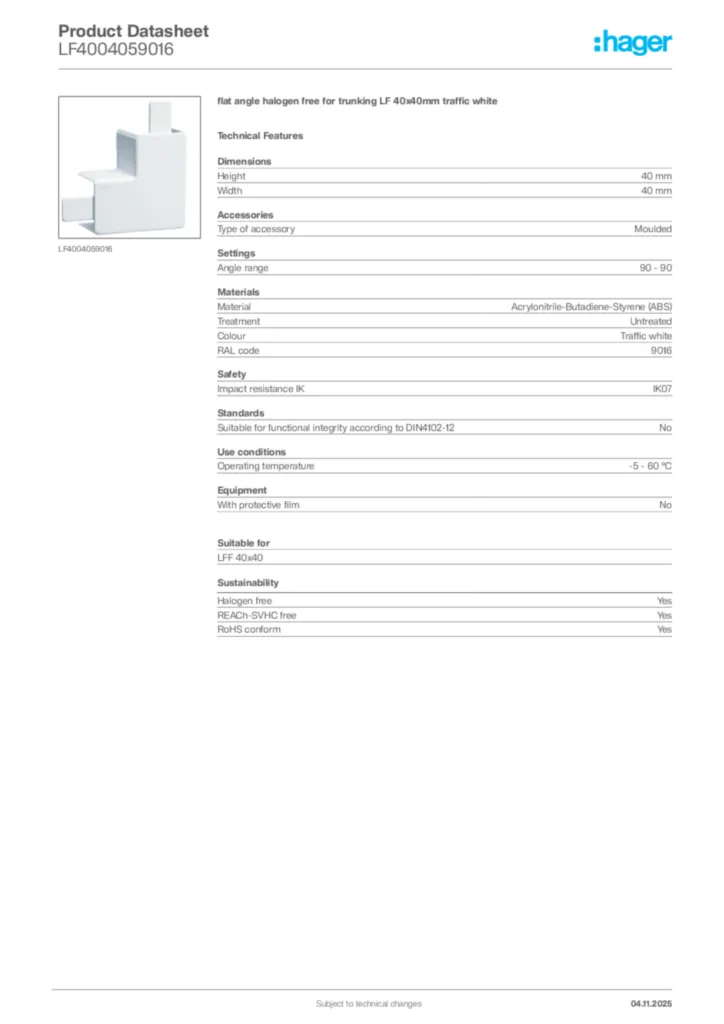

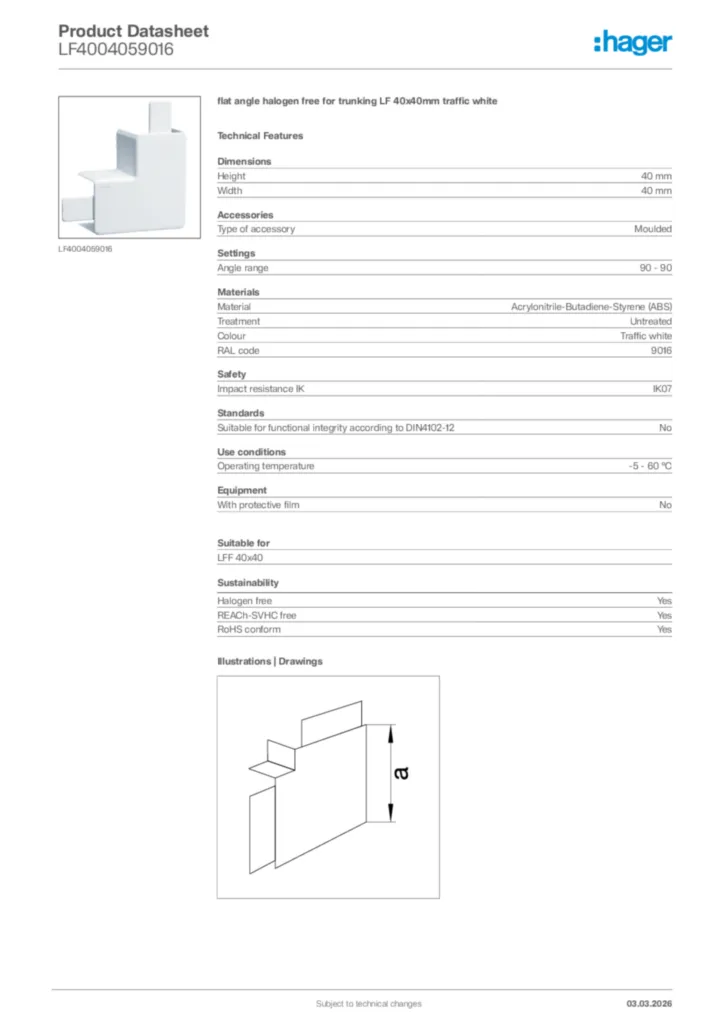

Download the data sheet

Technical properties

Height

40 mm
Width

40 mm
Measurement a

68 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LFF 40x40

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
