The Hager internal corner for LF 40x40 trunking is a halogen‑free fitting that creates a clean 90° inside turn for safe, low‑smoke cable routing. Molded ABS with IK07 impact resistance, it measures 40x40 mm (measurement a: 85 mm) and operates from -5 to 60 °C. Finished in traffic white RAL9016, it ensures neat, durable transitions in residential and commercial installations while preserving aesthetics.

EAN

4012740012027

Packaging

1 Piece

Internal corner halogen-free for trunking 30x57mm IK07 click mounting white LF4004049016

Technical properties
Environmental value
Documentations
More products

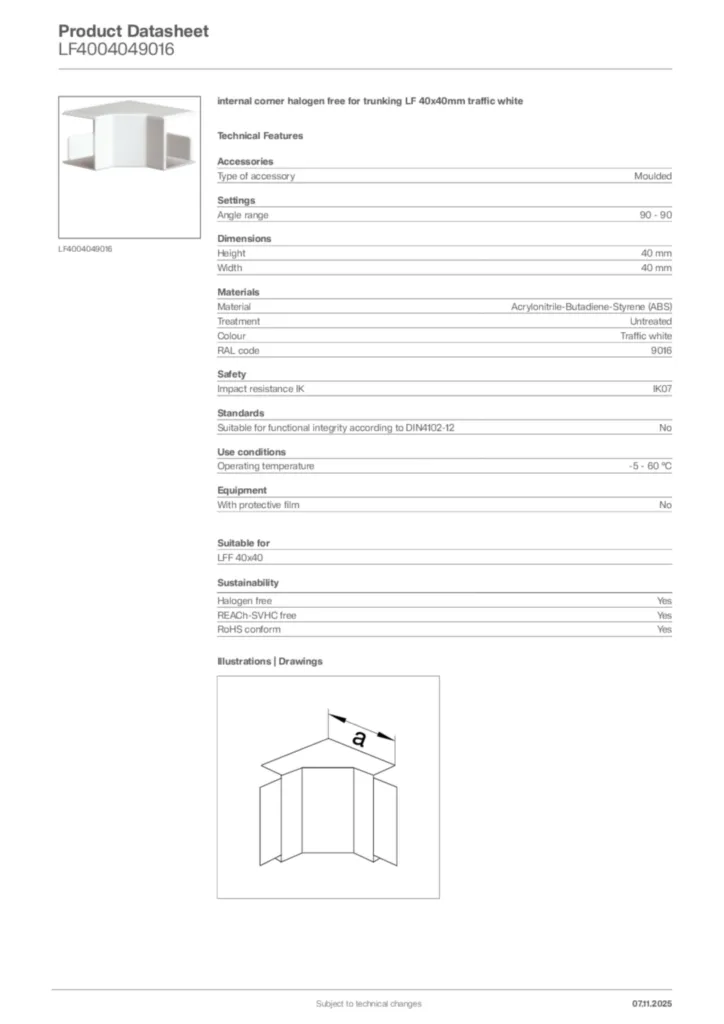

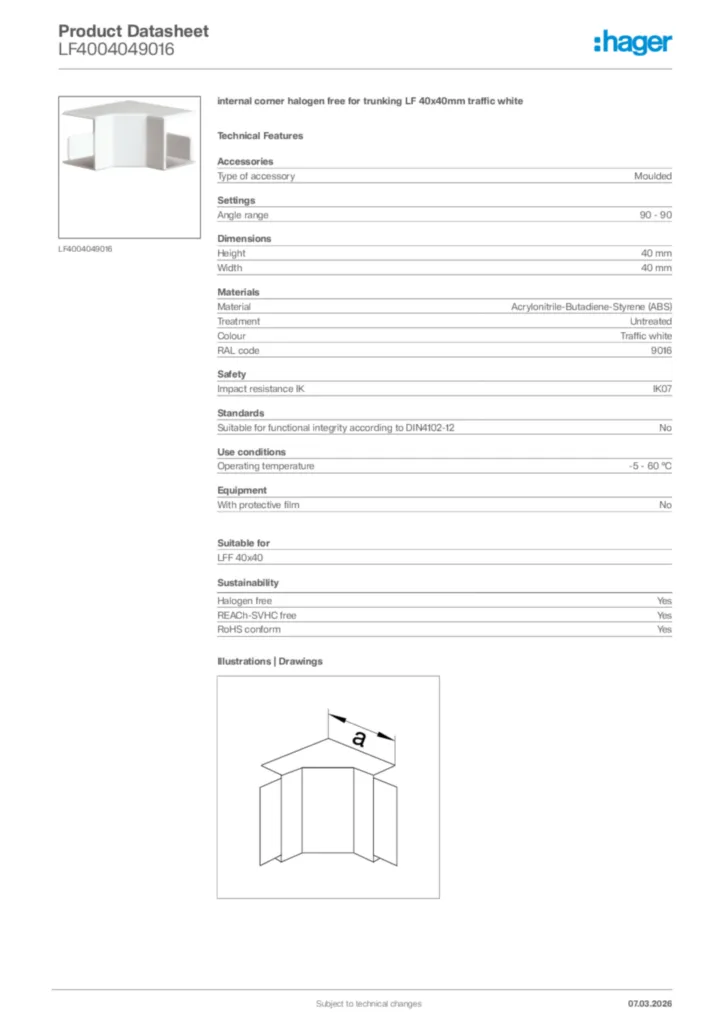

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

40 mm
Width

40 mm
Measurement a

85 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFF 40x40

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
