The Hager T-piece, halogen-free for LF trunking 30x57 mm in traffic white (RAL 9016), enables neat 90° branching and cable routing in residential and commercial installs. Moulded ABS with IK07 impact resistance ensures durability. Dimensions 30 x 57 mm, branch length 170 mm. Operates -5 to 60 °C. Non-overlapping design for a precise fit; compatible with LFF 30x60 series.

EAN

4012740011990

Packaging

1 Piece

Cable trunking systems - LF

T-piece halogen-free trunking LF 30x30 mm IK07 stone grey RAL7030 LF3006089016

Technical properties
Environmental value
Documentations
More products

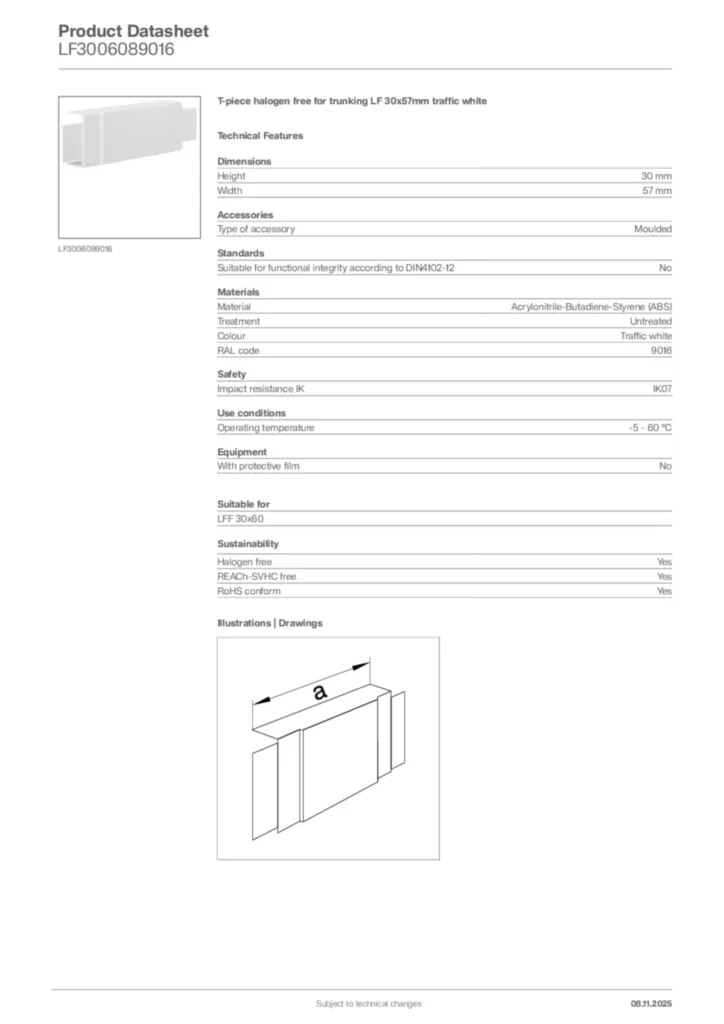

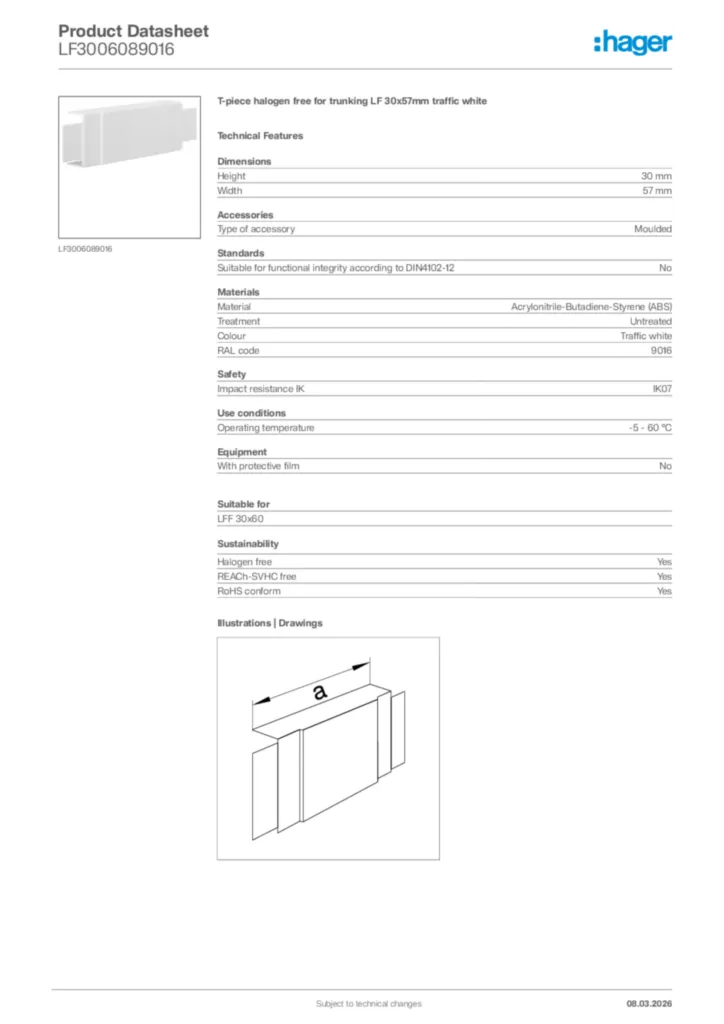

Download the data sheet

Technical properties

Height

30 mm
Width

57 mm
Measurement a

170 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

LFF 30x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
