The Hager T-piece halogen-free for LF 30x45 mm trunking in stone grey (RAL7030) enables neat 90° branching in cable runs. Moulded ABS with IK07 impact resistance ensures durability; operating range -5 to 60°C. Size 30x45 mm, measurement a 130 mm. Non-overlapping for flush fitting. Fits LFF 30x45 series. Ideal for residential and commercial use, offering safe, low-smoke cable routing.

EAN

4012740021289

Packaging

1 Piece

Cable trunking systems - LF

Flat angle overlapping halogen-free LF/LFF trunking 40x110 RAL7030 IK07 LF3004587030

Technical properties
Environmental value
Documentations
More products

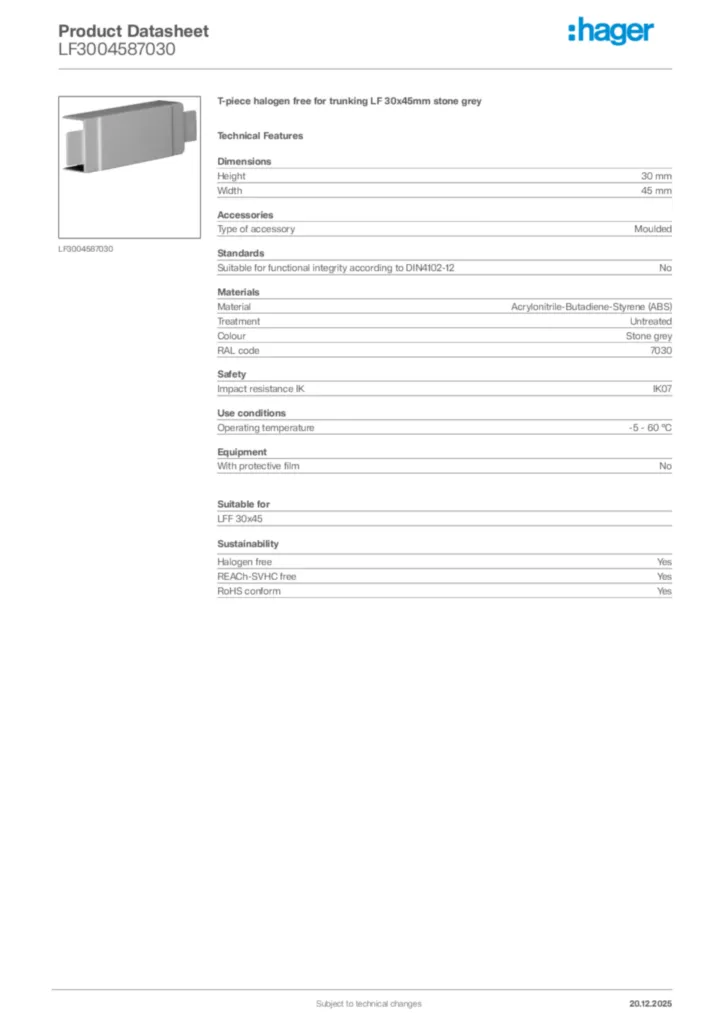

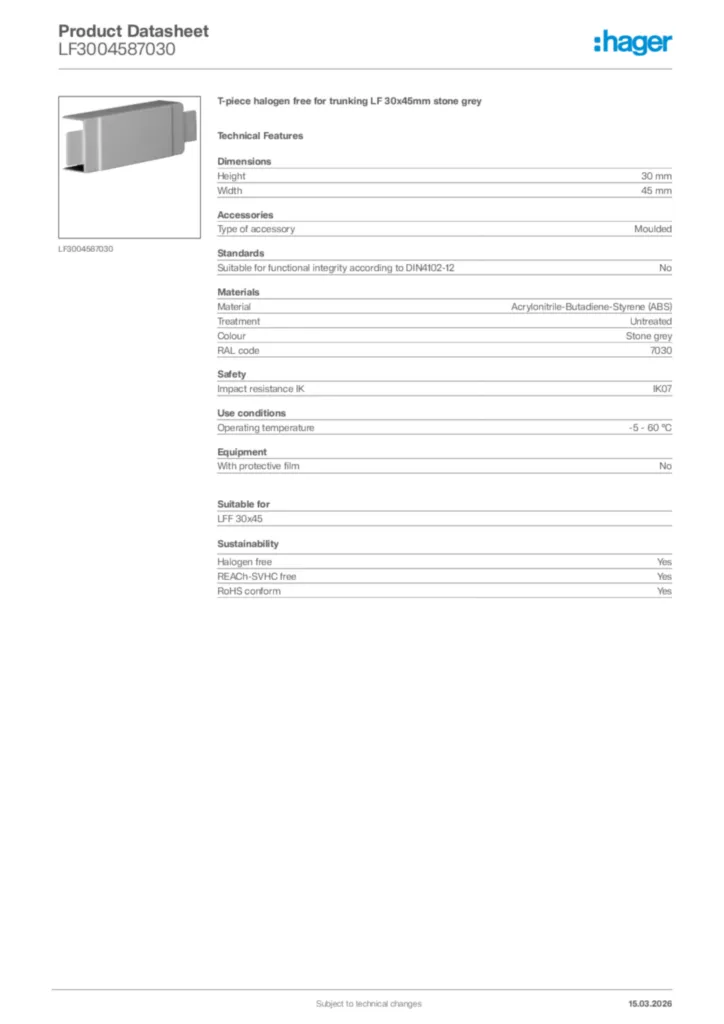

Download the data sheet

Technical properties

Height

30 mm
Width

45 mm
Measurement a

130 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

LFF 30x45

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
