The Hager LFF 30x45 flat angle is a halogen‑free moulded accessory for LF trunking, enabling clean 90° changes of direction while preserving cable capacity and safety. Made of ABS, 30×45 mm with a=60 mm bend, stone grey RAL7030, IK07, operating −5 to 60 °C. Non‑overlapping for a flush finish and fast installation. Ideal for residential and commercial cable routing with consistent aesthetics.

EAN

4012740021210

Packaging

1 Piece

Flat angle overlapping 30x57 mm halogen-free for LF/LFF trunking, stone grey LF3004557030

Technical properties
Environmental value
Documentations
More products

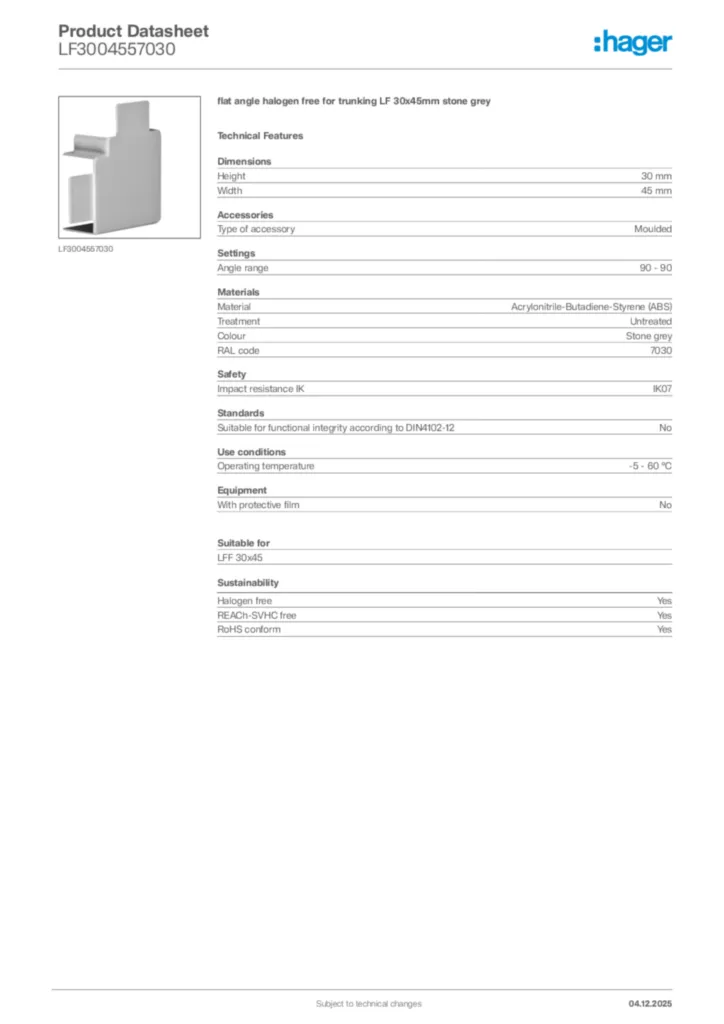

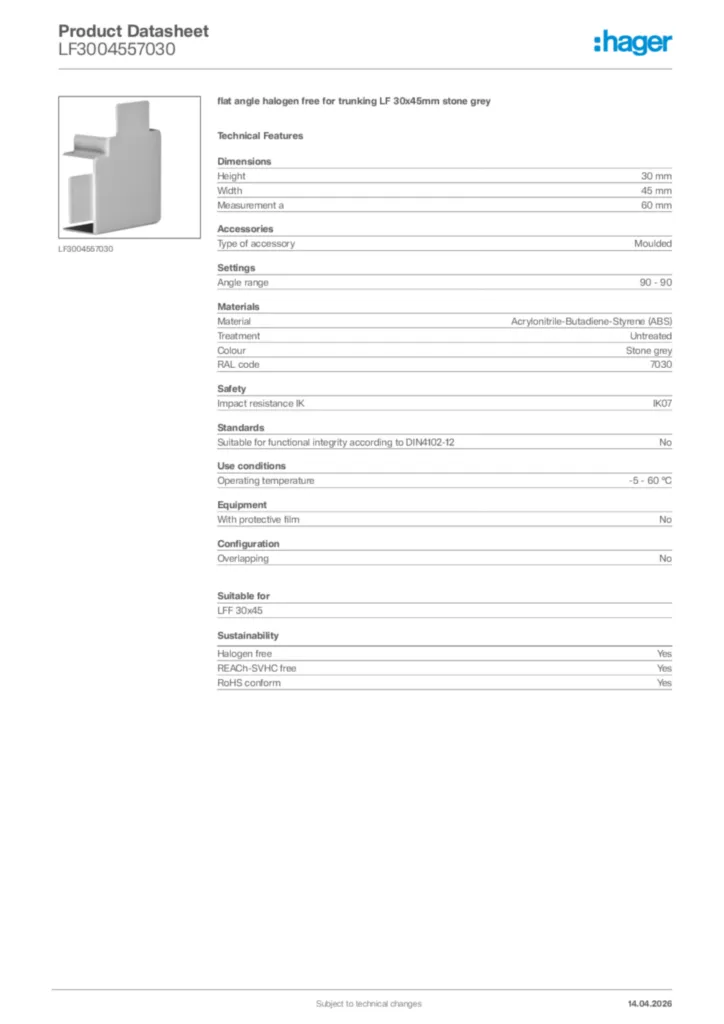

Download the data sheet

Technical properties

Height

30 mm
Width

45 mm
Measurement a

60 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LFF 30x45

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
