The Hager halogen‑free end cap for LF 30x30 mm trunking provides a clean, safe termination for cable runs in residential and commercial installations. ABS construction in stone grey (RAL7030), IK07 impact resistance, and -5 to 60°C rating ensure durability. Fast screw or snap‑on mounting. Compatible with LFF 30x30 series. Offers neat finish, improved fire safety, and reliable protection of conductors.

EAN

4012740021074

Packaging

1 Piece

Retaining clip slotted panel trunking 75x75 PC/ABS halogen-free Red HNG LF3003067030

Technical properties
Environmental value
Documentations
More products

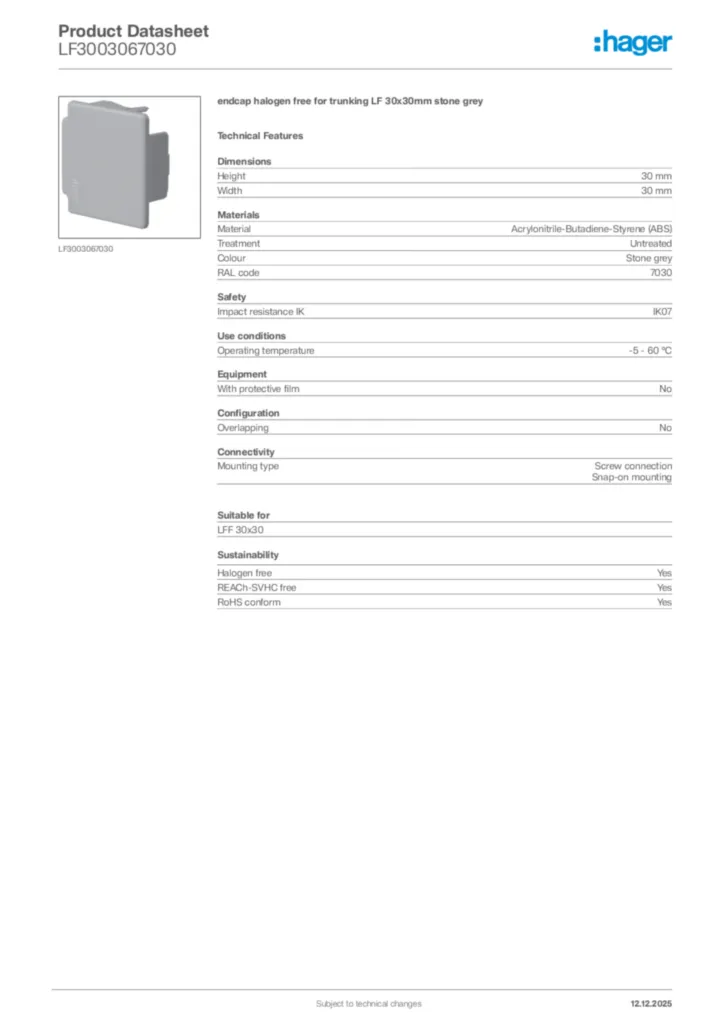

Download the data sheet

Technical properties

Height

30 mm
Width

30 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting type

Screw connection, Snap-on mounting

Suitable for functional integrity according to DIN4102-12

No

Related Series

LFF 30x30

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
