The Hager internal corner, halogen‑free, for LF trunking 30×30 mm in stone grey (RAL7030), delivers a neat 90° inside turn and cable protection for the LFF 30×30 series. Moulded ABS with IK07 impact resistance, it operates from -5 to 60°C. Compact 30×30 mm with 60 mm leg length, it installs quickly without overlap for tidy, low‑smoke, safe routing in residential or commercial projects.

EAN

4012740021012

Packaging

1 Piece

Internal corner halogen-free for LF 40x57 trunking click mount stone grey LF3003047030

Technical properties
Environmental value
Documentations
More products

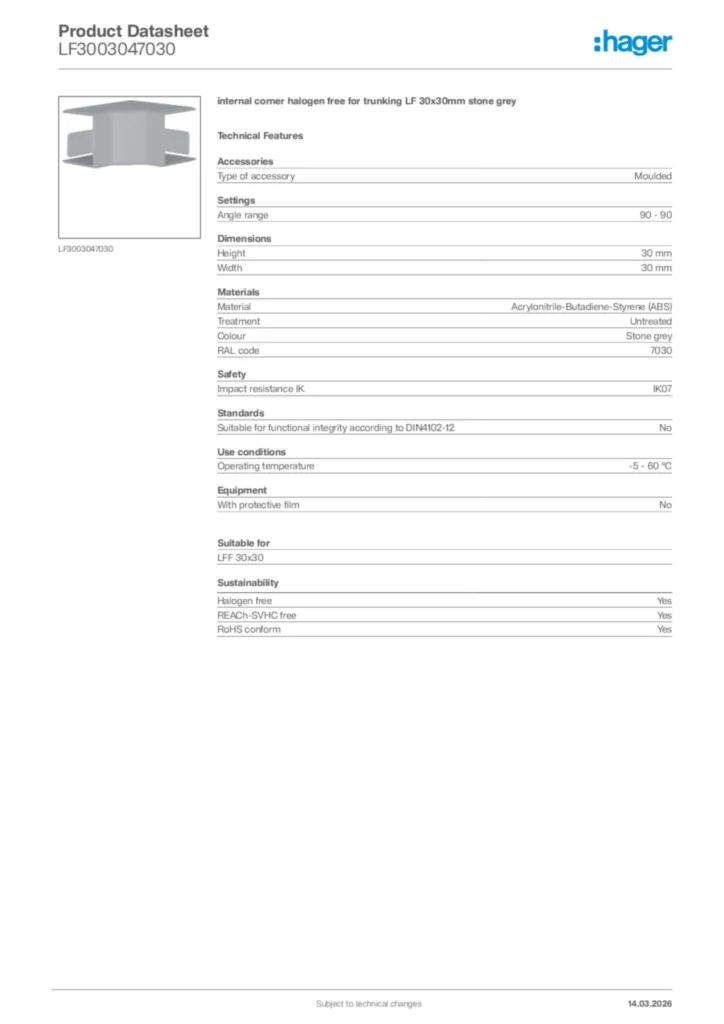

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

30 mm
Width

30 mm
Measurement a

60 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

LFF 30x30

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
