Trunking made of PVC LF 20x35mm traffic white LF2003509016
EAN
4012740011716
Packaging
40 Meters
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
External corner for installation duct 1 products available -
Internal corner for installation duct 1 products available -
Flat angle for installation duct 1 products available -
End piece for installation duct 1 products available -
Joint cover for installation duct 1 products available
Complete your system
Technical properties
Dimensions
-
Height20 mm
-
Width33 mm
-
Length2000 mm
-
Inner cross-section440 - 440 mm²
Capacity
-
Max. number of cables (Ø11mm, 50% filled, without devices)2
Materials
-
MaterialPolyvinylchloride (PVC)
-
TreatmentUntreated
-
RAL code9016
-
ColourTraffic white
Safety
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 60 °C
Connectivity
-
Trunking couplingWithout coupling
Equipment
-
Number of partitions0
-
Number of compartments1 - 1
-
Number of pluggable partitions0
-
Cable retaining clip includedNo
-
With protective filmNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

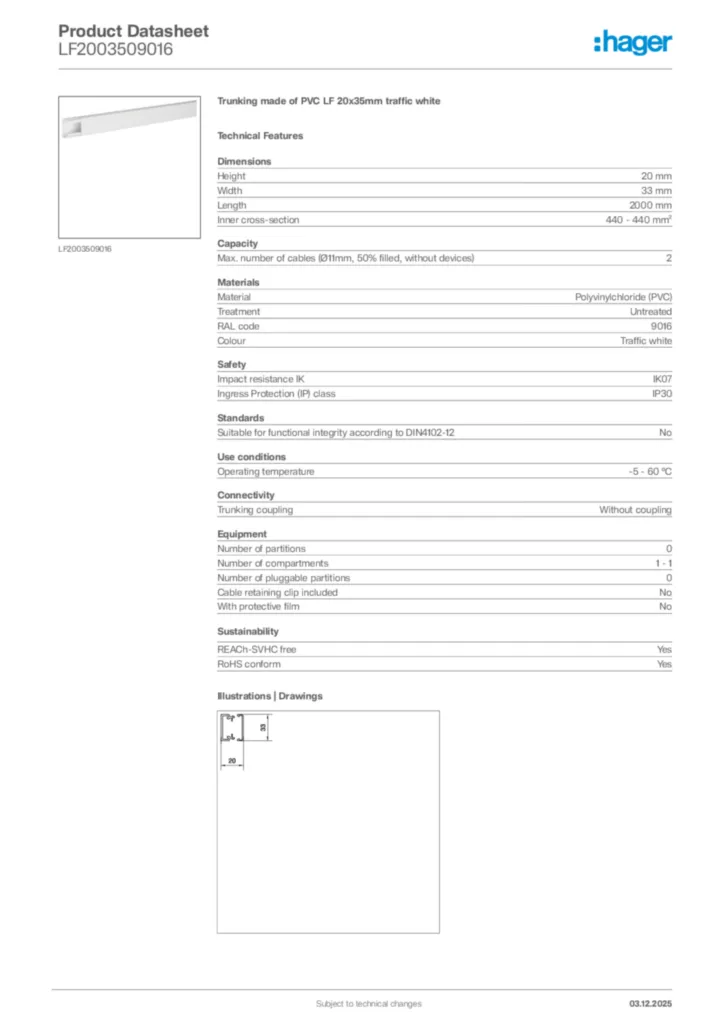

Product datasheet
undefined
PDF -
DXF files
DXF files International 2023-02-02
DXF365,62 kB -
STEP files
STEP files International 2023-02-02
STP156,27 kB -
With variables
Product drawing
Product Drawing International 2023-02-02
PDF66,53 kB -
Declaration of conformity
T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE
Declaration of conformity International 2023-02-07
PDF52,28 kB
