    • Home
    • Catalog
    • Cable routing and room connec­tion systems
    • Cable trunking systems
    • Cable trunking systems - LF
    • LF1001009016
    EAN
    4012740011419
    Packaging
    84 Meters
    • Cable trunking systems - LF

    Trunking made of PVC LF 10x10mm traffic white LF1001009016

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Trunking made of PVC LF 10x10mm traffic white

    LF1001009016

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Surface-­mounted housing for flush-­mounted switching device 1 products available

    Complete your system

    • Surface-­mounted housing for flush-­mounted switching device
    • ATA806199016

      Universal outlet box for ATHEA/LF trunking 60mm in traffic white
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      10 mm
    • Width
      12 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      84 - 84 mm²
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      0
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    Safety
    • Impact resist­ance IK
      IK06
    • Ingress Protec­tion (IP) class
      IP30
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Connectivity
    • Trunking coup­ling
      Without coup­ling
    Equip­ment
    • Number of parti­tions
      0
    • Number of compart­ments
      1 - 1
    • Number of plug­gable parti­tions
      0
    • Cable retaining clip included
      No
    • With protective film
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Distribution trunking - series LF - LFE - FB - BA6 (english)
    PDF
    400,99 kB
    REACH declaration LF1001009016
    PDF
    RoHS report LF1001009016
    PDF

    Downloads

    • Image LF1001009016 | Hager Africa

      Product Image LF1001009016

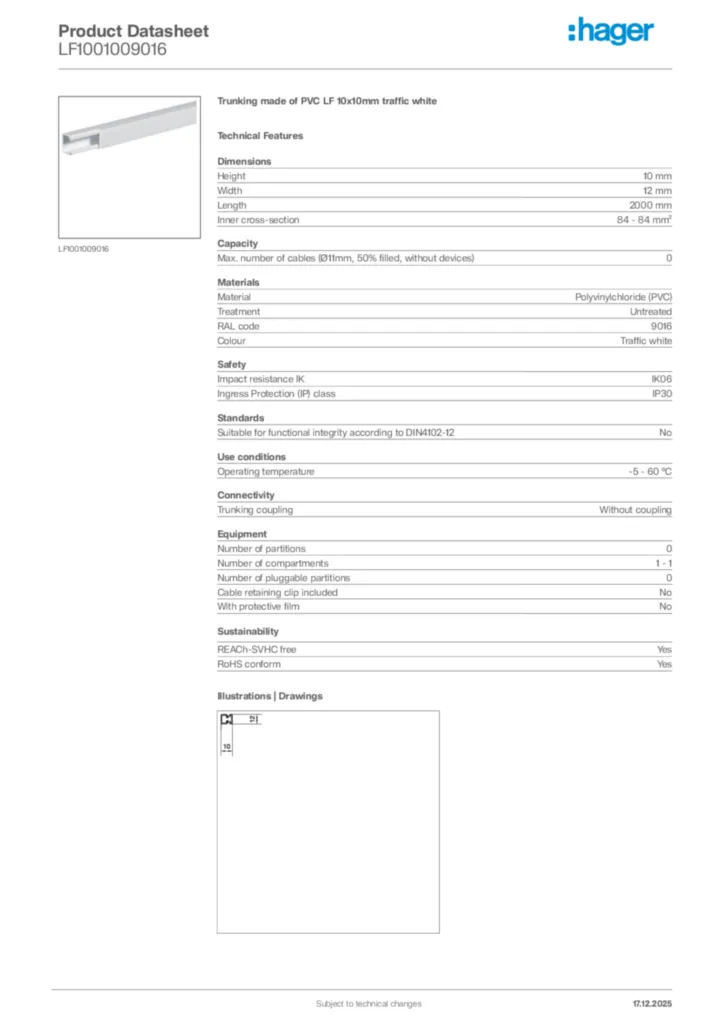

    • Product datasheet

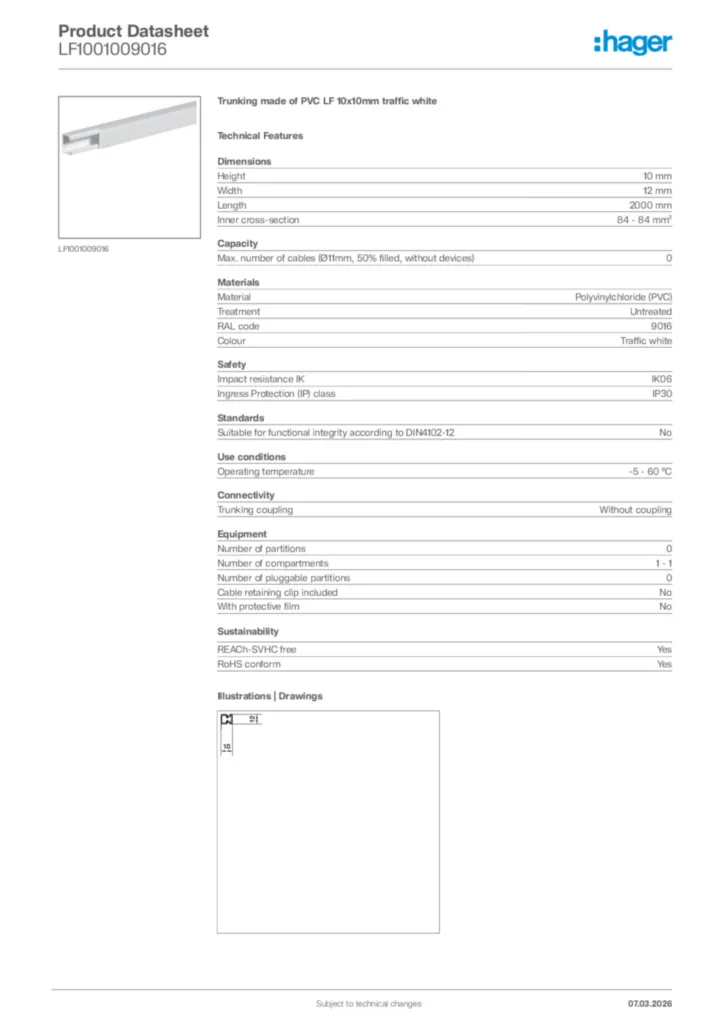

      Image Hager Product data sheet LF1001009016 | Hager Africa

      Hager Product data sheet LF1001009016

      Trunking made of PVC LF 10x10mm traffic white

      PDF

    • DXF files

      Image DXF files International 2023-02-02 | Hager Africa

      DXF files International 2023-02-02

      DXF
      364,76 kB

    • STEP files

      Image STEP files International 2023-02-02 | Hager Africa

      STEP files International 2023-02-02

      STP
      53,21 kB

    • With variables

      Image Product drawing | Hager Africa

      Product drawing

      Product Drawing International 2023-02-02

      PDF
      66,22 kB

    • Declaration of conformity

      Image T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE | Hager Africa

      T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE

      Declaration of conformity International 2023-02-07

      PDF
      52,28 kB
    More documentation

    Discover more of this product range

      5
    • 1
      LFS601506VERZ - endcap steel/plaster for LFS trunking 60x150mm galvanized
      LFS601506VERZ
      endcap steel/plaster for LFS trunking 60x150mm galvanized
    • 2
      LFS602003VERZ - external corner overlapping steel/plaster for LFS 60x200mm galvanized
      LFS602003VERZ
      external corner overlapping steel/plaster for LFS 60x200mm galvanized
    • 3
      LFS601508VERZ - T-piece overlapping steel/plaster for LFS trunking 60x150mm galvanized
      LFS601508VERZ
      T-piece overlapping steel/plaster for LFS trunking 60x150mm galvanized
    • 4
      LFS602004VERZ - internal corner overlapping steel/plaster for LFS 60x200mm galvanized
      LFS602004VERZ
      internal corner overlapping steel/plaster for LFS 60x200mm galvanized
    • 5
      LFS601505VERZ - flat angle overlapping steel/plaster for LFS trunking 60x150mm galvanized
      LFS601505VERZ
      flat angle overlapping steel/plaster for LFS trunking 60x150mm galvanized
