The Hager insulated busbar 1P 80A fork 16mm² (57 modules, 1000 mm) provides safe, fast distribution to single-pole devices. Rated 80 A at up to 415 V with 4.5 kV impulse withstand, it reliably feeds 57 modules. Its fork phase design simplifies wiring, saves space and time, and accepts rigid conductors up to 16 mm² for residential and commercial panels.
EAN
3250613741020
Packaging
50
Insulated busbar 1P 63A fork 10mm² 1000mm for 57 modules KDN180B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 2 products available

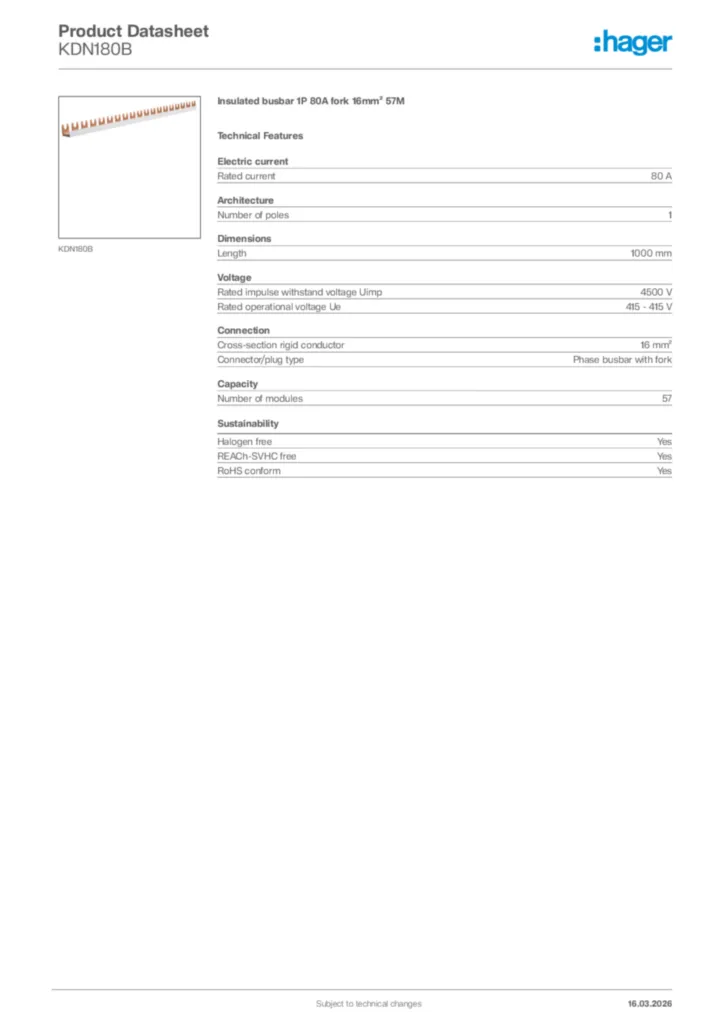

Technical properties
Electric current
-
Rated current IN80 A
Architecture
-
Number of poles1
-
Type of pole1P
Dimensions
-
Length1000 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules57
