Modular change-over switch 3x40A • HIM304 | Hager
Location Hager in the world

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN
    3250613140519
    Packaging
    1 Piece

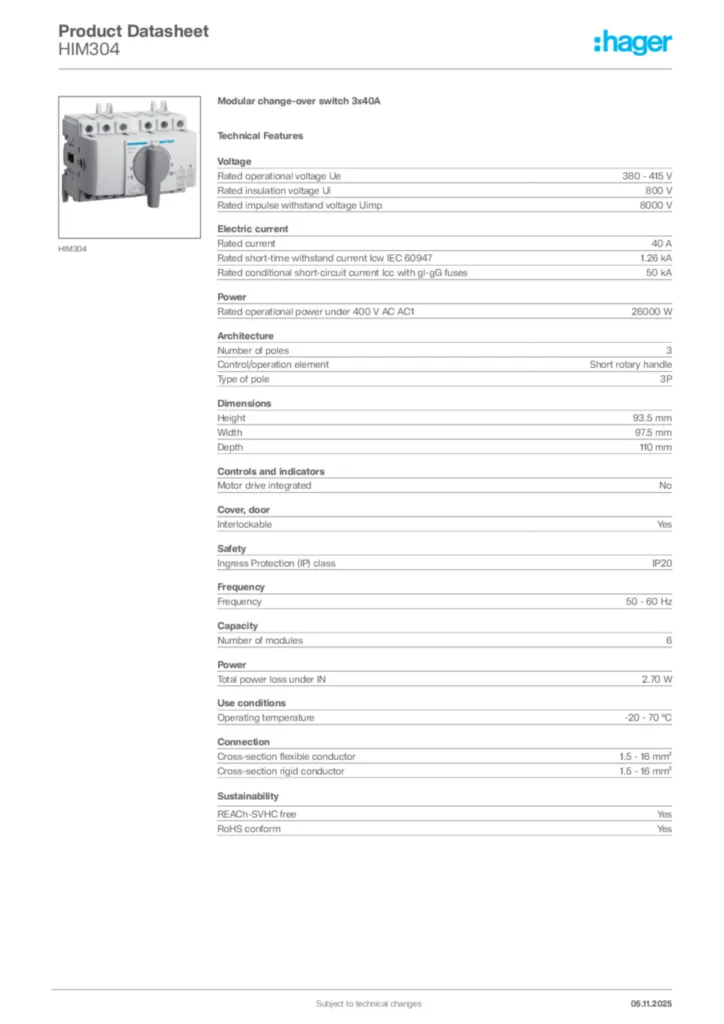

    Modular change-over switch 3x40A HIM304

    Complete your system

    Optional accessories

    • Terminal cover 2 products available
    • Switch oper­ating shaft 3 products available
    • Door coup­ling handle for switchgear 1 products available
    • Auxil­iary contact block 2 products available
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 1 products available

    Technical properties

    Voltage
    • Rated oper­a­tional voltage Ue
      380 - 415 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Elec­tric current
    • Rated current
      40 A
    • Rated short-­time with­stand current Icw IEC 60947
      1.26 kA
    • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
      50 kA
    Power
    • Rated oper­a­tional power under 400 V AC AC1
      26000 W
    • Total power loss under IN
      2.70 W
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Short rotary handle
    • Type of pole
      3P
    Dimen­sions
    • Height
      93.5 mm
    • Width
      97.5 mm
    • Depth
      110 mm
    Controls and indic­ators
    • Motor drive integ­rated
      No
    Cover, door
    • Inter­lock­able
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Capa­city
    • Number of modules
      6
    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -20 - 70 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1.5 - 16 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 16 mm²

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration HIM304
    PDF
    RoHS report HIM304
    PDF
