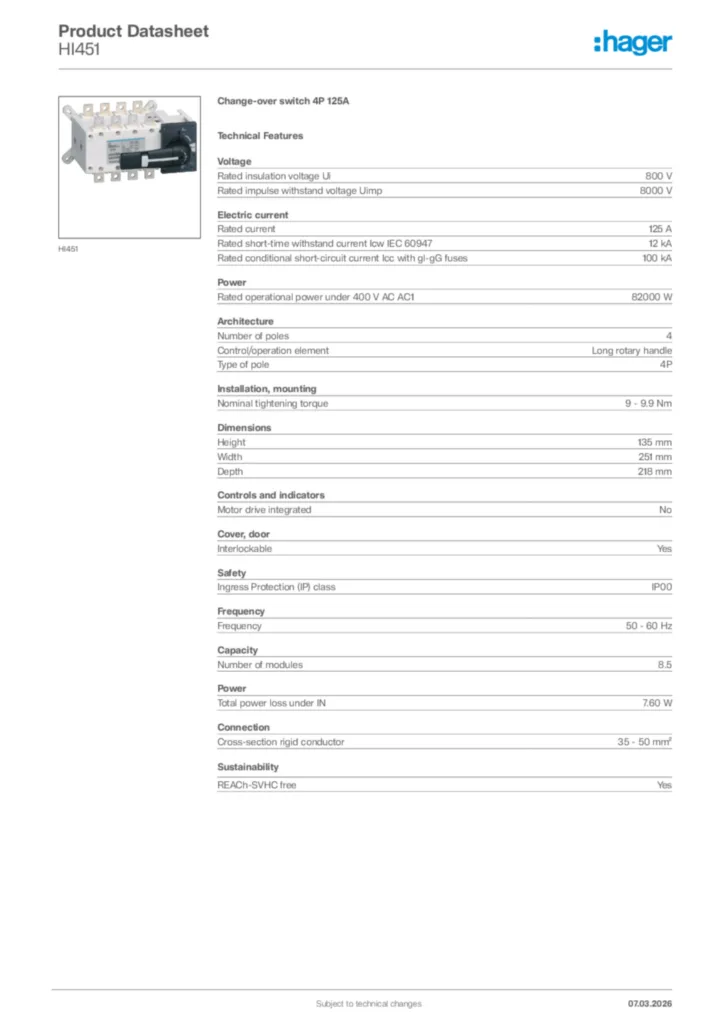

    Change-over switch 4P 125A HI451

    Complete your system

    Optional accessories

    • Auxil­iary contact block 1 products available
    • Door coup­ling handle for switchgear 1 products available
    • Terminal cover 2 products available
    • Switch oper­ating shaft 2 products available
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy 1 products available

    Technical properties

    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Elec­tric current
    • Rated current
      125 A
    • Rated short-­time with­stand current Icw IEC 60947
      12 kA
    • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
      100 kA
    Power
    • Rated oper­a­tional power under 400 V AC AC1
      82000 W
    • Total power loss under IN
      7.60 W
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Long rotary handle
    • Type of pole
      4P
    Install­a­tion, mounting
    • Nominal tight­ening torque
      9 - 9.9 Nm
    Dimen­sions
    • Height
      135 mm
    • Width
      251 mm
    • Depth
      218 mm
    Controls and indic­ators
    • Motor drive integ­rated
      No
    Cover, door
    • Inter­lock­able
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP00
    Capa­city
    • Number of modules
      8.5
    Frequency
    • Frequency
      50 - 60 Hz
    Connec­tion
    • Cross-sec­tion rigid conductor
      35 - 50 mm²

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes
