The Hager automatic transfer switch 4x1600A ensures seamless source changeover for large commercial and industrial loads. Rated 1600 A at 380-415 V, it handles up to 1.053 MW (AC1 at 400 V) with a 100 kA conditional short-circuit rating (gl/gG fuses). Four poles provide full isolation. Fixed built-in design for distribution boards, mounted on a plate (non-DIN rail), delivering robust, reliable continuity of supply.
EAN
3250613131913
Packaging
1 Piece
Automatic transfer switch 4P 800A 50kA 380-415V Fixed, mounting plate HIC492G
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 3 products available

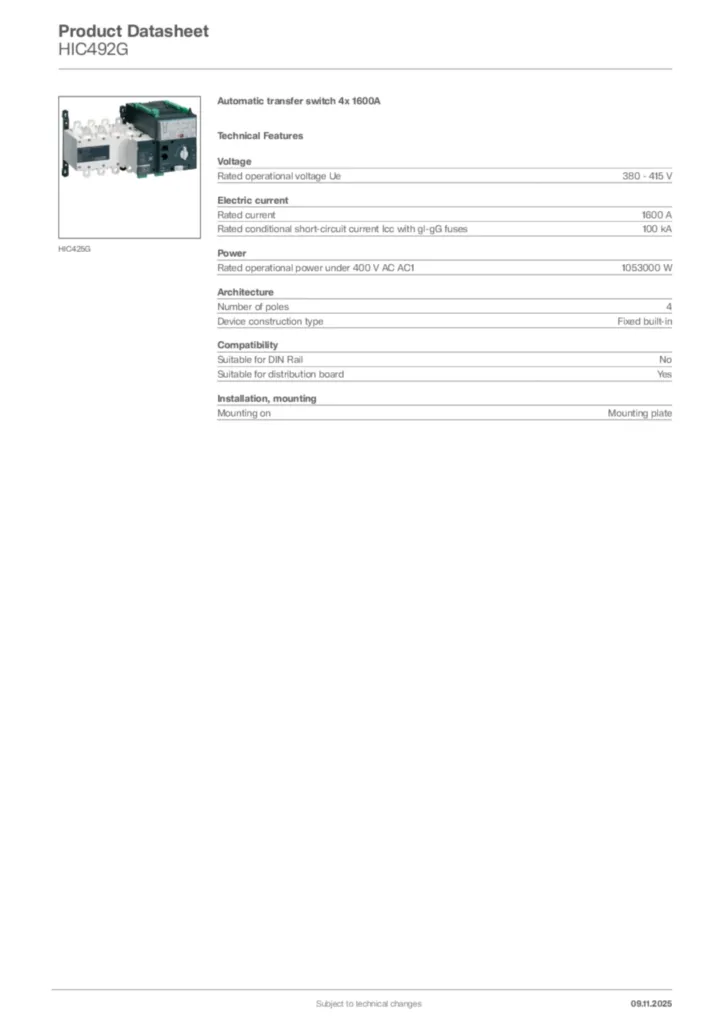

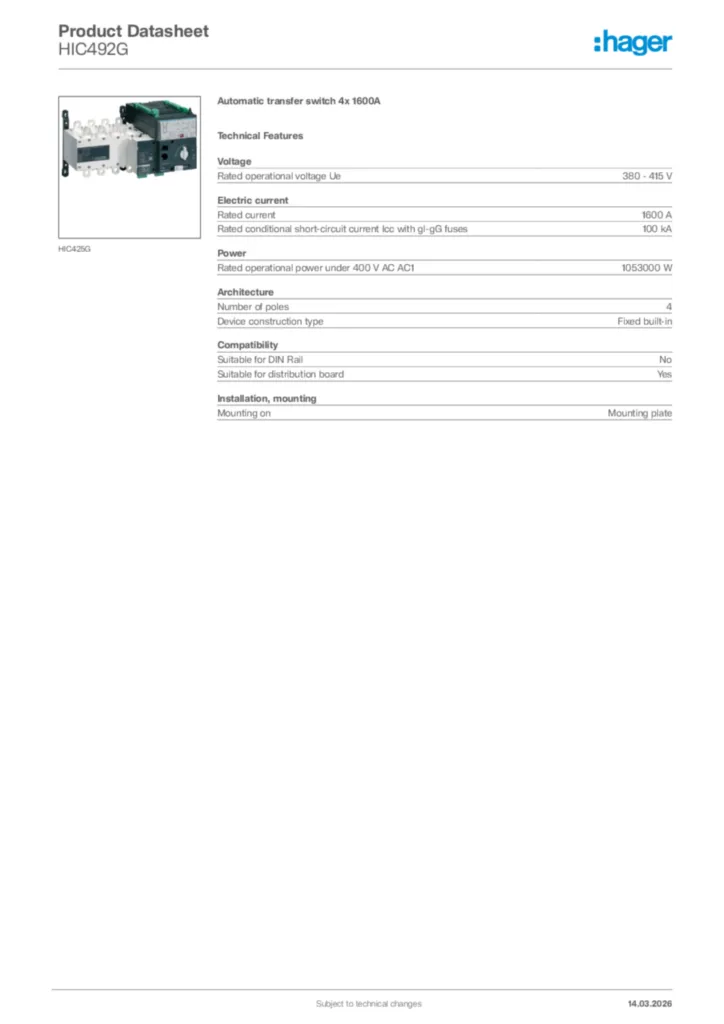

Technical properties
Voltage
-
Rated operational voltage Ue380 - 415 V
Electric current
-
Rated current1600 A
-
Rated conditional short-circuit current Icc with gl-gG fuses100 kA
Power
-
Rated operational power under 400 V AC AC11053000 W
Architecture
-
Number of poles4
-
Device construction typeFixed built-in
Compatibility
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Installation, mounting
-
Mounting onMounting plate
