The Hager motorized changeover switch 4P 100A 400V enables automatic, reliable transfer between power sources in three-phase systems. Rated 100 A, 380-415 V, AC-1 65 kW, with 50 kA Icc (gG fuses), it suits demanding networks. Fixed built-in, DIN rail or plate mount, for distribution boards. Four poles provide full switching, ensuring continuity for commercial and industrial applications.

EAN

3250613191245

Packaging

1 Piece

Automatic transfer switches up to 1600 A

Motorized changeover switch 4P 63A 400V AC1 41kW 50kA DIN rail HIC410A

Accessories
Technical properties
Environmental value
Documentations
More products

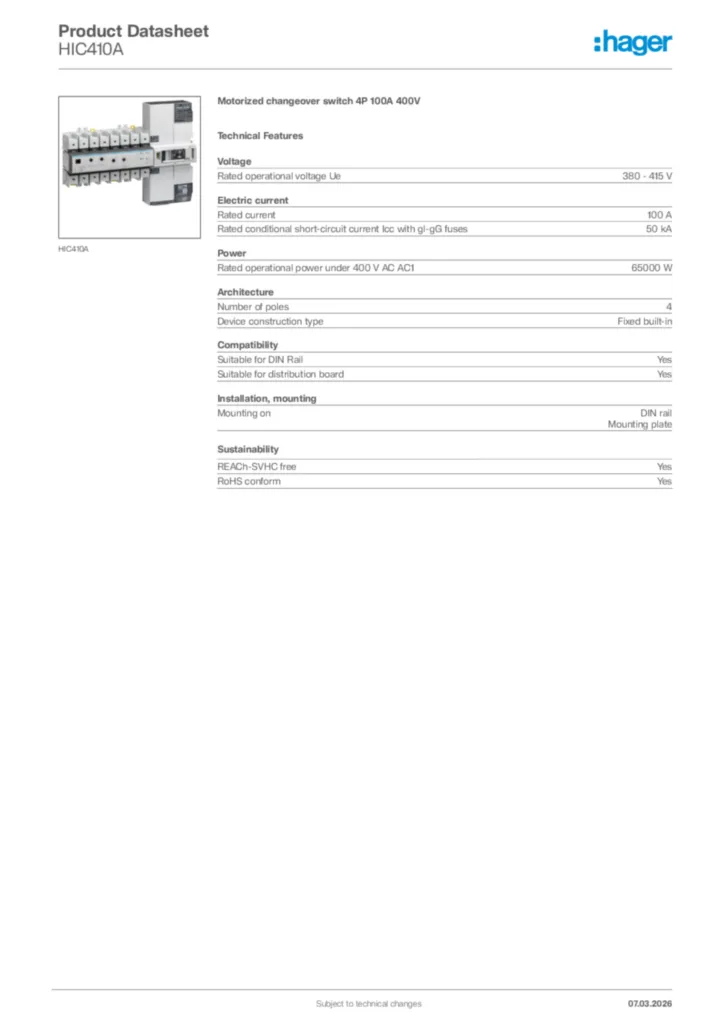

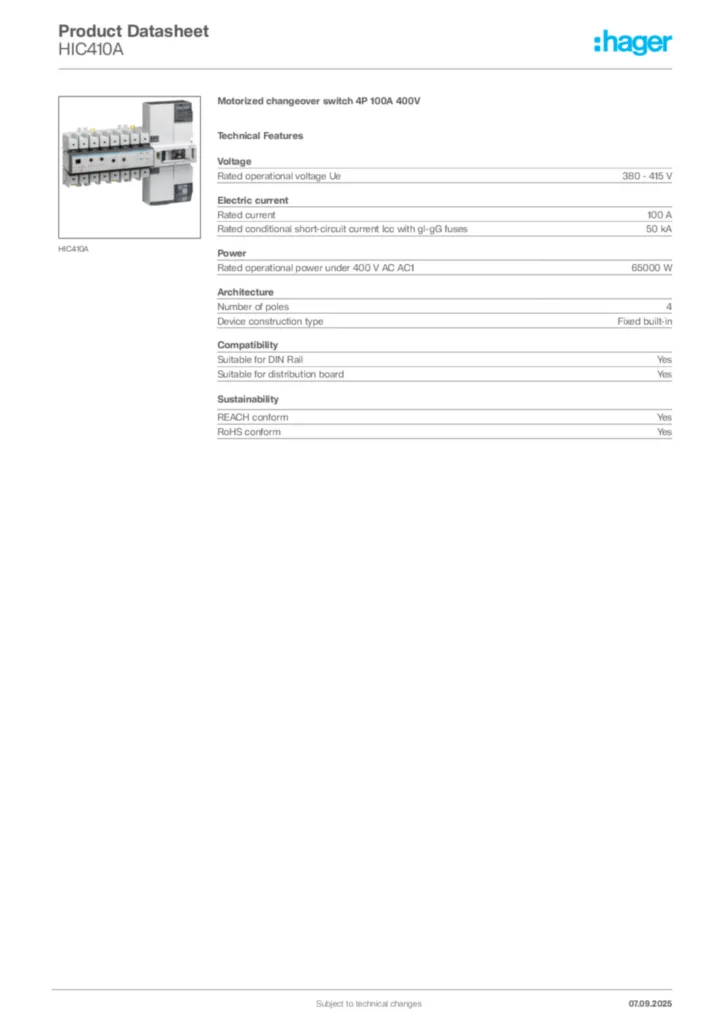

Download the data sheet

Complete your system

Accessories/spare parts for low-voltage switch technology 2 products available
Auxiliary contact block 1 products available
Terminal cover 2 products available

Technical properties

Rated operational voltage Ue

380 - 415 V

Rated current

100 A
Rated conditional short-circuit current Icc with gl-gG fuses

50 kA

Rated operational power under 400 V AC AC1

65000 W

Number of poles

4
Device construction type

Fixed built-in

Suitable for DIN Rail

Yes
Suitable for distribution board

Yes

Mounting on

DIN rail, Mounting plate

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
