The Hager 4P 1250A change-over switch ensures safe source transfer for high-power industrial and commercial installations. Rated Ui 1000 V, Uimp 12 kV, with Icw 64 kA and Icc 100 kA (gG fuses) for strong fault withstand. AC-1 822 kW at 400 V, 50-60 Hz. Long rotary handle, interlockable, -20 to 70 °C. Accepts 4×185 mm² conductors. IP00 for enclosure mounting.
EAN
3250613190194
Packaging
1 Piece
Motor Operator P250 230-240VAC 50-60Hz with Auto-Reset HI462
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available -
Accessories/spare parts for low-voltage switch technology 2 products available -
Auxiliary contact block 1 products available -
Door coupling handle for switchgear 1 products available -
Switch operating shaft 2 products available

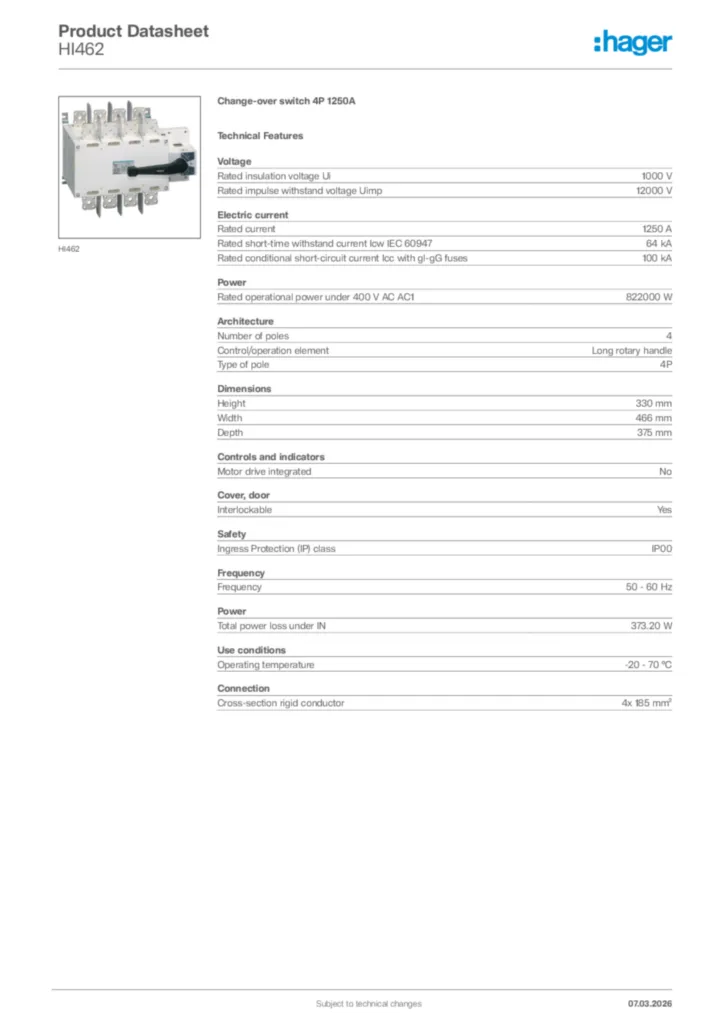

Technical properties
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
Electric current
-
Rated current IN1250 A
-
Rated short-time withstand current Icw IEC 6094764 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses100 kA
Power
-
Rated operational power under 400 V AC AC1822000 W
-
Power dissipation at IN373.20 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Dimensions
-
Height330 mm
-
Width466 mm
-
Depth375 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section rigid conductor4x 185 mm²
