Moulded Case Circuit Breaker h3 x630 LSnI 3P3D 250A 25kA FTC HHJ250GR

Name: HHJ250GR
Brand: Hager
SKU: HHJ250GR20

EAN

3250613198039

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

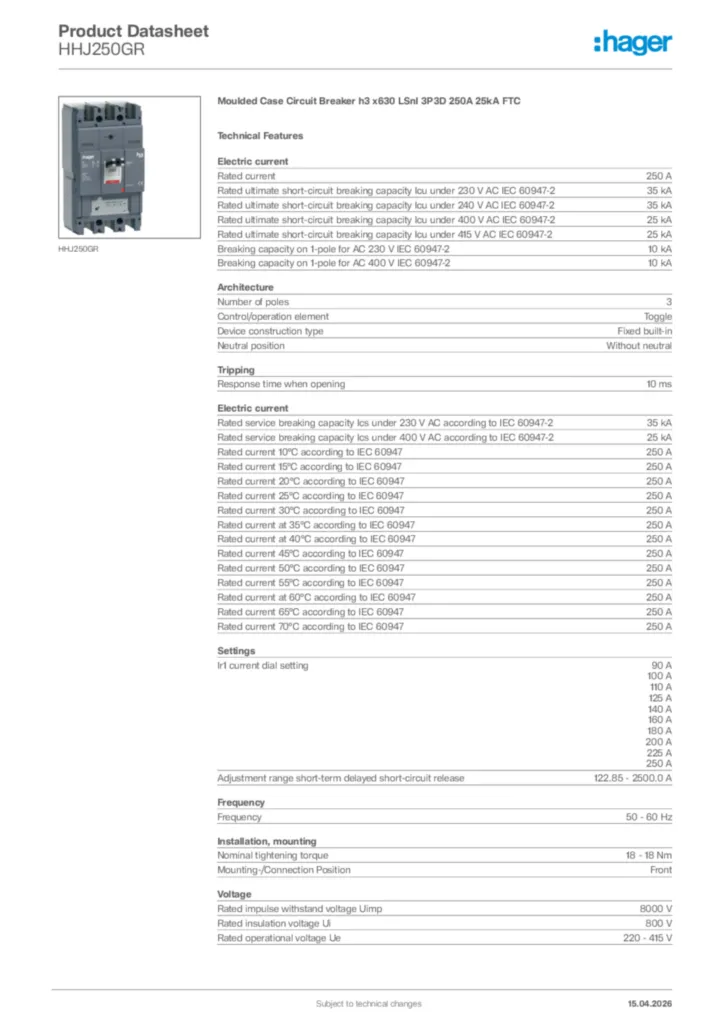

Download the data sheet

Complete your system

Connection Functions 6 products available
Auxiliaries contact block 5 products available
Auxiliaries cable adaptor 2 products available
Auxiliaries interlocking cable 2 products available
Under voltage coil 8 products available
Shunt release 5 products available

Technical properties

Rated current

250 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

35 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

35 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2

25 kA
Breaking capacity on 1-pole for AC 230 V IEC 60947-2

10 kA
Breaking capacity on 1-pole for AC 400 V IEC 60947-2

10 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

35 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

25 kA
Rated current 10°C according to IEC 60947

250 A
Rated current 15°C according to IEC 60947

250 A
Rated current 20°C according to IEC 60947

250 A
Rated current 25°C according to IEC 60947

250 A
Rated current 30°C according to IEC 60947

250 A
Rated current at 35°C according to IEC 60947

250 A
Rated current at 40°C according to IEC 60947

250 A
Rated current 45°C according to IEC 60947

250 A
Rated current 50°C according to IEC 60947

250 A
Rated current 55°C according to IEC 60947

250 A
Rated current at 60°C according to IEC 60947

250 A
Rated current 65°C according to IEC 60947

250 A
Rated current 70°C according to IEC 60947

250 A

Number of poles

3
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Without neutral

Response time when opening

10 ms

Ir1 current dial setting

90 A, 100 A, 110 A, 125 A, 140 A, 160 A, 180 A, 200 A, 225 A, 250 A
Adjustment range short-term delayed short-circuit release

122.85 - 2500.0 A

Frequency

50 - 60 Hz

Nominal tightening torque

18 - 18 Nm
Mounting-/Connection Position

Front

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 415 V

Trip unit

LSNI

Total power loss under IN

36.8 W
Power loss per pole at In

12.3 W

Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Ingress Protection (IP) class

IP4X

Operating temperature

-25 - 70 °C

Connector/plug type

Terminal

Cable material

Copper

Height

260 mm
Width

140 mm
Depth

150 mm

Motor drive integrated

No

Suitable for DIN Rail

No
Compatible with RDC AOB

Yes
Suitable for distribution board

Yes

Position power supply

Bidirectional

Long-time overload protection (ltd): delay (tr)

5 s
Short-time protection (std): current (Isd)

1.5, 2, 3, 4, 5, 6, 7, 8, 10
Short-time protection (std): delay (tsd)

100 ms
Instantaneous protection (li): dial setting coefficient

1

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
