Hager in the world
Load Break Switch Disconnector h3+ P630 4P 630A FTC HCW631AR
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Operating shaft for power breaker 3 products available -
Auxiliaries contact block 5 products available -
Auxiliaries cable adaptor 2 products available -
Auxiliaries interlocking cable 2 products available -
Under voltage coil 8 products available -
Shunt release 5 products available
Complete your system
-
HYC250H
PM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
-
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA055H
UVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXW046HKMotor Operator x630/P630 100-120VDC without Auto-Reset + key
-
HXW046HMotor Operator x630/P630 100-120VDC without Auto-Reset
-
HXW044HKMotor Operator x630/P630 100-240VAC without Auto-Reset + key
-
HXW044HMotor Operator x630/P630 100-240VAC without Auto-Reset
-
HXW043HKMotor Operator x630/P630 24-48VDC without Auto-Reset + key
-
HXW043HMotor Operator x630/P630 24-48VDC without Auto-Reset
-
HXW042HKMotor Operator x630/P630 100-240VAC with Auto-Reset + key
-
HXW042HMotor Operator x630/P630 100-240VAC with Auto-Reset
-
HXW041HKMotor Operator x630/P630 100-120VDC with Auto-Reset + key
-
HXW041HMotor Operator x630/P630 100-120VDC with Auto-Reset
-
HXW040HKMotor Operator x630/P630 24-48VDC with Auto-Reset + key
-
HXW040HMotor Operator x630/P630 24-48VDC with Auto-Reset
-
HXA039HPadlock (x160-P160-x250-P250-x630)
-
HXW890HKey lock kit for Draw-out kit for x630/P630
-
HXW888HKey lock kit for Rotary handle x630/P630
-
HXS999HRonis keylock (P160-P250-x630-P630)
-
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
-
HXW166HLink interlock kit x630/P630 - 4P
-
HXW066HMechanical interlock front cover x630/P630
-
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
-
HYW328HL connection terminal Plug-in (x630/P630) 1P
-
HYW015HSpread terminal extension x630/P630 4P (up to 630A)
-
HYW013HStraight terminal extension x630/P630 4P (up to 630A)
-
HYW008HCage terminal x630/P630 Cu/Al 4P 2x 35-300mm²
-
HYW002HCage terminal x630/P630 Cu/Al 4P 1x 35-300mm²
-
HYD034HRear connection h/x/P 4P 630A
-
HYW053HEarth plate for Spread terminal extension P630 4P
-
HYW051HEarth plate for Straight terminal extension P630 4P
-
HYW026HTerminal cover for Rear & Plug-in connection x630/P630 4P
-
HYW024HTerminal cover for Spread terminal extension x630/P630 4P
-
HYW022HTerminal cover for Straight terminal extension x630/P630 4P
Technical properties
Electric current
-
Rated current630 A
-
Rated short-time withstand current Icw IEC 609477.60 kA
Architecture
-
Number of poles4
-
Control/operation elementToggle
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
Frequency
-
Frequency50 - 60 Hz
Functions
-
Trip unitSwitch
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

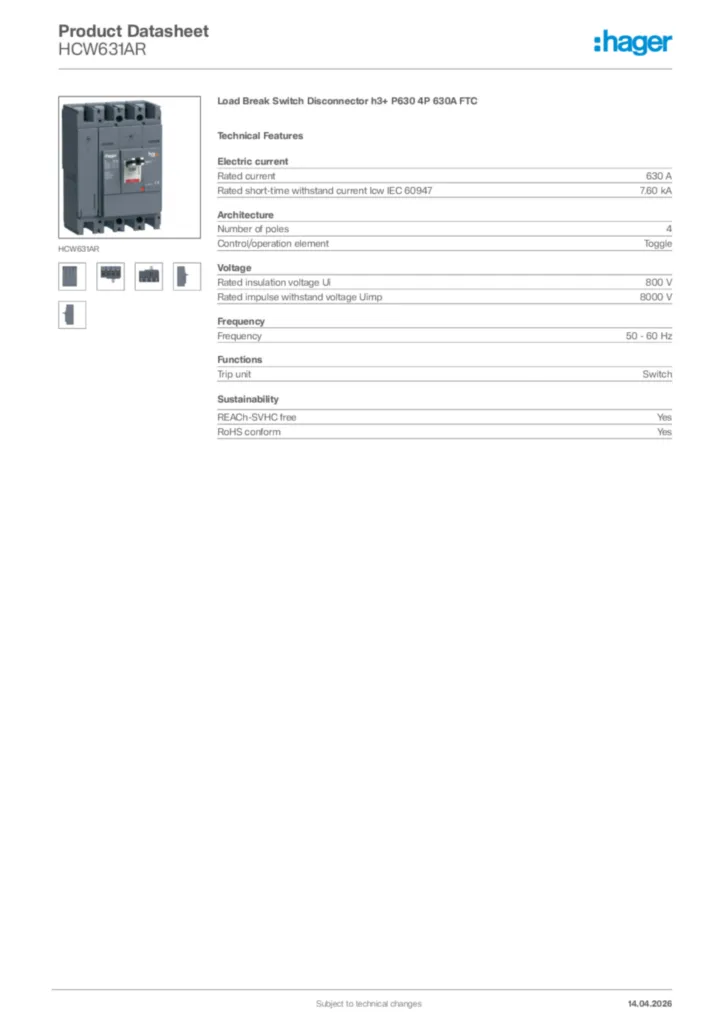

Hager Product data sheet HCW631AR
Load Break Switch Disconnector h3+ P630 4P 630A FTC
PDF -
Instruction manual
Instruction manual International 2025-01-21
PDF10,29 MB
More documentation
