    • Home
    • Catalog
    • High Power & Switching
    • MCCBs
    • Switch discon­­nectors in moulded case circuit breaker design
    • HCW630AR
    The Hager h3+ P630 3P 630A Load Break Switch Disconnector delivers reliable on-load switching and safe isolation for LV distribution. Rated 630 A with 7.6 kA Icw (IEC 60947), 3-pole toggle control suits main incomers and sub-mains. Ui 800 V and 8 kV impulse withstand boost insulation safety. 50-60 Hz compatible. FTC front terminal connection simplifies panel wiring and installation.
    EAN
    3250613198756
    Packaging
    1 Piece
    • Switch discon­­nectors in moulded case circuit breaker design

    Earth terminal block 6-way quick-connect spring 63A Ui 400V RAL6032 HCW630AR

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth terminal block 6-way quick-connect spring 63A Ui 400V RAL6032

    HCW630AR

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (67)
    • Oper­ating shaft for power breaker 3 products available
    • Auxil­i­aries contact block 5 products available
    • Auxil­i­aries cable adaptor 2 products available
    • Auxil­i­aries inter­locking cable 2 products available
    • Under voltage coil 8 products available
    • Shunt release 5 products available

    Complete your system

    • Oper­ating shaft for power breaker
    • Auxil­i­aries contact block
    • Auxil­i­aries cable adaptor
    • Auxil­i­aries inter­locking cable
    • Under voltage coil
    • Shunt release
    • Mech­anic accessories for low-­voltage compon­ents
    • Motor oper­ator
    • Locking inter­locking func­tions
    • Connec­tion Func­tions
    • Door coup­ling handle
    • Auxil­i­aries switch posi­tion
    • Phase separ­a­tion func­tions
    • Handle for power circuit breaker
    • Accessor­ies/s­pare parts for low-­voltage switch tech­no­logy
    • Terminal cover
    • Chassis power breaker
    • HXW912H

      Shaft 14x14mm 200mm (10x10mm)
      €0.00  / *
    • HXW913H

      Shaft 14x14mm 320mm (10x10mm)
      €0.00  / *
    • HXW915H

      Shaft 14x14mm 500mm (10x10mm)
      €0.00  / *
    • HYC250H

      PM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
      €0.00  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HYC352H

      PM Auxiliary circuit terminal -Body side- (2wires) (P160..630-h250..1000-x630)
      €0.00  / *
    • HYC353H

      PM Auxiliary circuit terminal -Body side- (3wires) (P160..630-h250..1000-x630)
      €0.00  / *
    • HXD068H

      Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)
      €0.00  / *
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)
      €0.00  / *
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250)
      €0.00  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      €0.00  / *
    • HYW256H

      Safety trip (x630/P630)
      €0.00  / *
    • HXS920H

      Shaft guide for handle S1&S2 (P160-P250-x630-P630)
      €0.00  / *
    • HXW046HK

      Motor Operator x630/P630 100-120VDC without Auto-Reset + key
      €0.00  / *
    • HXW046H

      Motor Operator x630/P630 100-120VDC without Auto-Reset
      €0.00  / *
    • HXW044HK

      Motor Operator x630/P630 100-240VAC without Auto-Reset + key
      €0.00  / *
    • HXW044H

      Motor Operator x630/P630 100-240VAC without Auto-Reset
      €0.00  / *
    • HXW043HK

      Motor Operator x630/P630 24-48VDC without Auto-Reset + key
      €0.00  / *
    • HXW043H

      Motor Operator x630/P630 24-48VDC without Auto-Reset
      €0.00  / *
    • HXW042HK

      Motor Operator x630/P630 100-240VAC with Auto-Reset + key
      €0.00  / *
    • HXW042H

      Motor Operator x630/P630 100-240VAC with Auto-Reset
      €0.00  / *
    • HXW041HK

      Motor Operator x630/P630 100-120VDC with Auto-Reset + key
      €0.00  / *
    • HXW041H

      Motor Operator x630/P630 100-120VDC with Auto-Reset
      €0.00  / *
    • HXW040HK

      Motor Operator x630/P630 24-48VDC with Auto-Reset + key
      €0.00  / *
    • HXW040H

      Motor Operator x630/P630 24-48VDC with Auto-Reset
      €0.00  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      €0.00  / *
    • HXW890H

      Key lock kit for Draw-out kit for x630/P630
      €0.00  / *
    • HXW888H

      Key lock kit for Rotary handle x630/P630
      €0.00  / *
    • HXS999H

      Ronis keylock (P160-P250-x630-P630)
      €0.00  / *
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
      €0.00  / *
    • HXW066H

      Mechanical interlock front cover x630/P630
      €0.00  / *
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
      €0.00  / *
    • HXW165H

      Link interlock kit x630/P630 - 3P
      €0.00  / *
    • HYW328H

      L connection terminal Plug-in (x630/P630) 1P
      €0.00  / *
    • HYW014H

      Spread terminal extension x630/P630 3P (up to 630A)
      €0.00  / *
    • HYW013H

      Straight terminal extension x630/P630 4P (up to 630A)
      €0.00  / *
    • HYW007H

      Cage terminal x630/P630 Cu/Al 3P 2x 35-300mm²
      €0.00  / *
    • HYW001H

      Cage terminal x630/P630 Cu/Al 3P 1x 35-300mm²
      €0.00  / *
    • HYD033H

      Rear connection h/x/P 3P 630A
      €0.00  / *
    • HXW901H

      Handle size 2 IP55 (10x10mm)
      €0.00  / *
    • HYC255H

      Position switch for Draw-out (P250-h250-h400-h630-h800-h1000)
      €0.00  / *
    • HYW019H

      Interphase barrier for x630/P630 3/4P
      €0.00  / *
    • HXW033H

      Toggle extansion P630
      €0.00  / *
    • HXW031H

      Rotary grey handle on door x/P630
      €0.00  / *
    • HXW030H

      Direct rotary handle for x630/P630
      €0.00  / *
    • HZC019

      External locking kit for Ronis EL11AP (125-1600A)
      €0.00  / *
    • HYW052H

      Earth plate for Spread terminal extension P630 3P
      €0.00  / *
    • HYW050H

      Earth plate for Straight terminal extension P630 3P
      €0.00  / *
    • HYW025H

      Terminal cover for Rear & Plug-in connection x630/P630 3P
      €0.00  / *
    • HYW023H

      Terminal cover for Spread terminal extension x630/P630 3P
      €0.00  / *
    • HYW021H

      Terminal cover for Straight terminal extension x630/P630 3P
      €0.00  / *
    • HYW330H

      Draw-out base for x630/P630 3P
      €0.00  / *
    • HYW200H

      Plug-in base for x630/P630 3P
      €0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      630 A
    • Rated short-­time with­stand current Icw IEC 60947
      7.60 kA
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Trip unit
      Switch

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP document International 2024-02-13
    PDF
    418,20 kB
    REACH declaration HCW630AR
    PDF
    RoHS report HCW630AR
    PDF

    Downloads

    • Image HCW630AR | Hager Africa

      Product Image HCW630AR

    • Product datasheet

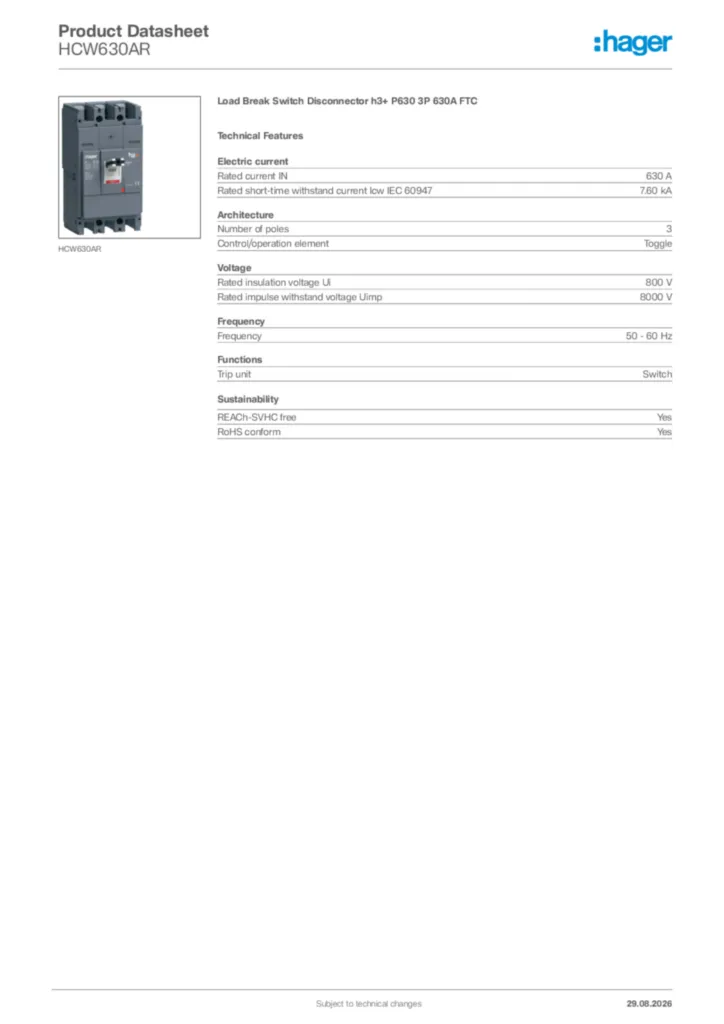

      Image Hager Product data sheet HCW630AR | Hager Africa

      Hager Product data sheet HCW630AR

      Load Break Switch Disconnector h3+ P630 3P 630A FTC

      PDF

    • Instruction manual

      Image Instruction manual International 2025-01-21 | Hager Africa

      Instruction manual International 2025-01-21

      PDF
      10,29 MB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-14 | Hager Africa

      Declaration of conformity en-US 2026-07-14

      PDF
      412,41 kB
      Image Declaration of conformity en-US 2026-07-15 | Hager Africa

      Declaration of conformity en-US 2026-07-15

      PDF
      325,14 kB
