The Hager h3+ P160 3P 160A load break switch disconnector provides reliable isolation and manual switching of three-phase circuits. With 2 kA Icw, 800 V Ui and 8 kV impulse withstand, it suits 50/60 Hz distribution boards. Toggle control, accepts 6-95 mm² rigid or 6-70 mm² flexible conductors—ideal for safe maintenance and circuit segregation.
EAN
3250613176891
VPE
1 piece
Load Break Switch Disconnector h3+ P160 4P 160A 800V Icw 2kA Toggle HCS160AC
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Auxiliaries contact block 5 product.page.accessories.products-available -
Shunt release 5 product.page.accessories.products-available -
Under voltage coil 8 product.page.accessories.products-available -
Auxiliaries cable adaptor 2 product.page.accessories.products-available -
Connection Functions 5 product.page.accessories.products-available -
Locking interlocking functions 5 product.page.accessories.products-available
product.page.accessories.title-modal
-
HYC250H
PM Auxiliary circuit terminal -Panel side- (P160..630 - h250..1000-x630)
-
HXA026HAlarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA021HAuxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA024HAlarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
-
HXA025HAuxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
-
HXA003H
Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA001HShunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA055H
UVR delayed 380-450V AC (x160-P160-x250-P250)
-
HXA011HUndervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HYS052HEarth plate for Spread terminal extension P160 3P
-
HYS050HEarth plate for Straight terminal extension P160 3P
-
HYS025HTerminal cover for Rear & Plug-in connection P160 3P
-
HYS023HTerminal cover for Spread terminal extension P160 3P
-
HYS021HTerminal cover for Straight terminal extension P160 3P
-
HYS321HTerminal cover for Plug-in base P160 3P
Technical characteristics
Electric current
-
Rated current IN160 A
-
Rated short-time withstand current Icw IEC 609472 kA
Architecture
-
Number of poles3
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor6 - 95 mm²
-
Cross-section flexible conductor6 - 70 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
Frequency
-
Frequency50 - 60 Hz
Functions
-
Trip unitSwitch
Dimensions
-
Height130 mm
-
Width90 mm
-
Depth97 mm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

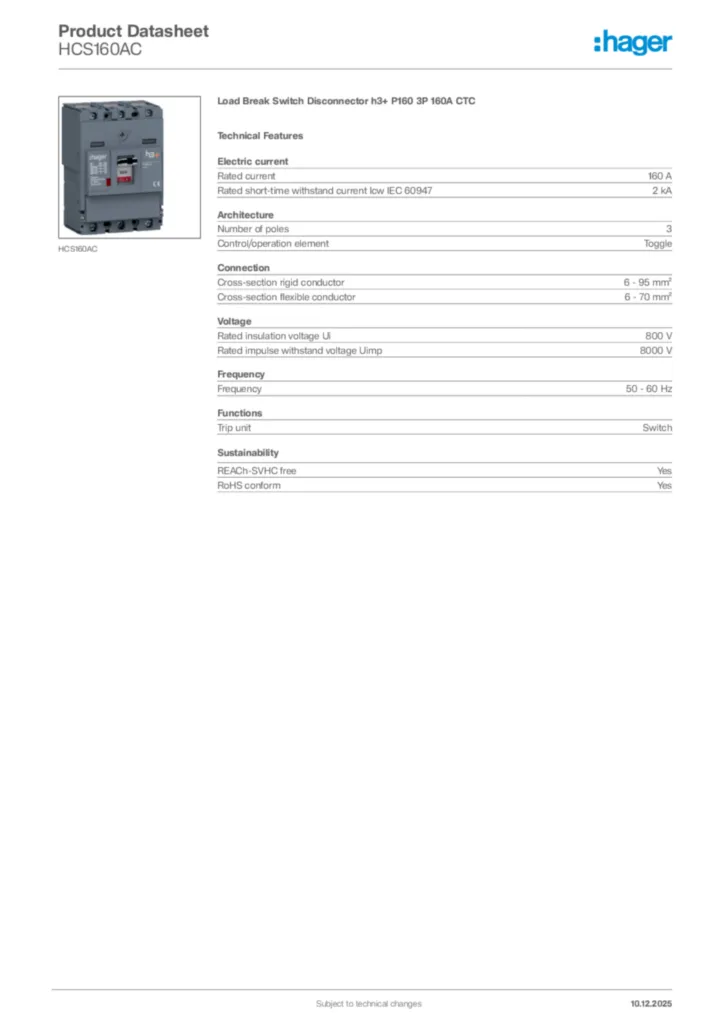

Hager Product data sheet HCS160AC
