The Hager Switch h1000 3P 1000A is a heavy-duty switch-disconnector for reliable isolation and control of high-power circuits. Rated 1000 A, 220-690 V (Ui 800 V, Uimp 8 kV), it offers fast 10 ms opening, IP4X safety and interlockability. Optional motor drive enables remote operation. Accepts 2x240 mm² conductors per pole, operates at 50-60 Hz and −25…+70 °C—ideal for industrial/commercial panels.

EAN

3250613363192

Packaging

1 Piece

Switch disconnectors in moulded case circuit breaker design

Switch disconnector 3P 1600A 800V Ui 8kV Uimp Toggle h1600 HCE970H

Accessories
Technical properties
Environmental value
Documentations
More products

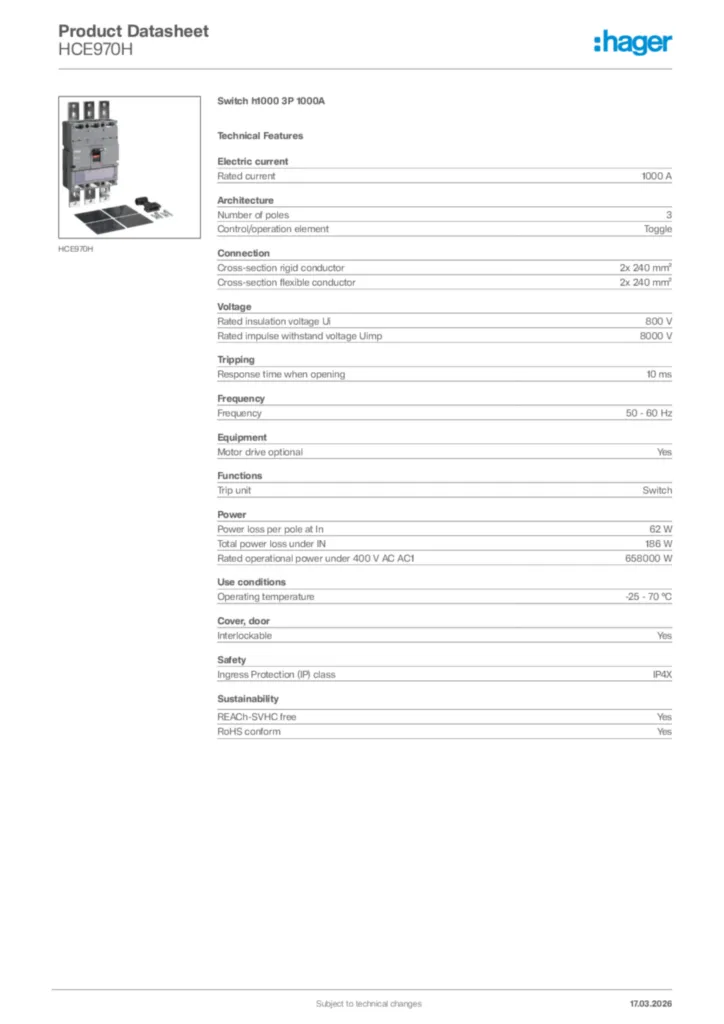

Download the data sheet

Complete your system

Terminal cover 2 products available
Shunt release 6 products available
Under voltage coil 8 products available
Auxiliaries contact block 4 products available
Auxiliaries interlocking cable 2 products available
Motor operator 2 products available

Technical properties

Rated current

1000 A

Number of poles

3
Control/operation element

Toggle

Cross-section rigid conductor

2x 240 mm²
Cross-section flexible conductor

2x 240 mm²

Rated insulation voltage Ui

800 V
Rated impulse withstand voltage Uimp

8000 V
Rated operational voltage Ue

220 - 690 V

Response time when opening

10 ms

Frequency

50 - 60 Hz

Motor drive optional

Yes

Trip unit

Switch

Power loss per pole at In

62 W
Total power loss under IN

186 W
Rated operational power under 400 V AC AC1

658000 W

Operating temperature

-25 - 70 °C

Interlockable

Yes

Ingress Protection (IP) class

IP4X

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
