    • Home
    • Catalog
    • High Power & Switching
    • MCCBs
    • Switch discon­­nectors in moulded case circuit breaker design
    • HCB251Z
    EAN
    3250613136789
    Packaging
    1 Piece
    • Switch discon­­nectors in moulded case circuit breaker design

    Switch X250 4P 250A HCB251Z

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Switch X250 4P 250A

    HCB251Z

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (37)
    • AOB MCCB type A-HI 1 products available
    • Under voltage coil 8 products available
    • Auxil­i­aries inter­locking cable 2 products available
    • Auxil­i­aries contact block 4 products available
    • Shunt release 6 products available
    • Motor oper­ator 2 products available

    Complete your system

    • AOB MCCB type A-HI
    • Under voltage coil
    • Auxil­i­aries inter­locking cable
    • Auxil­i­aries contact block
    • Shunt release
    • Motor oper­ator
    • Connec­tion Func­tions
    • DIN rail adapter
    • Phase separ­a­tion func­tions
    • Handle for power circuit breaker
    • Locking inter­locking func­tions
    • Terminal cover
    • HBB251H

      Electronic earth leakage add-on block 4P 250A Idn adjustable, time delay
      0.00 €  / *
    • HXA055H

      UVR delayed 380-450V AC (x160-P160-x250-P250)
      0.00 €  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA051H

      UVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA054H

      UVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA053H

      UVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXB068H

      Electrical interlock for Motor type A (x250-P250-h250)
      0.00 €  / *
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA003H

      Shunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      0.00 €  / *
    • HXC008H

      Shunt trip Release 110V DC (h250-h400-h630-h800-h1000)
      0.00 €  / *
    • HXB042H

      Motor operator x250 230-240VAC
      0.00 €  / *
    • HXB040H

      Motor operator x250 24V DC
      0.00 €  / *
    • HYB006H

      Collar term Al 1x95-240mm²(x250/h250) 4P
      0.00 €  / *
    • HYB002H

      Collar terminal x250 Al/Cu 4P
      0.00 €  / *
    • HYB010H

      Straight extension (x/P250-P250) 4P
      0.00 €  / *
    • HYB032H

      Rear connection (x/P250-P250) - 4P
      0.00 €  / *
    • HYB012H

      Spreader (x250-P250) 4P
      0.00 €  / *
    • HYB033H

      DIN Rail adaptator x250 3P/4P
      0.00 €  / *
    • HYB019H

      Interphase barrier (x250-h250) 3/4P
      0.00 €  / *
    • HXB031H

      Extended rotary handle x250
      0.00 €  / *
    • HXB030H

      Direct rotary handle x250
      0.00 €  / *
    • HXB065H

      Interlocking wire type x250
      0.00 €  / *
    • HYB026H

      Terminal cover x250 4P short
      0.00 €  / *
    • HYB022H

      Terminal cover x250 4P long
      0.00 €  / *
    • HYB028H

      Terminal cover for collar terminal for x250 4P
      0.00 €  / *
    • HYB024H

      Terminal cover x250 4P spreader
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      250 A
    • Rated short-­time with­stand current Icw IEC 60947
      3 kA
    Archi­tec­ture
    • Number of poles
      4
    • Control/­op­er­a­tion element
      Toggle
    Connec­tion
    • Cross-sec­tion rigid conductor
      35 - 185 mm²
    • Cross-sec­tion flex­ible conductor
      35 - 150 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Trip unit
      Switch

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration HCB251Z
    PDF
    Hager RoHS report HCB251Z
    PDF

    Downloads

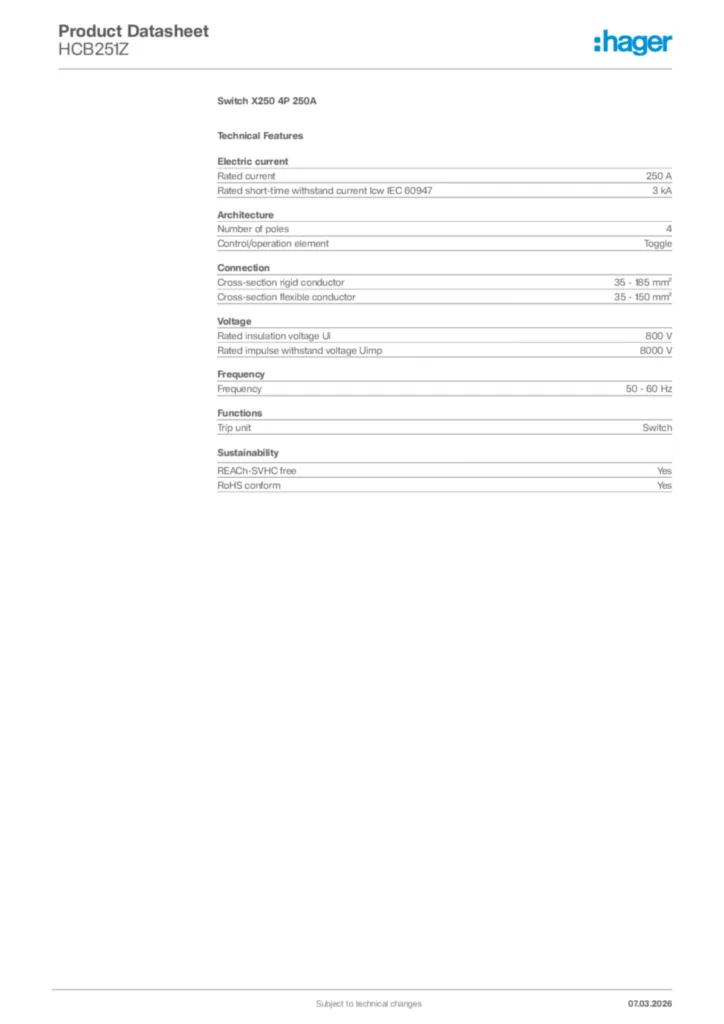

    • Product datasheet

      Image Hager Product data sheet HCB251Z | Hager Africa

      Hager Product data sheet HCB251Z

      Switch X250 4P 250A

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-03-03

      PDF
      187,58 kB
