The Hager FW flush enclosure provides 72 modules over 3 rows (6 rails), rated 125 A for indoor flush or hollow-wall use. Class II insulation, IP30 and IK07 steel body (RAL 9010) ensure safety and robustness. Its single transparent hinged door enables quick inspection. Includes neutral and earth terminal blocks and 4 conduit inlets. Compact niche approx. 507 x 565 x 115 mm, ideal for residential and commercial distribution.
EAN
3250610660478
Packaging
1 Piece
Empty Module 20 Slots Aluminium IP20 490mm FWU32GS
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Built-in field for telecommunications 2 products available -
Door/operating panel 3 products available -
Rail terminal bar 4 products available -
DIN rail 1 products available -
Mounting accessories 2 products available -
Cover strip 1 products available
Complete your system
-
FZ453NLock, univers, cylinder Nr.455, with 2 keys, for enclosure IP44/54
-
FZ452NLock, univers, cylinder Nr.405, with 2 keys, for enclosure IP44/54
-
FZ451NLock, univers, square 7mm, with 1 key, for enclosure IP44/54
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ597NLock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
-
FZ598NDoor shield with handle, for enclosure univers IP44
-
FZ226Sealing cap, univers, for Door of IP44/54 enclosures
Technical properties
Connection
-
Number of conduit inlets4
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onFlush mounting, Hollow wall
Electric current
-
Rated current125 A
Equipment
-
Number of rails6
-
Number of rows3
-
Number of section in width2
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules72
Dimensions
-
Height553 mm
-
Width603 mm
-
Depth125 mm
-
Built-in height502 mm
-
Built-in width603 mm
-
Built-in depth112 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors1
-
Type of handleHinged pattern handle
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialSteel
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

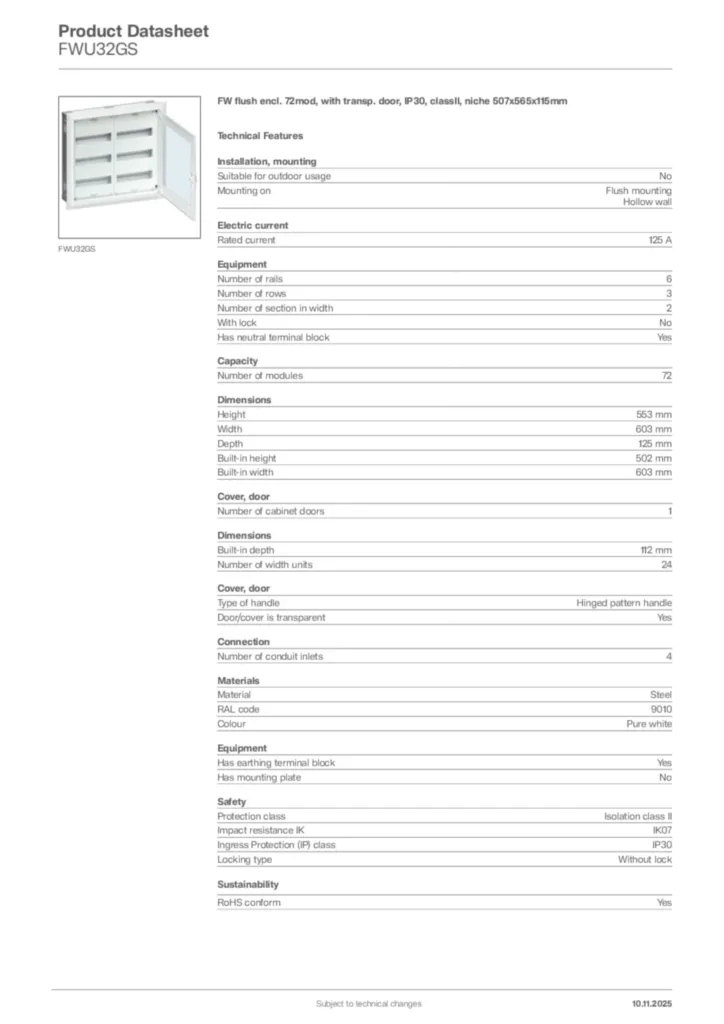

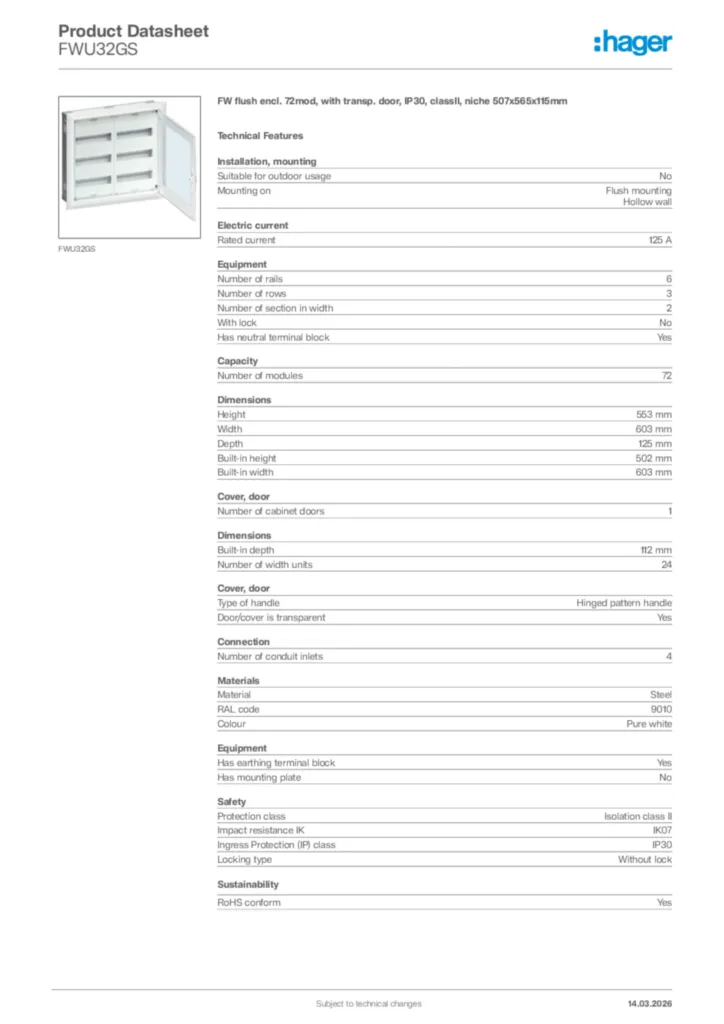

Product datasheet
Hager Product data sheet FWU32GS
FW flush encl. 72mod, with transp. door, IP30, classII, niche 507x565x115mm
PDF -
Handbook
Handbook en-GB 2023-04-11
PDF5,83 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-05-12
PDF332,34 kB
Declaration
Declaration of conformity International 2021-01-08
PDF289,50 kB
