    • FZ132F
    The Hager univers FW frame with plain door provides a robust, clean finish for FWU32.. enclosures in indoor installations. IP30 ensures reliable touch protection, while steel, powder-coated RAL9010 construction offers durability and matching aesthetics. Stop-door design improves safe access. Dimensions 553×603×13 mm optimise panel frontage for tidy, protected distribution assemblies. Suitable for 90SL configurations.
    EAN
    3250612766499
    VPE
    1 piece
    • FW flush-­mounted distri­bu­tion boards

    Univers FW frame plain door IP30 RAL9010 553x353x13 mm steel, bar lock FZ132F

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Univers FW frame plain door IP30 RAL9010 553x353x13 mm steel, bar lock

    FZ132F

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

    • Mounting accessories 1 product.page.accessories.products-available

    product.page.accessories.compatible.title

    • product.page.accessories.referenced_by.title 3 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Mounting accessories
    • FZ279

      Deep-adjustment kit, 12 to 32mm, for frame of FW flush enclosure FWxxU.
      €0.00  / *

    product.page.accessories.referenced_by.title

    • FWU31S

      FW flush encl. 3-rows 36 modules, IP30, classII, niche 507x315x115mm
      €0.00  / *
    • FWU32S

      FW flush encl. 3-rows 72 modules, IP30, classII, niche 507x565x115mm
      €0.00  / *
    • FWU32GS

      FW flush encl. 72mod, with transp. door, IP30, classII, niche 507x565x115mm
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Height
      553 mm
    • Width
      603 mm
    • Depth
      13 mm
    Cover, door
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Stop door
    Mater­ials
    • RAL code
      9010
    • Colour
      Pure white
    • Product colour
      Pure white
    • Material
      Steel
    • Treat­ment
      Powder coated
    Safety
    • Ingress Protec­tion (IP) class
      IP30

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP_HAGE-00954-V02.01-EN
    PDF
    10,41 MB
    REACH declaration FZ132F
    PDF
    RoHS report FZ132F
    PDF

    Downloads

    • Image FZ132F | Hager UK

      Product Image FZ132F

    • GeneratedProductDatasheet

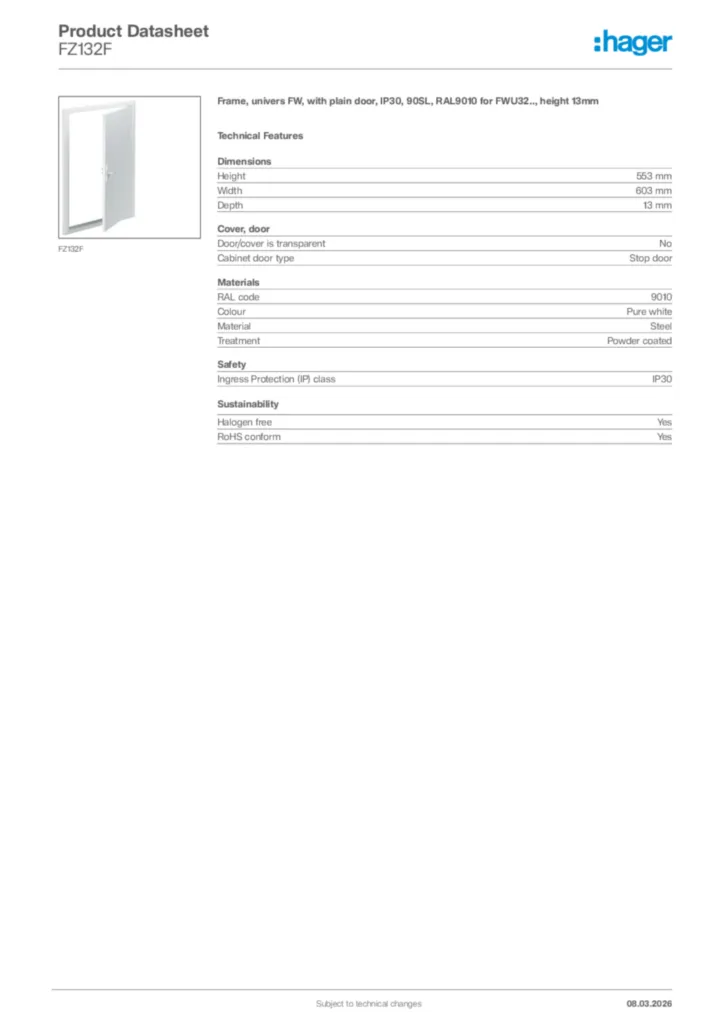

      Image Hager Product data sheet FZ132F | Hager UK

      Hager Product data sheet FZ132F

      Frame, univers FW, with plain door, IP30, 90SL, RAL9010 for FWU32.., height 13mm

      PDF

    • ProductECDeclaration

      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      1,07 MB
