Trunking 12x50,L=2,0m,traffic white ATA125019016

EAN
4012740016889
Packaging
48 Meters

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Trunking 12x50,L=2,0m,traffic white

ATA125019016

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (15)
    • Cable clip/re­tainer for install­a­tion duct 1 products available
    • Nail 2 products available
    • Junc­tion box for install­a­tion duct 2 products available
    • Surface-­mounted housing for flush-­mounted switching device 4 products available
    • External corner for install­a­tion duct 1 products available
    • Internal corner for install­a­tion duct 1 products available

    Complete your system

    • Cable clip/re­tainer for install­a­tion duct
    • Nail
    • Junc­tion box for install­a­tion duct
    • Surface-­mounted housing for flush-­mounted switching device
    • External corner for install­a­tion duct
    • Internal corner for install­a­tion duct
    • Flat angle for install­a­tion duct
    • End piece for install­a­tion duct
    • Joint cover for install­a­tion duct
    • T-piece for install­a­tion duct
    • ATA99050

      Cable retainers for ATA trunking with width 50mm, 30 pieces
      0.00 €  / *
    • AFTH1525CLOUS

      0.00 €  / *
    • AFCLOUSM125

      Nail L=25mm, 250 pieces
      0.00 €  / *
    • ATA707599016

      Junction box 75x75mm for ATEHA trunking in traffic white
      0.00 €  / *
    • ATA711599016

      Junction box 115x115mm for ATEHA trunking in traffic white
      0.00 €  / *
    • ATA806099016

      Universal outlet box adaptor for ATHEA trunking 60mm in traffic white
      0.00 €  / *
    • ATA806199016

      Universal outlet box for ATHEA/LF trunking 60mm in traffic white
      0.00 €  / *
    • ATA125399016

      Adaptor for Alréa socket outlet for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125199016

      Adaptor for ASL-L socket outlet for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125039016

      External corner for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125049016

      Internal corner for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125059016

      Flat corner for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125069016

      End cap for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125079016

      Joint cover for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *
    • ATA125089016

      T piece for ATHEA trunking 12x50mm in traffic white
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      13 mm
    • Width
      52 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      550 - 550 mm²
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      3
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 65 °C
    Connectivity
    • Trunking coup­ling
      Without coup­ling
    Equip­ment
    • Number of parti­tions
      1
    • Number of compart­ments
      2 - 2
    • Number of plug­gable parti­tions
      0
    • Cable retaining clip included
      Yes
    • With protective film
      No
    Install­a­tion, mounting
    • Base perfor­a­tion
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Mini-trunking / Skirting trunking / Corner trunking - series ATA - SL - EK
    PDF
    399,87 kB
    Hager REACH declaration ATA125019016
    PDF
    Hager RoHS report ATA125019016
    PDF

    Downloads

    • Image ATA125019016 | Hager Africa

      Product Image ATA125019016

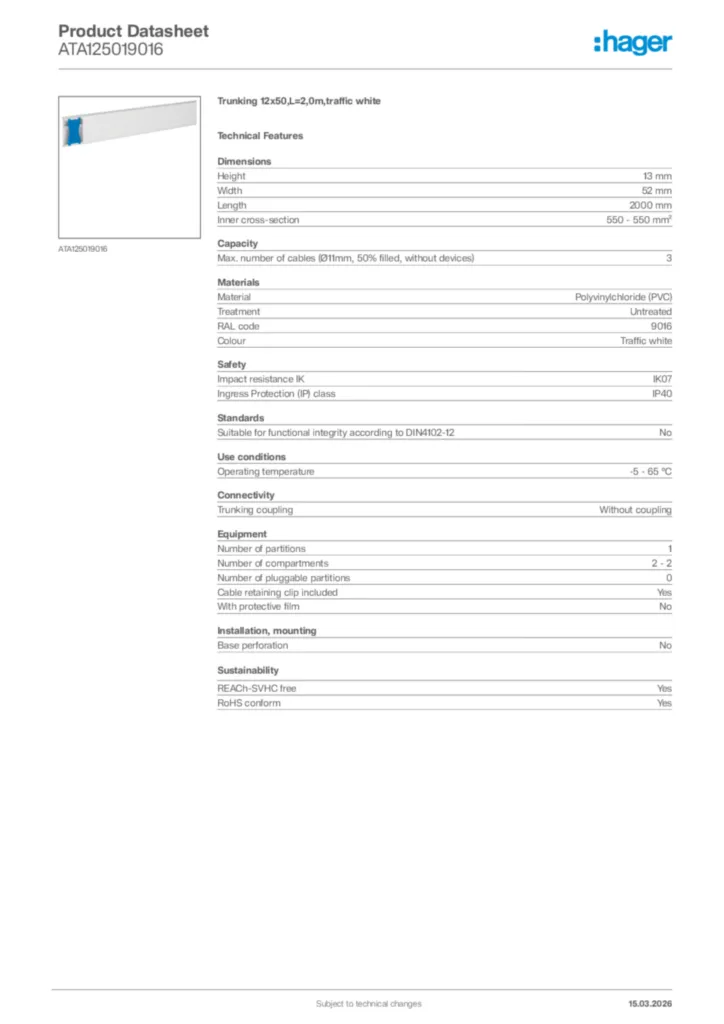

    • Product datasheet

      Image undefined | Hager Africa

      undefined

      PDF

    • Product licence

      Image Product_Licence_NF004_1076_ATA | Hager Africa

      Product_Licence_NF004_1076_ATA

      Product licence International 2021-02-12

      PDF
      1,01 MB

    • Declaration of conformity

      Image EU-Declaration ATA T008A FR_EN 25072019 | Hager Africa

      EU-Declaration ATA T008A FR_EN 25072019

      Declaration of conformity en-US, fr-FR 2023-10-31

      PDF
      41,06 kB
