The Hager KNX room controller with colour display and integrated bus coupling unit centralises control of switching, dimming, shutters and room temperature. Three actuation points with LED feedback, keylock, holiday mode and frost protection boost comfort and safety. Flush-mount, black RAL9005 thermoplastic. Internal/external temperature sensing with comfort/standard/night modes. 10 mA KNX bus, -5 to 45°C.
EAN
4011334415930
VPE
1 piece
DIN Rail Adapter P160 for 3P/4P, Plastic 80660100
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.must_have_products.title
content.list.see.all (10)
Accessories mandatory
-
80960182Cover for KNX thermostats + room cont.s, S.1/B.3/B.7, white glossy
-
80960180Cover for KNX thermostats + room cont.s, S.1/B.3/B.7, p. white, matt, plastic
-
80960179Cover for KNX thermostats + room cont.s, K.1, p. white glossy
-
80960175Cover for KNX thermostats + room cont.s, K.1, ant., matt
-
80960173ATC deco cover K.x stainless steel
-
80960171Cover for KNX thermostats + room cont.s, K.5, al., matt, lacq.
-
80960129Cover for KNX thermostats + room cont.s, Q.x, p. white velvety
-
80960126Cover for KNX thermostats + room cont.s, Q.x, ant. velvety, lacq.
-
TXA114Power supply 1x 30V DC KNX + 1x 24V DC
-
TGA200Power supply 24 V DC 1A
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer10 mA
Dimensions
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes26 mm
-
Height71 mm
-
Width71 mm
-
Depth46.70 mm
Equipment
-
Number of actuation points3
Controls and indicators
-
With LED indicationYes
Materials
-
ColourBlack
-
RAL codeSimilar to RAL 9005
-
MaterialThermoplastic
Screen
-
With displayYes
Texts
-
FunctionDeactivate automatic function, For switch, dimmer and shutter functions, With keylock, With holiday switching, With frost protection function
-
Installation modeWith spreader claws, For flush-mounted and hollow wall mounting, For single mounting, For vertical mounting
-
TemperatureAdditional connection for external temperature sensor, Comfort, standard and night temperature, Temperature measurement via internal and/or connectable Temperature sensor with average determination
Scope of delivery
-
Bus connection includedYes
Data act compliance
-
Is generating dataYes
-
Data typesBasic information, Generic KNX telegram, Temperature control, Temperature measurement
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

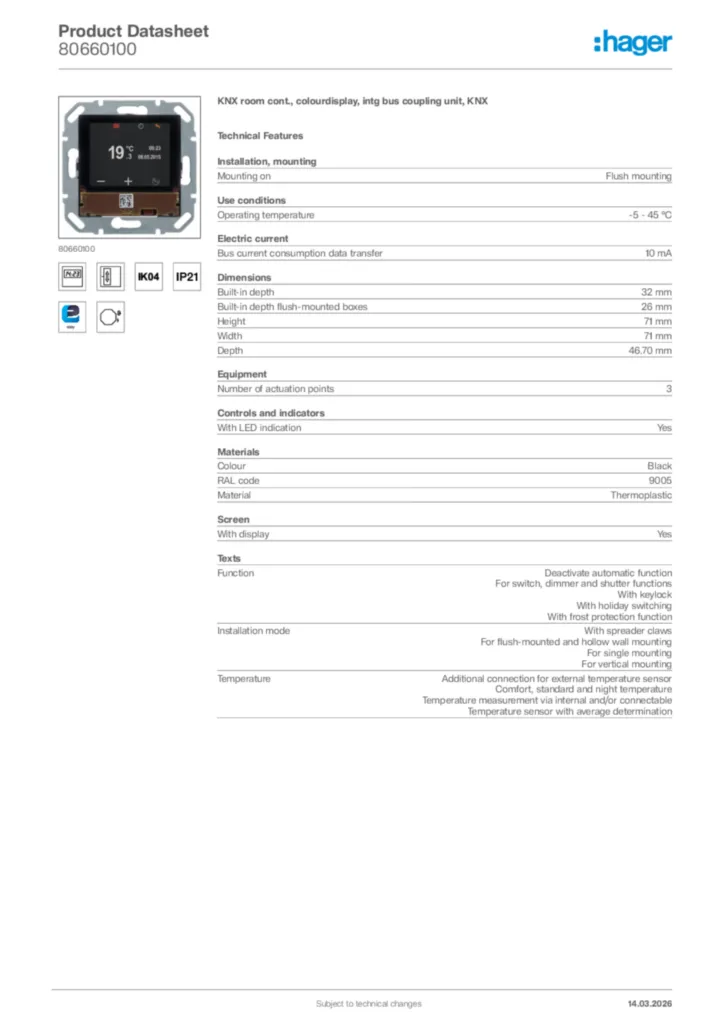

Hager Product data sheet 80660100
