Push-button 4gang, lab. field, + RGB LED, int. temp. sensor, KNX - K.1, p.white 80164770

Accessories
Technical properties
Environmental value
Documentations
More products

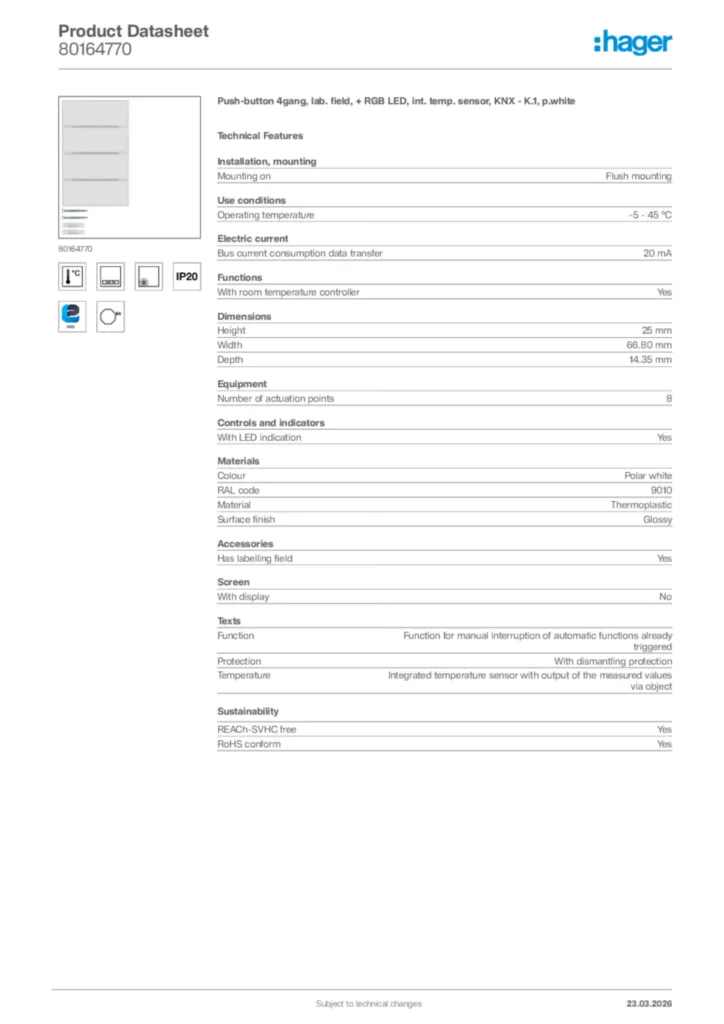

Download the data sheet

Complete your system

80040011

Bus coupling unit flush-mtd, ext. temp. sensor, KNX

80040001

Bus coupling unit flush-mtd, ext. temp. sensor, KNX

Referenced by 1 products available

Technical properties

Mounting on

Flush mounting

Operating temperature

-5 - 45 °C

Bus current consumption data transfer

20 mA

With room temperature controller

Yes

Height

25 mm
Width

66.80 mm
Depth

14.35 mm

Number of actuation points

8

With LED indication

Yes

Colour

Polar white
RAL code

Similar to RAL 9010
Material

Thermoplastic
Surface finish

Glossy

Has labelling field

Yes

With display

No

Function

Function for manual interruption of automatic functions already triggered
Protection

With dismantling protection
Temperature

Integrated temperature sensor with output of the measured values via object

Bus connection included

No

Is generating data

Yes
Data types

Basic information, Generic KNX telegram
Data formats

KNX (TP)
Estimated daily data volume

10 KB - 100 KB
Real time data generation

Yes
Data stored on device

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
