The Hager KNX 3-gang push-button with labeling field, RGB LED feedback, and integrated temperature sensor enables precise control of lighting, blinds, and scenes in KNX S.1/B.3/B.7 systems. Six actuation points and manual override enhance usability; the sensor reports values to the bus. Flush-mounted, anthracite RAL7016 glossy thermoplastic with dismantling protection. 20 mA bus load, -5…45°C.
EAN
3250617153676
VPE
1 piece
TV/SAT splitter 2-way F-socket 5-2400 MHz DIN-rail/plate mount 80163785
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.must_have_products.title
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 1 product.page.accessories.products-available
product.page.accessories.referenced_by.title
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Height55.30 mm
-
Width55.80 mm
-
Depth13.85 mm
Equipment
-
Number of actuation points6
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAnthracite
-
RAL codeSimilar to RAL 7016
-
MaterialThermoplastic
-
Surface finishGlossy
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Scope of delivery
-
Bus connection includedNo
Data act compliance
-
Is generating dataYes
-
Data typesBasic information, Generic KNX telegram
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

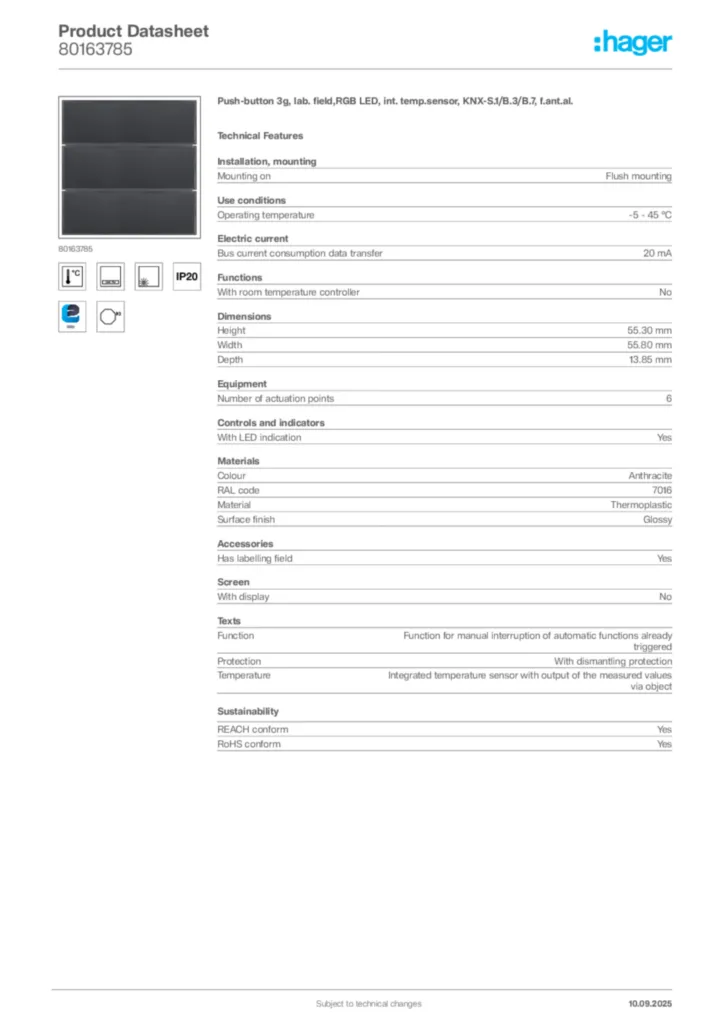

Hager Product data sheet 80163785
