Push-button 2gang, + RGB LED, internal temp. sensor, KNX - Q.1/Q.3, p. white 80142329
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 1 products available
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerYes
Dimensions
-
Height58.70 mm
-
Width58.70 mm
-
Depth33.70 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialThermoplastic
-
Surface finishVelvety
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

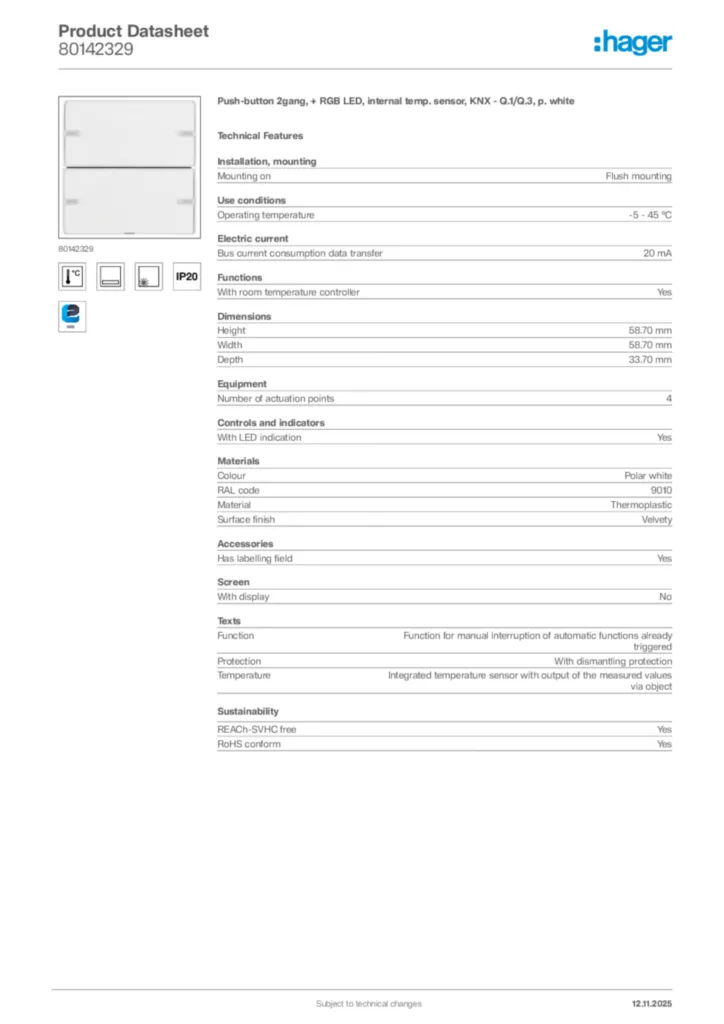

Product datasheet
Hager Product data sheet 80142329
Push-button 2gang, + RGB LED, internal temp. sensor, KNX - Q.1/Q.3, p. white
PDF -
Declaration of conformity
Declaration of conformity International 2022-11-22
PDF323,59 kB
Declaration of conformity International 2023-02-22
PDF318,66 kB
Declaration of conformity International 2023-02-22
PDF245,83 kB
EU Declaration of Conformity
Declaration of conformity en-US 2026-01-28
PDF432,75 kB
More documentation
