Building automation

Push-button module 1gang, intg temp. sensor, intg bus coupling unit, KNX - K.1 80141170

Name: 80141170
Brand: Hager
SKU: 80141170P1

EAN

3250617153751

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

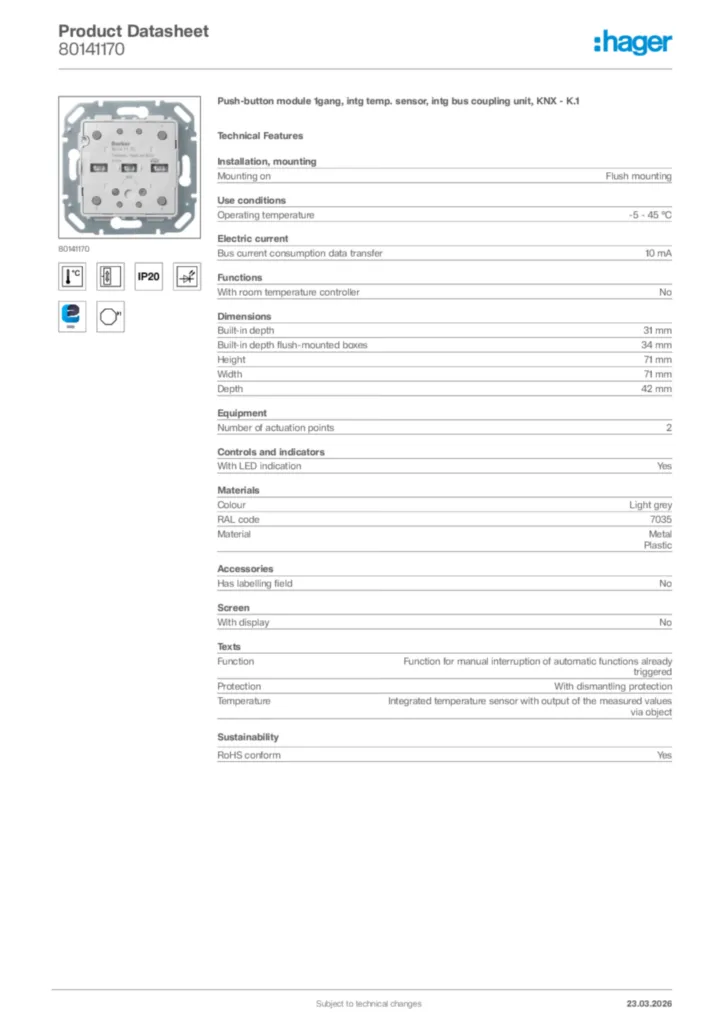

Download the data sheet

Complete your system

80960229

Cover for 1gang for push-button module, clearlens, Q.x, p. white velvety

80960226

Cover for 1gang for push-button module, clearlens, Q.x, ant. velvety, lacq.

80960279

Cover for 1gang for push-button module, clearlens, K.1, p. white glossy

80960275

Cover for 1gang for push-button module, clearlens, K.1, ant., matt

80960271

Cover for 1gang for push-button module, clearlens, K.5, al., matt, lacq.

80960273

Cover f. 1gang f. push-button module, clearlens, K.5, stainl. steel matt, lacq.

Technical properties

Mounting on

Flush mounting

Operating temperature

-5 - 45 °C

Bus current consumption data transfer

10 mA

With room temperature controller

No

Built-in depth

31 mm
Built-in depth flush-mounted boxes

34 mm
Height

71 mm
Width

71 mm
Depth

42 mm

Number of actuation points

2

With LED indication

Yes

Colour

Light grey
RAL code

7035
Material

Metal, Plastic

Has labelling field

No

With display

No

Function

Function for manual interruption of automatic functions already triggered
Protection

With dismantling protection
Temperature

Integrated temperature sensor with output of the measured values via object

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
