B.IQ push-button 4gang thermostat, display, KNX - B.IQ, al., al. anodised 75664594
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Labelling material for domestic switching devices 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Dimensions
-
Height149.20 mm
-
Width88.50 mm
-
Depth16.65 mm
Equipment
-
Number of actuation points10
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAluminium
-
RAL codeSimilar to RAL 9006
-
MaterialAluminium
-
Surface finishMatt
Accessories
-
Has labelling fieldNo
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions, With valve protection function, Button help function can be activated
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
ProtectionWith dismantling protection
-
TemperatureTemperature measurement via internal Temperature sensor and/or external communication object (weighting ratio parameterisable), Provision of the internal temperature value via communication object
Scope of delivery
-
Bus connection includedNo
Data act compliance
-
Is generating dataYes
-
Data typesGeneric KNX telegram, Temperature measurement, Thermostat
-
Data formatsKNX (TP)
-
Estimated daily data volume10 KB - 100 KB
-
Real time data generationYes
-
Data stored on deviceNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

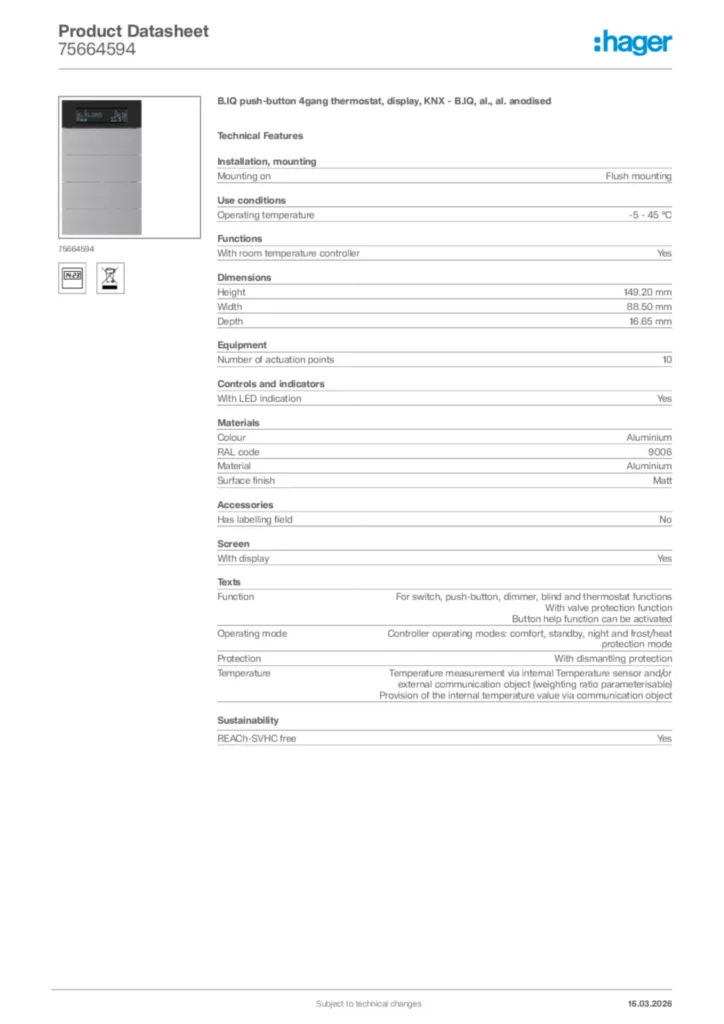

Hager Product data sheet 75664594
