    EAN
    5015652600503
    Packaging
    1 Piece
    • Invicta TP&N Boards

    250A 2+16 Way Hybrid TPN Board With Glazed Door JK20216BG

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    250A 2+16 Way Hybrid TPN Board With Glazed Door

    JK20216BG

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (19)
    • Cable entry cabinet 6 products available
    • Small equipped distri­bu­tion board 4 products available
    • Gland plate for enclosure 2 products available
    • Trans­ition cover section for install­a­tion duct 2 products available
    • Distrib­utor assembly with main switch 1 products available
    • Common Accessories 1 products available

    Complete your system

    • Cable entry cabinet
    • Small equipped distri­bu­tion board
    • Gland plate for enclosure
    • Trans­ition cover section for install­a­tion duct
    • Distrib­utor assembly with main switch
    • Common Accessories
    • Component for earth­ing/equi­po­ten­tial bonding
    • Busbar system for distri­bu­tion boards
    • Insert for lock system
    • JN206BE

      Large Extension Box, No Door
      0.00 €  / *
    • JN205BE

      Small Extension Box, No Door
      0.00 €  / *
    • JN203BEG

      Large DIN Rail Box Glazed
      0.00 €  / *
    • JN203BE

      Large DIN Rail Box Plain
      0.00 €  / *
    • JN201BEG

      Small DIN Rail Box Glazed
      0.00 €  / *
    • JN201BE

      Small DIN Rail Box Plain
      0.00 €  / *
    • JK22504M

      250A 4 Pole JK2 MCCB Incomer Kit
      0.00 €  / *
    • JK22504D

      250A 4 Pole JK2 Direct Incomer Kit
      0.00 €  / *
    • JK22503S

      250A 3 Pole JK2 Switch Incomer Kit
      0.00 €  / *
    • JK22503M

      250A 3 Pole JK2 MCCB Incomer Kit
      0.00 €  / *
    • JN2PLATE

      JN Endplate
      0.00 €  / *
    • JK2PLATEM

      Spare Gland Plate 1.2mm
      0.00 €  / *
    • JK06TK

      Trunking Kit for TPN 6"
      0.00 €  / *
    • JK04TK

      Trunking Kit for TPN 4"
      0.00 €  / *
    • JK21253M

      125A 3 Pole JK2 MCCB Incomer Kit
      0.00 €  / *
    • JKLABELPACK

      Spare Label Pack - All Sizes (One Pack)
      0.00 €  / *
    • JK030BEB

      Earth Bar Hi Int, 2 x 15 Connections
      0.00 €  / *
    • JN212BPA

      250A 12 Way Pan Assembly
      0.00 €  / *
    • JK222PK

      JK1/JK2 Door Lock Kit
      0.00 €  / *

    Technical properties

    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      250 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Capa­city
    • Number of modules
      48
    Dimen­sions
    • Height
      1,400 mm
    • Width
      465 mm
    • Depth
      165.50 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Key lock, Quarter turn lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    JK1 32 Module DIN Rail Box Glazed
    PDF
    5,81 MB
    Hager REACH declaration JK20216BG
    PDF
    Hager RoHS report JK20216BG
    PDF

    Downloads

    • Product image

      Image JK20216BG | Hager

      Product Image JK20216BG

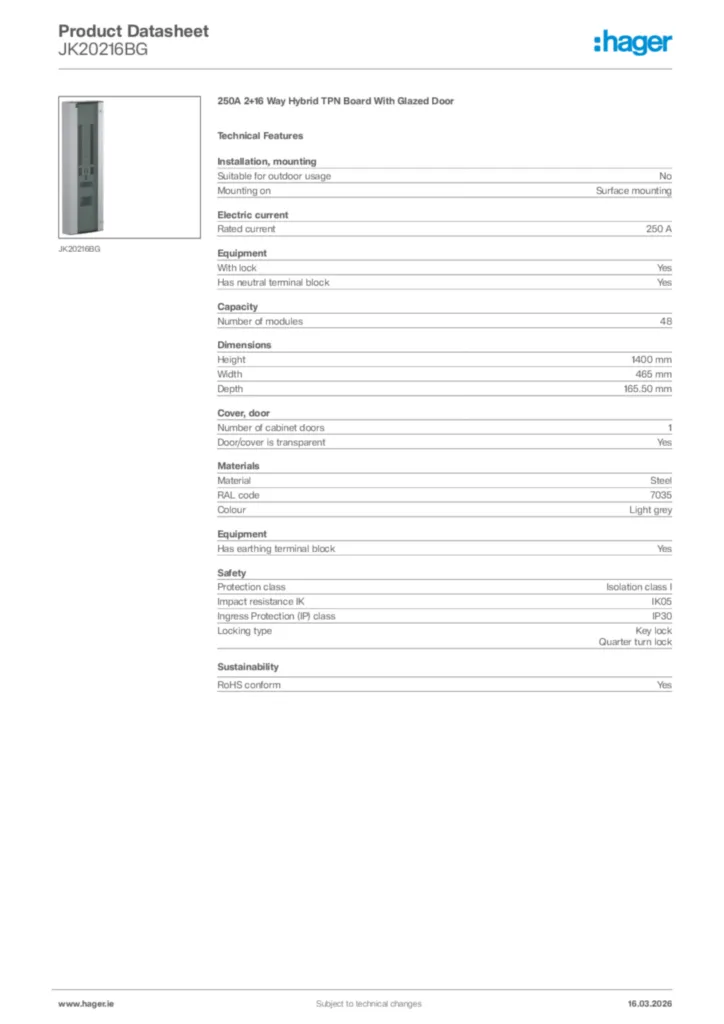

    • Product datasheet

      Image Hager Product data sheet JK20216BG | Hager

      Hager Product data sheet JK20216BG

      250A 2+16 Way Hybrid TPN Board With Glazed Door

      PDF

    • BIM Revit objects

      Image Range:Type B SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:Type B SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,18 MB
      Image Range:Type B SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:Type B SP&N Distribution Boards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,16 MB
      Image Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,09 MB
      Image Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,08 MB
      Image Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 hosted-V2021 | Hager

      Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,08 MB
      Image Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 no hosted-V2021 | Hager

      Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,07 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-09-29

      PDF
      276,98 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-09-29

      PDF
      269,32 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-07-12

      PDF
      180,39 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      302,50 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      296,11 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      278,56 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      288,18 kB
